Запчасти Bobcat CT335 FRAME ELECTRICAL SYSTEM GROUP 2 ELECTRICAL SYSTEM

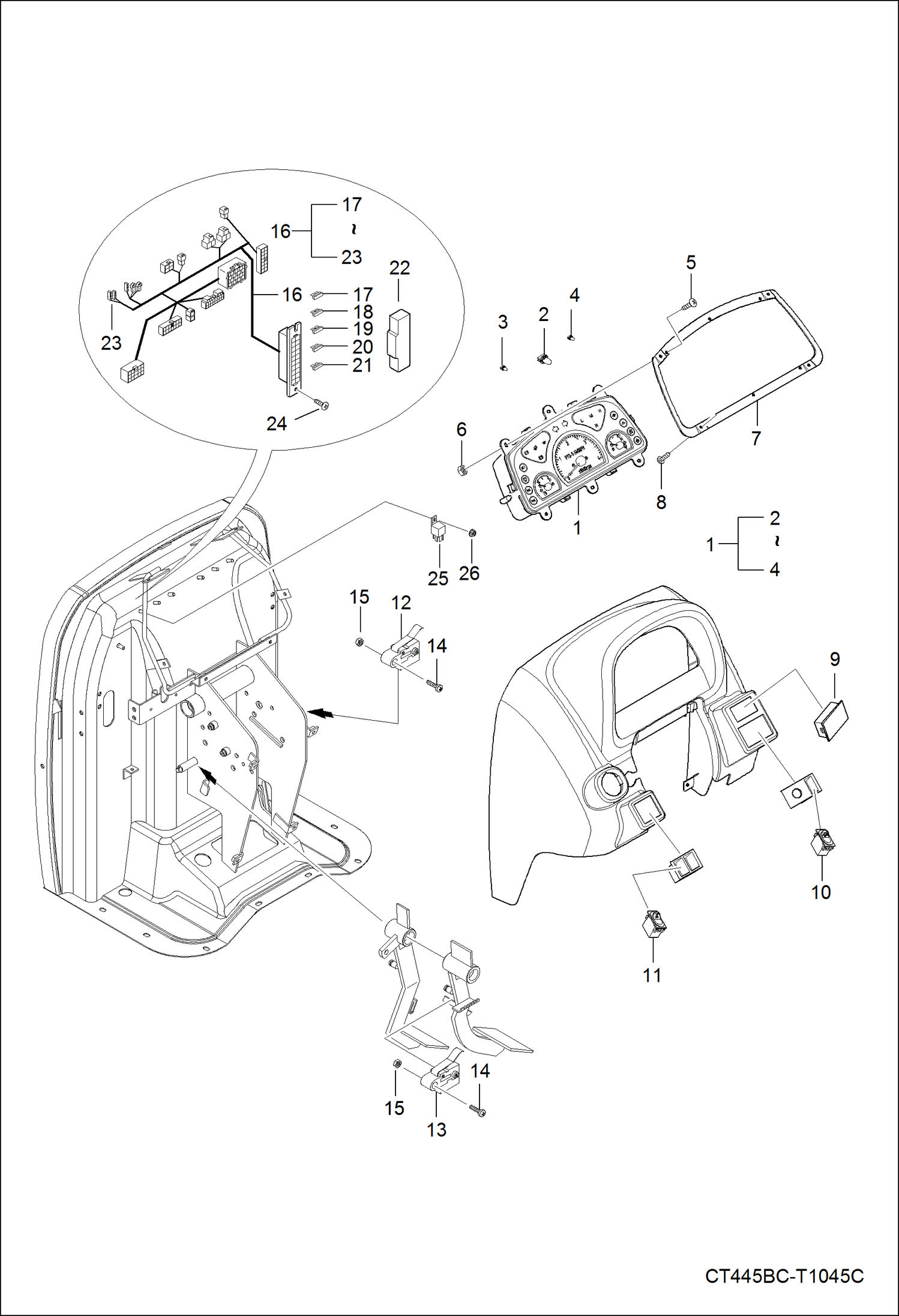

Схема запчастей Bobcat CT335 - FRAME ELECTRICAL SYSTEM GROUP 2 ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7002247

PANEL, INSTRUMENT Ref. 2-4

2

6697432

LIGHT, BULB 12V 34W

3

6695652

LIGHT, BULB 14V/ 14W

4

6697430

LIGHT

5

6694063

SCREW

6

6694037

NUT

7

7002002

FRAME, PANEL INSTRUMENT

8

6694386

SCREW

9

7002543

COVER

10

7002348

SWITCH, ROCKER

11

7002035

SWITCH, 4WD

12

7002937

SWITCH, MICRO Was 7002272 - D

13

7002273

SWITCH, MICRO

14

6694063

SCREW Was 6695564 - B

14

7002316

WASHER, PLAIN

15

6694037

NUT

15

6694090

WASHER SPRING

16

7003220

HARNESS, MFR

17

6654803

FUSE 5A

18

6654805

FUSE 10A

19

6654806

FUSE, 15A

20

6625575

FUSE, 20A Was 6694380 - A

21

6702444

FUSE 25A 5

22

6695815

COVER, FUSE BOX

23

7002136

ELECTRIC, DIODE

24

6695540

BOLT

25

6697557

RELAY - A

26

6696258

NUT FLANGE

Выбрано товаров: 28
