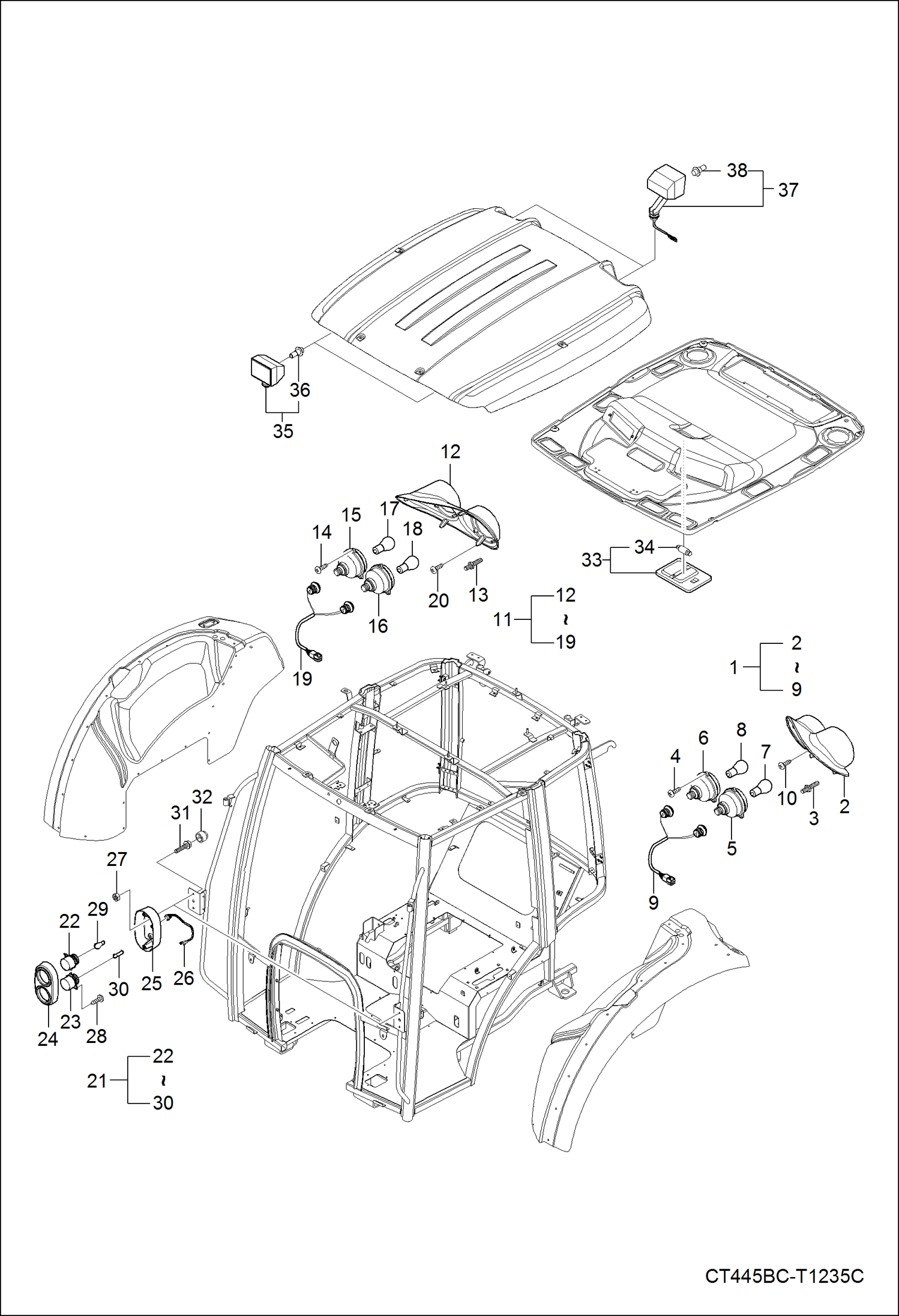

Запчасти Bobcat CT335 CAB LIGHT GROUP ELECTRICAL SYSTEM

1

7003137

LIGHT, TAIL LH Ref. 2-9

2

7003113

COVER, LIGHT LH

3

7002494

BOLT

4

6694386

SCREW

5

6696471

LIGHT, REAR TURN SIGNAL yellow

6

6697437

LIGHT, STOP TAIL red

7

6695646

LIGHT, BULB 12V P21W

8

6695645

LIGHT, BULB 12V P21/5W

9

7003135

HARNESS

10

7002646

SCREW

11

7003136

LIGHT, TAIL RH Ref. 12-19

12

7003109

COVER, LIGHT RH

13

7002494

BOLT

14

6694386

SCREW

15

6696471

LIGHT, REAR TURN SIGNAL yellow

16

6697437

LIGHT, STOP TAIL red

17

6695646

LIGHT, BULB 12V P21W

18

6695645

LIGHT, BULB 12V P21/5W

19

7003135

HARNESS

20

7002646

SCREW

21

7003293

LIGHT, FRONT ASSY Ref. 22-30

22

7003294

LIGHT, HAZARD

23

7003295

LIGHT, TAIL

24

7003290

COVER, HOUSING LIGHT

25

7003291

HOUSING, LIGHT

26

7003292

HARNESS

27

6694040

NUT

28

7003044

SCREW

29

7003062

LIGHT, BULB

30

6695650

LIGHT, BULB

31

6695557

BOLT, FLANGE

32

7003239

CAP, NUT

33

7003267

LIGHT, INTERIOR W/Ref. 34

34

7003227

LIGHT, BULB

35

7003296

LIGHT, WORK W/Ref. 36

36

7003232

LIGHT, BULB

37

LIGHT, WORK NLA - Order 7025085 light - Note different mount bracket will mount light 20mm higher than original - W/Ref. 38 - A

37

7025085

LIGHT, WORK

38

7003232

LIGHT, BULB
