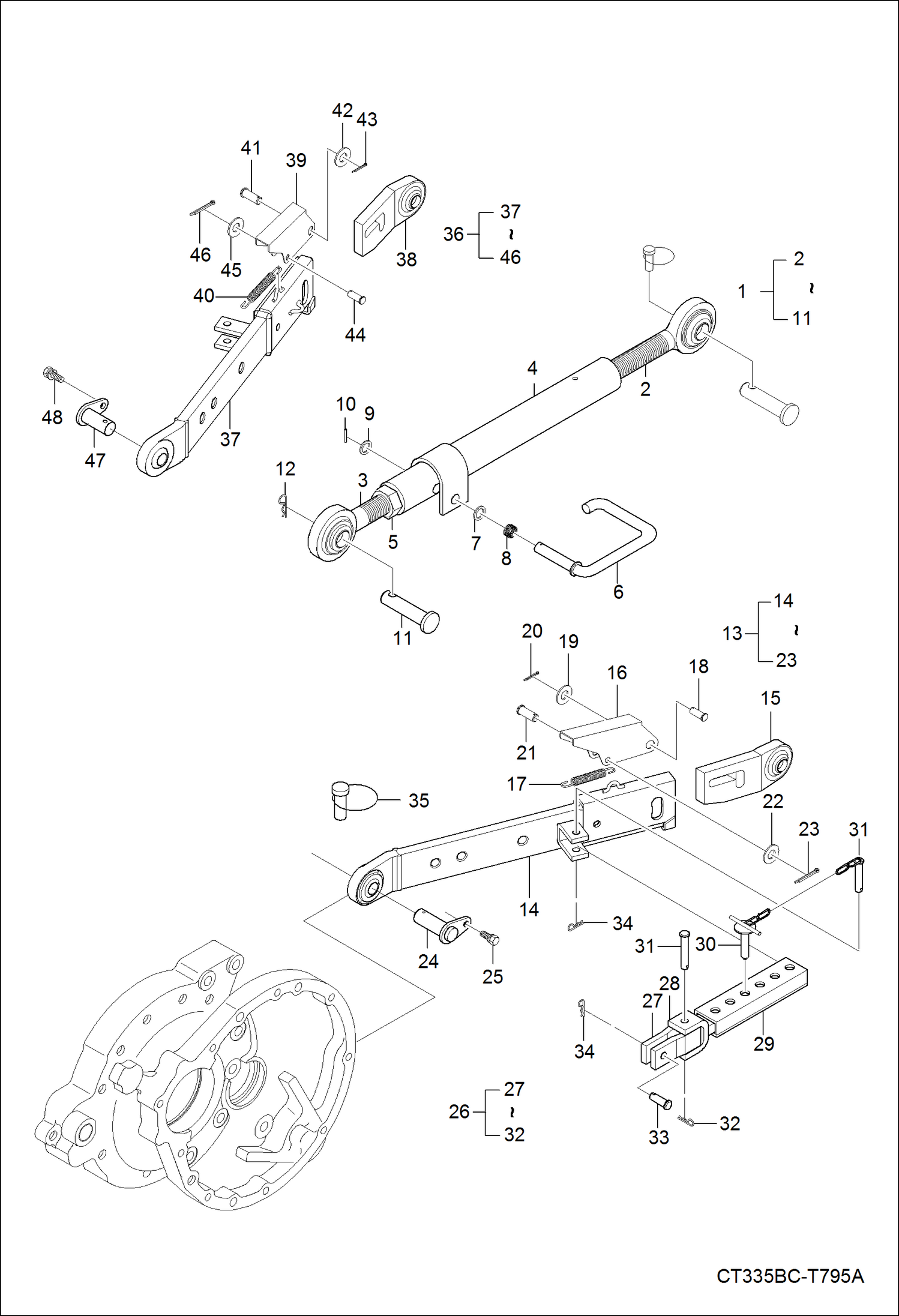

Запчасти Bobcat CT335 THREE POINT LINK SYSTEM GROUP 1 HYDRAULIC SYSTEM

1

7003246

LINK, TOP ASSY Ref. 2-11

2

6694356

JOINT, LINK TOP RH RH thread

3

6694357

JOINT, LINK TOP LH LH thread

4

7003235

LINK, TOP

5

7002585

NUT

6

7003247

HANDLE, GRIP

7

6694074

WASHER PLAIN

8

7003236

SPRING

9

6694074

WASHER PLAIN

10

7003046

PIN, SPRING

11

7002034

PIN, LINK

12

6694213

PIN SNAP

13

6697445

LINK, LOWER LH assy - Ref. 14-23

14

LINK, LOWER LH NLA - Order Ref. 13 - Was 7002264 - A

15

7001961

HOUSING, LOWER LINK LH

16

7002537

COVER

17

6696745

SPRING

18

6696345

PIN

19

6696915

WASHER PLAIN

20

6696918

PIN, SPLIT

21

6696363

PIN JOINT

22

6696912

WASHER PLAIN

23

6696380

PIN SPLIT

24

6696368

PIN, LINK LOWER

25

6697053

BOLT

26

7001973

BAR, SWAY ASSY assy - Ref. 27-32

27

6695354

BRACKET

28

6695294

BRACKET ASSY

29

7002575

HOUSING

30

6697347

PIN LOCK 1 pin W/chain

31

6696365

PIN JOINT

32

6696375

PIN SNAP

33

6696329

PIN

34

6696372

PIN SNAP

35

6697495

PIN, SET

36

6697446

LINK, LOWER RH assy - Ref. 37-46

37

LINK, LOWER RH NLA - Order Ref. 36 - Was 7002265 - A

38

7002262

HOUSING, LINK LOWER RH

39

7002537

COVER

40

6696745

SPRING

41

6696345

PIN

42

6696915

WASHER PLAIN

43

6696918

PIN, SPLIT

44

6696363

PIN JOINT

45

6696912

WASHER PLAIN

46

6696380

PIN SPLIT

47

6696368

PIN, LINK LOWER

48

6697053

BOLT
