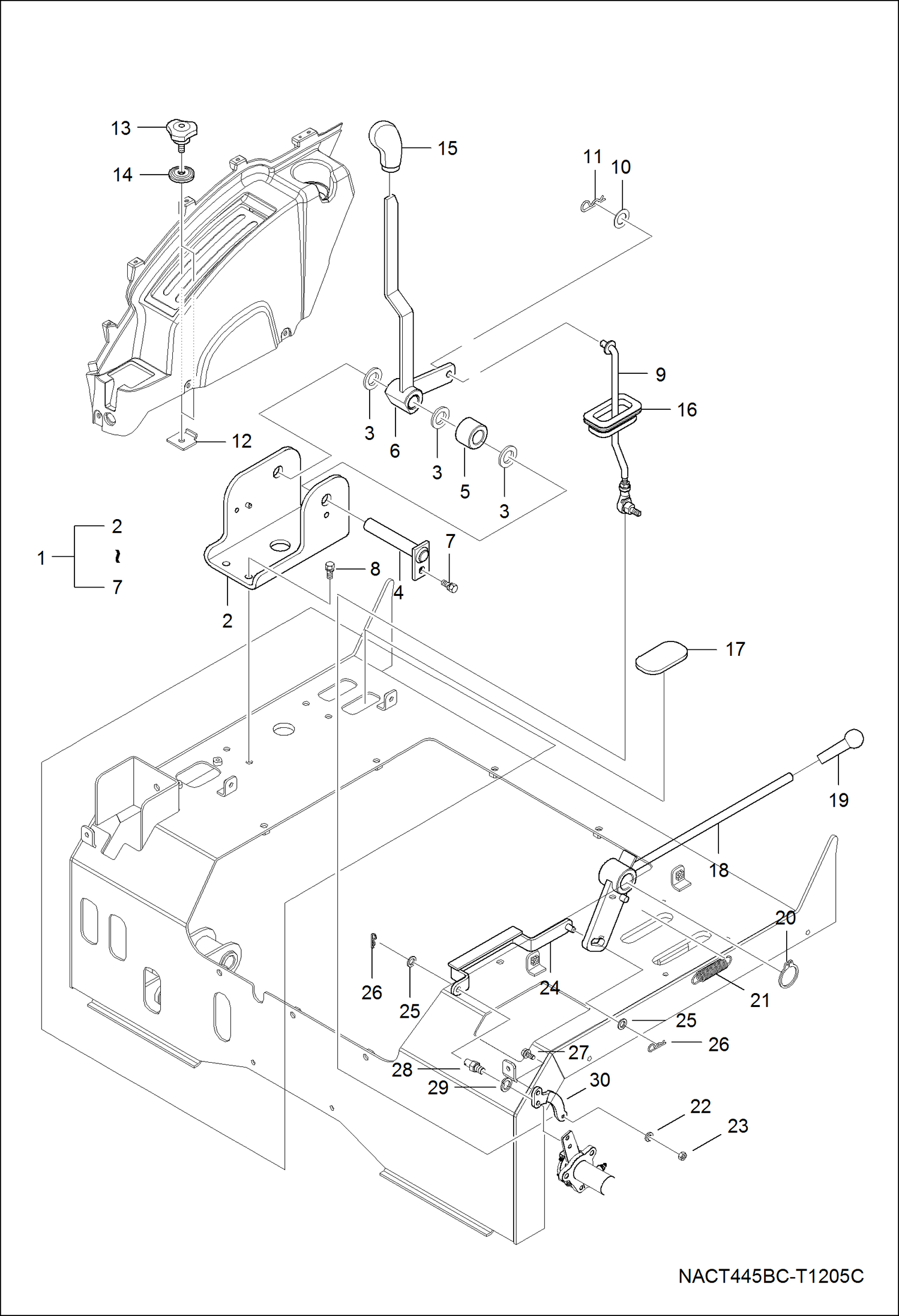

Запчасти Bobcat CT335 POSITION CONTROL LEVER GROUP 1 HYDRAULIC SYSTEM

1

7003218

LEVER, HYD ASSY Ref. 2-7

2

7002506

BRACKET

3

6696901

WASHER

4

7002659

SHAFT

5

7002934

SPACER

6

7003117

LEVER

7

6697053

BOLT

8

6697054

BOLT

9

7003118

ROD

10

6694079

WASHER PLAIN

11

6694211

PIN, SNAP

12

7003281

STOP, LEVER

13

6694822

BOLT GRIP

14

7003254

WASHER

15

6697300

HANDLE GRIP

16

7003416

BOOT, RUBBER Was 7003119 - A

17

7003415

COVER, RUBBER

18

7003120

LEVER, CONTROL

19

7002209

GRIP, HANDLE

20

6694107

RING SNAP

21

7002306

SPRING, PEDAL LOCK

22

6694092

WASHER SPRING

23

6694040

NUT

24

7003121

ARM, FEEDBACK

25

6694079

WASHER PLAIN

26

6694211

PIN, SNAP

27

6697053

BOLT

28

7002661

SHAFT

29

6697775

WASHER SPRING

30

7002580

LEVER See Illustration HYDRAULIC CYLINDER ASSY GROUP/ EX35JP-T635A
