Запчасти Bobcat CT335 HST CONTROL GROUP DRIVE TRAIN

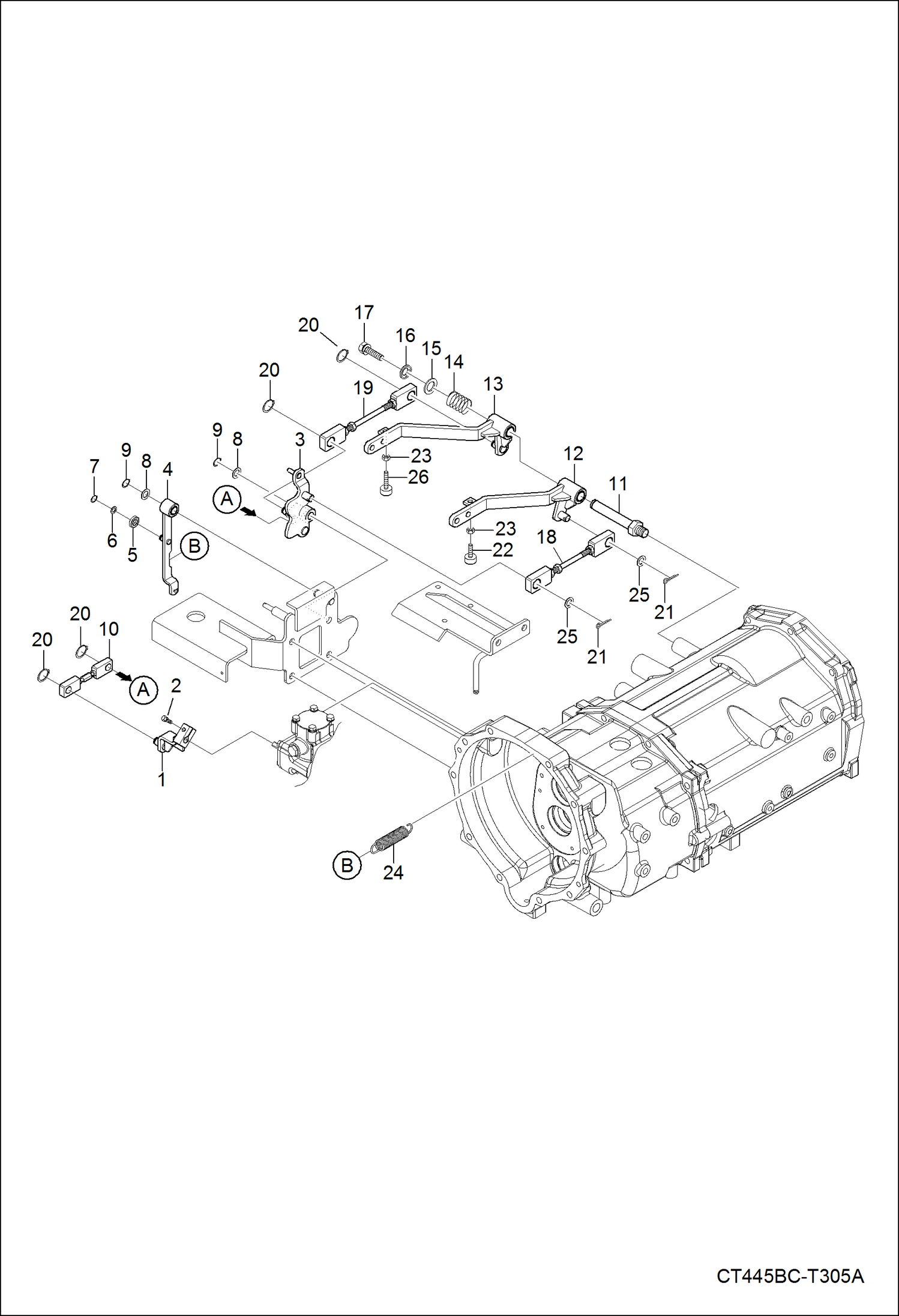

Схема запчастей Bobcat CT335 - HST CONTROL GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7002578

LEVER

2

6695592

BOLT HEXAGON SOCKET

3

7002512

BRACKET

4

7002623

LEVER

5

7002470

BEARING

6

6694074

WASHER PLAIN

7

6697560

RING SNAP

8

6696913

WASHER, PLAIN

9

6696494

RING SNAP

10

7002640

ROD

11

7021779

SHAFT STAY PEDAL

12

7002009

ARM, PEDAL LH

13

7002024

ARM, PEDAL RH

14

7021776

SPRING

15

6694088

WASHER PLAIN

16

7021777

WASHER

17

6697053

BOLT

18

7002258

ROD, LH

19

7002345

ROD, RH

20

6696494

RING SNAP

21

6696372

PIN SNAP Was 7002383 - B,D

22

6695189

BOLT ADJUSTMENT

23

6694053

NUT

24

7002088

SPRING, BRAKE

25

7002703

WASHER

26

7021778

BOLT ADJUSTING

Выбрано товаров: 26
