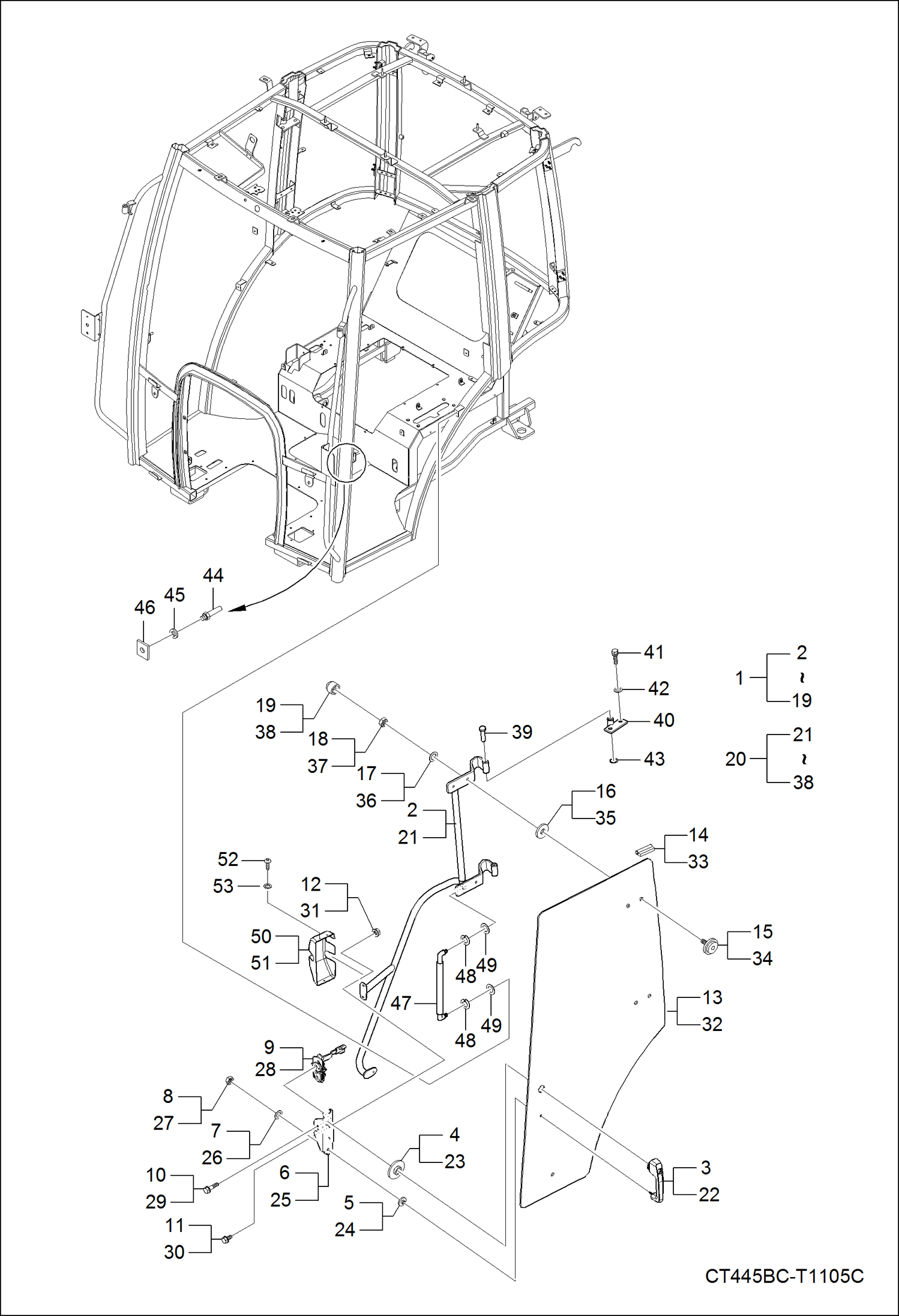

Запчасти Bobcat CT335 OPERATOR CAB (Doors) MAIN FRAME

1

7003173

DOOR, CAB ASSY LH - Ref. 2-19

2

7003175

FRAME, DOOR CAB LH

3

7016961

HANDLE, DOOR CAB Was 7003286 - D

4

7003312

WASHER, CUSHION

5

7003313

WASHER, CUSHION

6

7003310

LATCH, LH

7

6694087

WASHER PLAIN

8

6696237

NUT

9

7003287

LATCH, DOOR CAB LH

10

7000810

BOLT, FLANGE

11

6695558

BOLT FLANGE

12

6696258

NUT FLANGE

13

7003152

WINDOW, DOOR CAB LH

14

7003169

SEAL, RUBBER

15

7003234

BOLT, CUSHION

16

7003228

WASHER, CUSHION

17

6697774

WASHER

18

6694053

NUT Was 6697460 - A

19

6695694

CAP, NUT

20

7003174

DOOR, CAB ASSY RH - Ref. 21-38

21

7003176

FRAME, DOOR CAB RH

22

7016961

HANDLE, DOOR CAB Was 7003286 - D

23

7003312

WASHER, CUSHION

24

7003313

WASHER, CUSHION

25

7003311

LATCH, RH

26

6694087

WASHER PLAIN

27

6696237

NUT

28

7003288

LATCH, DOOR CAB RH

29

7000810

BOLT, FLANGE

30

6695558

BOLT FLANGE

31

6696258

NUT FLANGE

32

7003153

WINDOW, DOOR CAB RH

33

7003169

SEAL, RUBBER

34

7003234

BOLT, CUSHION

35

7003228

WASHER, CUSHION

36

6697774

WASHER

37

6694053

NUT Was 6697460 - A

38

6695694

CAP, NUT

39

7003259

PIN, HINGE

40

7003263

HINGE, DOOR

41

6693991

BOLT 10 mm x 25 mm long

41

6693982

BOLT 10 mm x 30 mm long

42

6696911

WASHER, PLAIN

43

7003045

CIRCLIP

44

7003231

BOLT, STRIKER

45

7021094

PLATE, PROTECTION Was 6696911 - B

46

7003264

NUT

47

7010222

GAS SPRING Was 7003309 - C

48

6697774

WASHER

49

6697775

WASHER SPRING

50

7003300

COVER, LATCH LH

51

7003301

COVER, LATCH RH

52

6695563

SCREW 4 mm x 12 mm long

52

7021095

SCREW 4 mm x 16 mm long

53

7002316

WASHER, PLAIN
