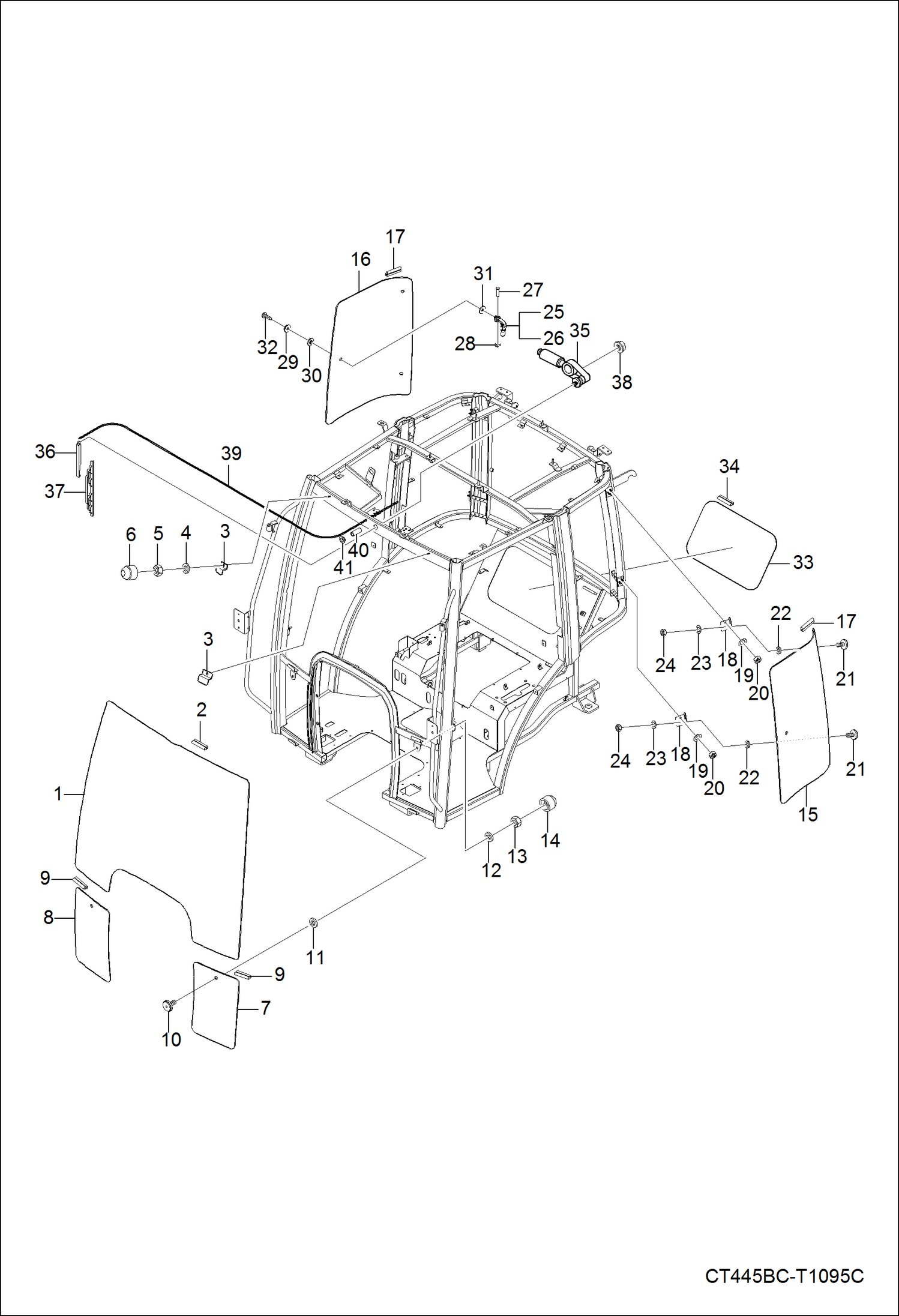

Запчасти Bobcat CT335 OPERATOR CAB (Front Window) MAIN FRAME

1

7003149

WINDOW, CAB FRONT

2

7003167

SEAL, RUBBER

3

7003244

BRACKET

4

6697779

WASHER

5

6694040

NUT

6

7003239

CAP, NUT

7

7003150

WINDOW, FRONT LOWER LH

8

7003151

WINDOW, FRONT LOWER RH

9

7003168

SEAL, RUBBER

10

7003233

BOLT, CUSHION

11

7003228

WASHER, CUSHION

12

6697774

WASHER

13

6694053

NUT

14

6695694

CAP, NUT

15

7003154

WINDOW, CAB HINGED

16

7003155

WINDOW, CAB HINGED

17

7003170

SEAL, RUBBER

18

7003195

HINGE, WINDOW

19

6697774

WASHER

20

6696249

NUT Was 6694053 - B

21

7003233

BOLT, CUSHION

22

7003228

WASHER, CUSHION

23

6697774

WASHER

24

6694053

NUT

25

7003317

HANDLE, GRIP LH

26

7003318

HANDLE, GRIP RH

27

7003305

PIN, JOINT

28

6694119

RING SNAP

29

7021062

WASHER Was 7003306 - D

30

7003307

WASHER, CUSHION

31

7003308

WASHER, CUSHION

32

7003042

SCREW

33

7003157

WINDOW, REAR LOWER

34

7003171

SEAL, RUBBER

35

7003297

MOTOR, WIPER

36

7003268

ARM, WIPER

37

7003282

BLADE, WIPER

38

6694062

NUT FLANGE

39

7003299

HOSE, RUBBER

40

7003240

CAP, RUBBER

41

7003241

GROMMET
