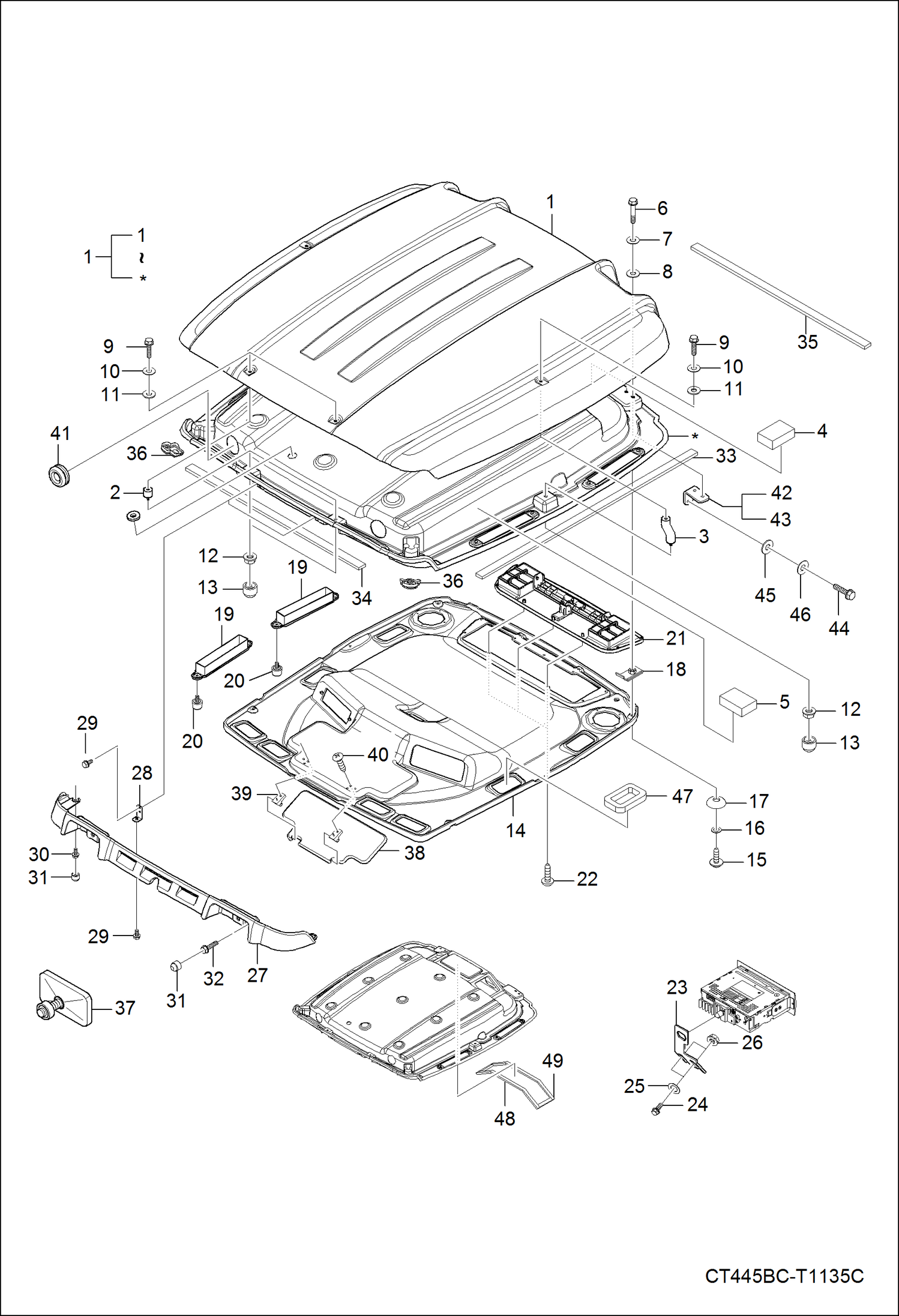

Запчасти Bobcat CT335 OPERATOR CAB (Top) MAIN FRAME

1

7009243

CAB, ROOF ASSY Was 7003140 - A

1

PANEL, CAB OUTER NSS - Order 7009243 cab roof assy - Was 7003145 - A

1

PANEL, CAB INNER NSS - Order 7009243 cab roof assy - Was 7003144 - A

2

7009251

SPACER Was 7003187 - A

2

7003189

WASHER

3

7003188

SPACER

4

7003141

FOAM

5

7003142

FOAM

6

6695569

BOLT FLANGE

7

7009252

WASHER, SEALING Was 7003229 - A

8

6694088

WASHER PLAIN

9

7002481

BOLT

10

7009252

WASHER, SEALING Was 7003229 - A

11

6694088

WASHER PLAIN

12

7002174

NUT, FLANGE

13

6695694

CAP, NUT

14

7003146

HEADLINER

15

7003041

SCREW

16

6697779

WASHER

17

7009247

CAP, RUBBER

18

7003049

NUT

19

7003147

FILTER, AIR CAB

20

7003051

BOLT

21

7003179

VENT, AIR

22

7003289

SCREW

23

7009250

BRACKET

24

6695558

BOLT FLANGE

25

6697779

WASHER

26

6696258

NUT FLANGE

27

7003148

COVER, CAB

28

7003186

BRACKET

29

6695557

BOLT, FLANGE

30

6695558

BOLT FLANGE

31

7003239

CAP, NUT

32

7003429

SCREW

33

7003182

PAD, SEALING SIDE

34

7003183

PAD, SEALING FRONT

35

7003185

PAD, SEALING REAR

36

7003184

CAP, SEALING

37

7003260

MIRROR, REAR VIEW

38

7003298

VISOR, SUN GRAY

38

7009242

VISOR, SUN BLACK

39

7009253

BRACKET, SUN VISOR

40

7009241

BOLT

41

7003143

GROMMET

42

7009248

BRACKET, LH

43

7009249

BRACKET, RH

44

6695569

BOLT FLANGE

45

7003229

WASHER, CUSHION

46

6694088

WASHER PLAIN

47

7009244

FOAM, SPONGE

48

7009245

FOAM, SPONGE

49

7009246

FOAM, SPONGE
