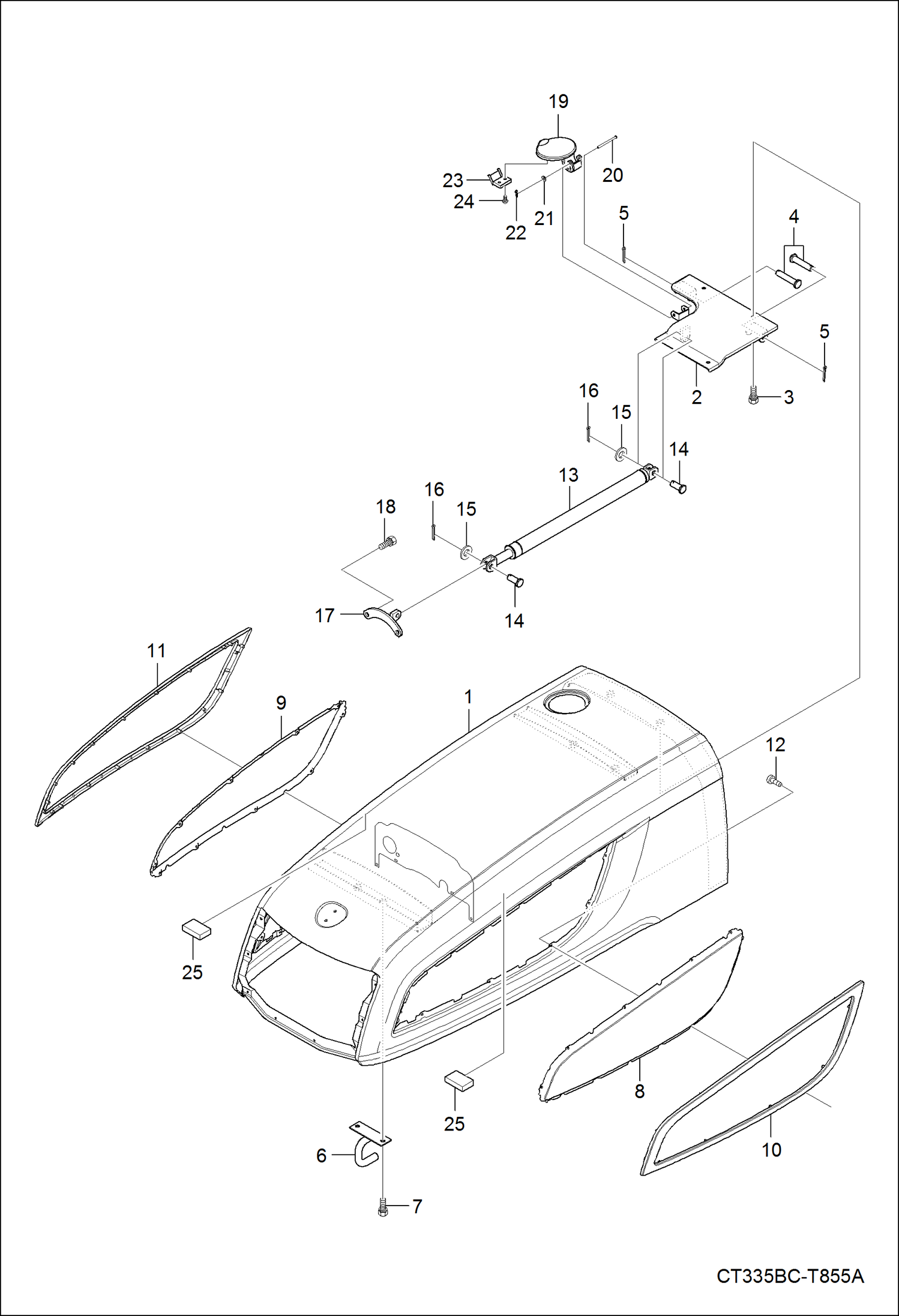

Запчасти Bobcat CT335 HOOD (Engine) MAIN FRAME

1

7010616

COVER, HOOD Was 7002044 - A

2

7002080

HINGE, COVER

3

6694027

BOLT FLANGE

4

7002248

PIN, JOINT

5

6694212

PIN SNAP

6

7002962

HOLDER, HOOD

7

6694028

BOLT FLANGE Was 7002480

8

7002259

SCREEN, LH

9

7002346

SCREEN, RH

10

7002378

FRAME, SIDE LH

11

7002381

FRAME, SIDE RH

12

6697611

SCREW

13

7002040

GAS SPRING

14

6694186

PIN JOINT

15

6697780

WASHER

16

6694212

PIN SNAP

17

7003068

SUPPORT, CYLINDER

18

6693979

BOLT

19

6695838

COVER, FUEL

20

6696357

PIN JOINT

21

6697779

WASHER

22

6694214

PIN SNAP Was 6696373 - A

23

6695731

CLIP

24

6697611

SCREW

25

6695126

FOAM
