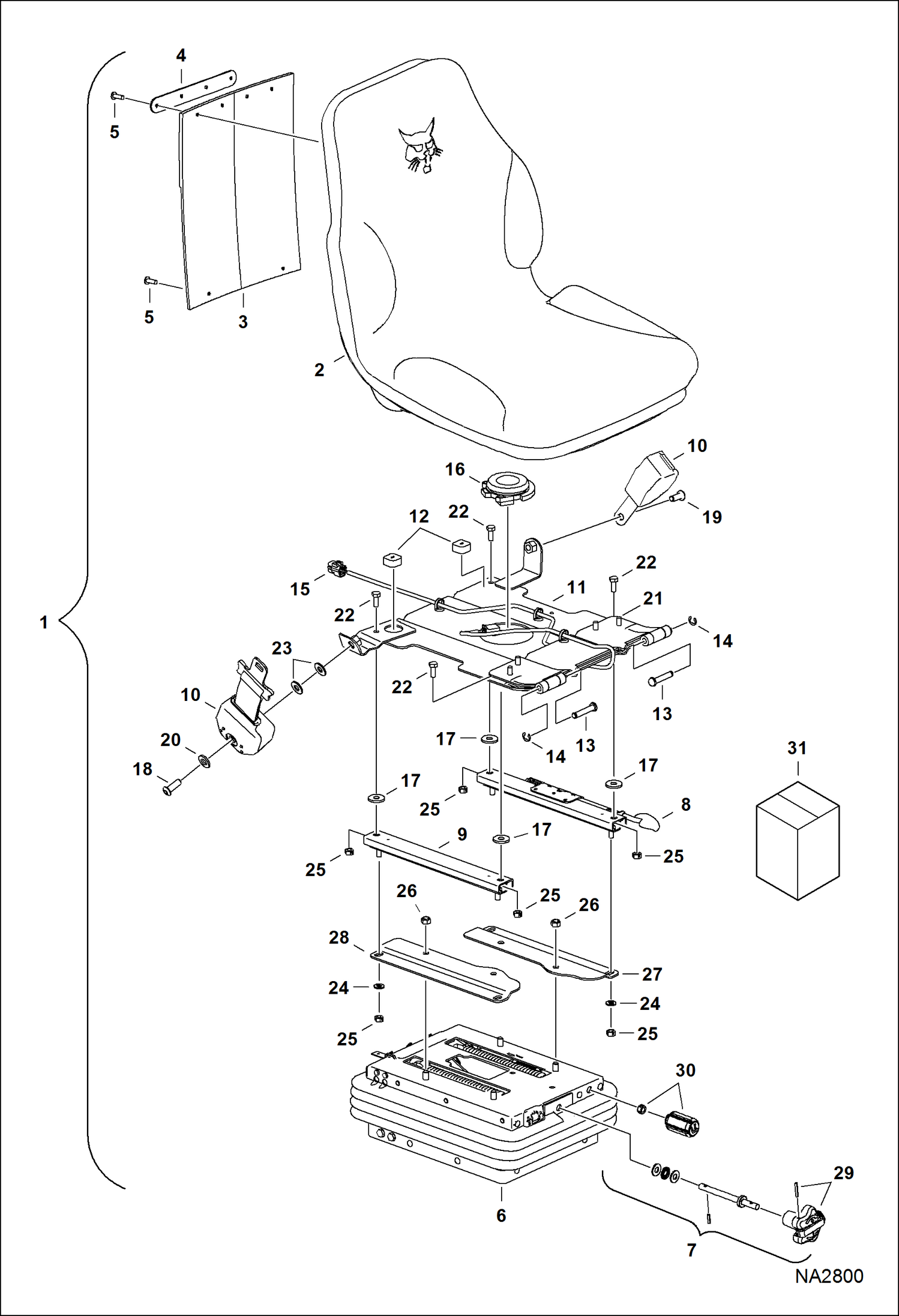

Запчасти Bobcat CT335 OPERATOR SEAT (Cloth) MAIN FRAME

1

7013130

SEAT, OPERATOR SUSPENSION CLOTH Ref. 2-31

2

7020380

SEAT CLOTH

3

7020382

HOLDER MANUAL

4

7020383

SUPPORT HOLDER

5

7020384

RIVET

6

7020351

KIT, SUSPENSION ASSY W/Ref. 7

7

7020239

KIT, KNOB W/CRANK W/Ref. 28 & 29

8

SLIDE NLA - adjuster W/handle - Order Ref. 31 slide kit

9

SLIDE NLA - slave - Order Ref. 31 slide kit

10

7010207

BELT, SEAT set

11

7010204

PLATE seat tilt - W/Ref. 12-15

12

7010219

BUMPER, RUBBER

13

7010216

PIN

14

7010217

CLIP

15

7010218

HARNESS

16

7010213

SENSOR, SEAT

17

6683864

WASHER

18

27CM1030

BOLT

19

27CM1025

BOLT

20

6683865

WASHER

21

1CM816

BOLT

22

1CM820

BOLT

23

7010212

WASHER

24

7010211

WASHER

25

7010210

NUT, LOCK

26

86D6

NUT

27

BRACKET, LH NSS

28

BRACKET, RH NSS

29

7015529

KNOB, ADJUSTMENT WEIGHT

30

7020241

KNOB, ADJUSTMENT HEIGHT

31

6692546

SLIDE KIT Ref. 8 & 9
