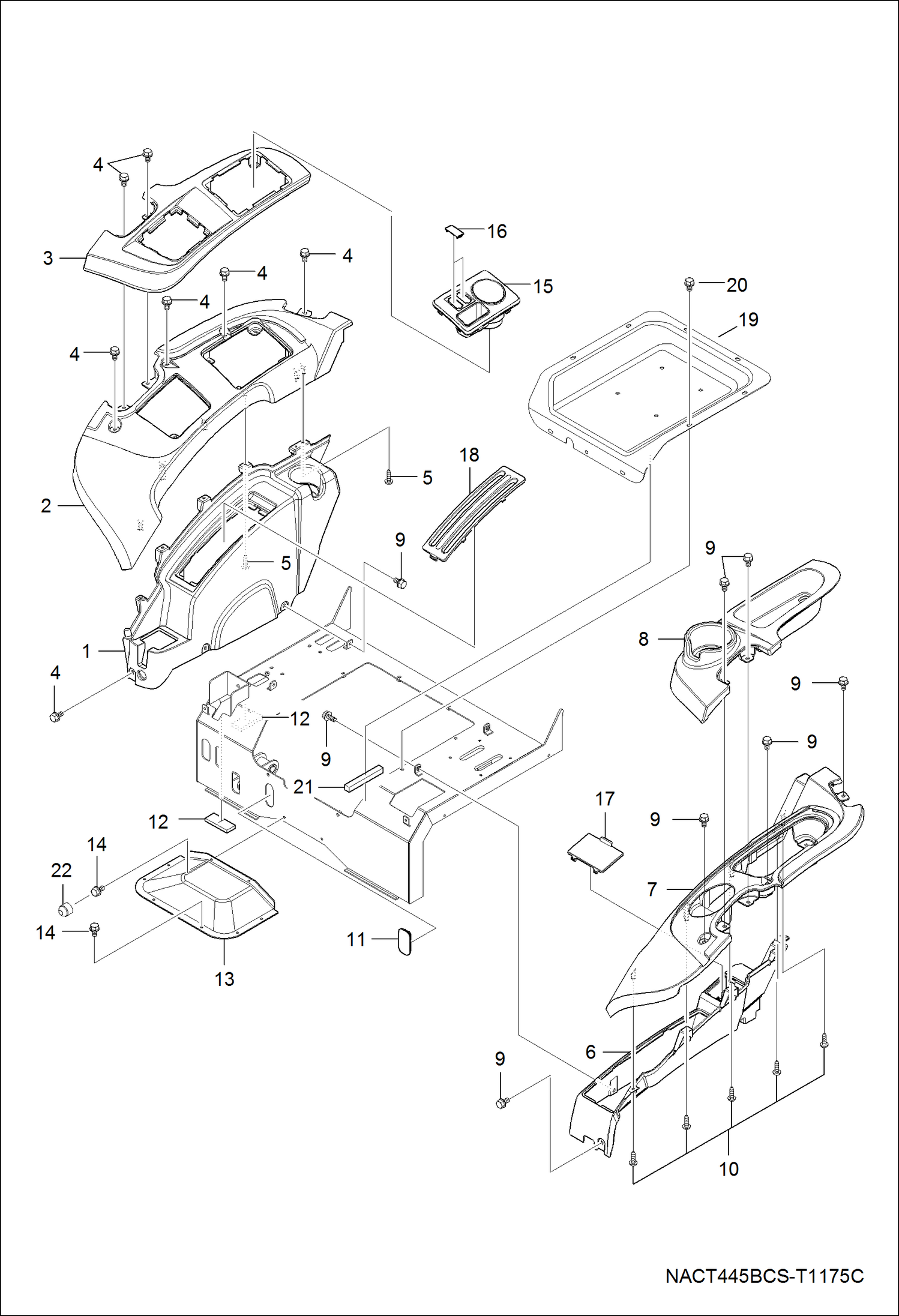

Запчасти Bobcat CT335 SEAT SUPPORT GROUP MAIN FRAME

1

7003104

GUIDE, LEVER RH

2

7003105

CONSOLE, RH

3

7003106

COVER, CONSOLE

4

6695586

BOLT FLANGE

5

7003289

SCREW

6

7003110

GUIDE, LEVER LH

7

7003111

CONSOLE, LH

8

7003112

COVER, CONSOLE

9

6695586

BOLT FLANGE

10

7003289

SCREW

11

7002540

COVER Was 7003238 - A

12

7003126

FOAM

13

7003139

COVER

14

6695586

BOLT FLANGE

15

7003128

HOLDER, CUP

16

7003253

COVER, SWITCH

17

7003108

COVER, FUSE BOX

18

7003418

COVER

19

7003226

SUPPORT, SEAT Was 7002029 - B

20

6695570

BOLT, FLANGE

21

7003133

FOAM

22

7003215

CAP
