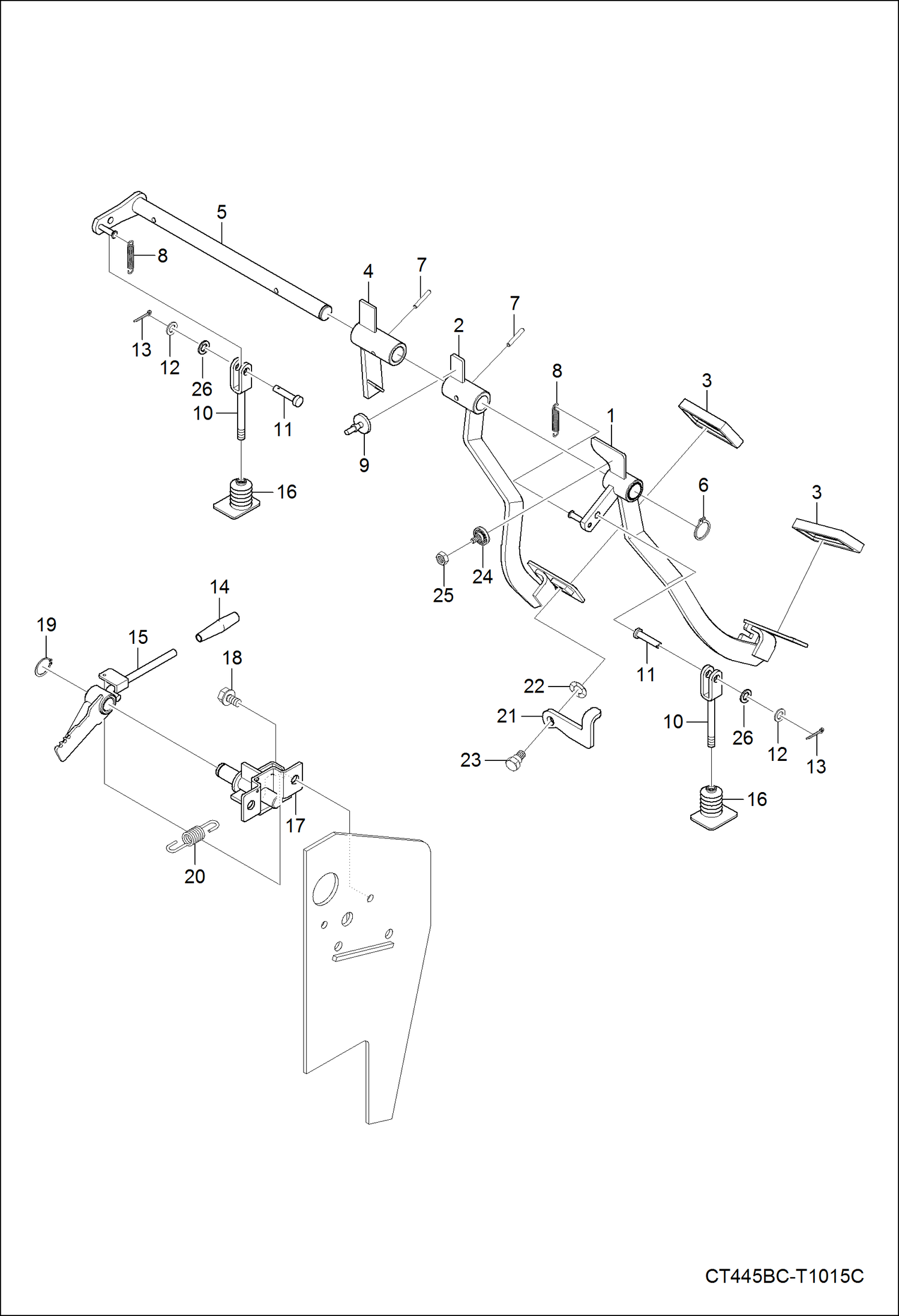

Запчасти Bobcat CT335 BRAKE PEDAL GROUP MAIN FRAME

1

7002083

PEDAL, BRAKE LH

2

7002084

PEDAL, BRAKE RH

3

6695842

COVER, PEDAL RUBBER

4

7002302

HOLDER, PEDAL

5

7002305

SHAFT, PEDAL

6

6694110

RING SNAP

7

6694203

PIN SPRING

8

6695194

SPRING, PEDAL CLUTCH

9

7002357

BUMPER, RUBBER

10

7002087

ROD, BRAKE

11

6696361

PIN JOINT

12

6697780

WASHER

13

6694206

PIN SPLIT

14

6695191

HANDLE GRIP

15

7002365

LEVER, SET

16

7002356

BOOT, RUBBER

17

7002930

BRACKET, LEVER Was 7002015

18

6697059

BOLT

19

7002385

RING, SNAP

20

7002928

SPRING, RETURN Was 6694401 - B

21

7002108

LEVER, CONNECTING

22

7002674

SPRING

23

7002488

BOLT

24

6695189

BOLT ADJUSTMENT

25

6694053

NUT

26

7003392

WASHER
