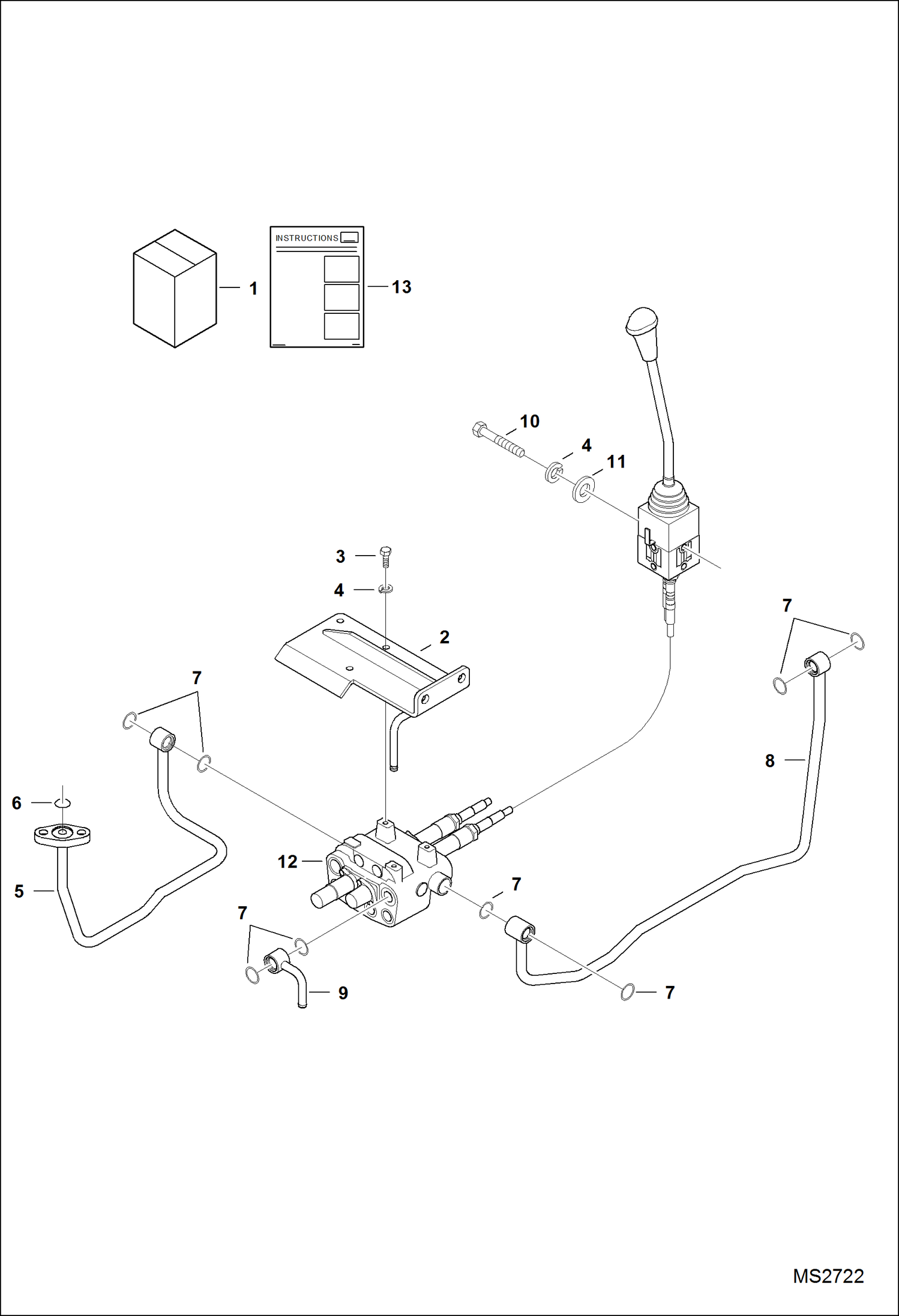

Запчасти Bobcat CT335 JOYSTICK VALVE KIT ACCESSORIES & OPTIONS

1

KIT, JOYSTICK VALVE NLA - W/Walvoil valve - Ref. 2-13 - Order 7199761 - Was 7170738 - A

1

7199761

KIT, JOYSTICK VALVE W/Hydrotech valve - Ref. 2-13

2

7002441

BRACKET, VALVE

3

6695575

BOLT

4

6697775

WASHER SPRING

5

7002236

TUBELINE, HYD

6

6694136

O-RING

7

6694137

O-RING

8

7002235

TUBELINE, HYD

9

7002231

TUBELINE, HYD

10

6695525

BOLT

11

6697774

WASHER

12

VALVE, JOYSTICK ASSY See Illustration JOYSTICK VALVE GROUP/ CT335B-T765A - NLA - Order individual components - Was 7002251 - A

12

VALVE, JOYSTICK ASSY See Illustration JOYSTICK VALVE GROUP/ CT335B-T765A - NLA - W/Hydrotech valve - Order individual components

13

6987097

INSTRUCTIONS
