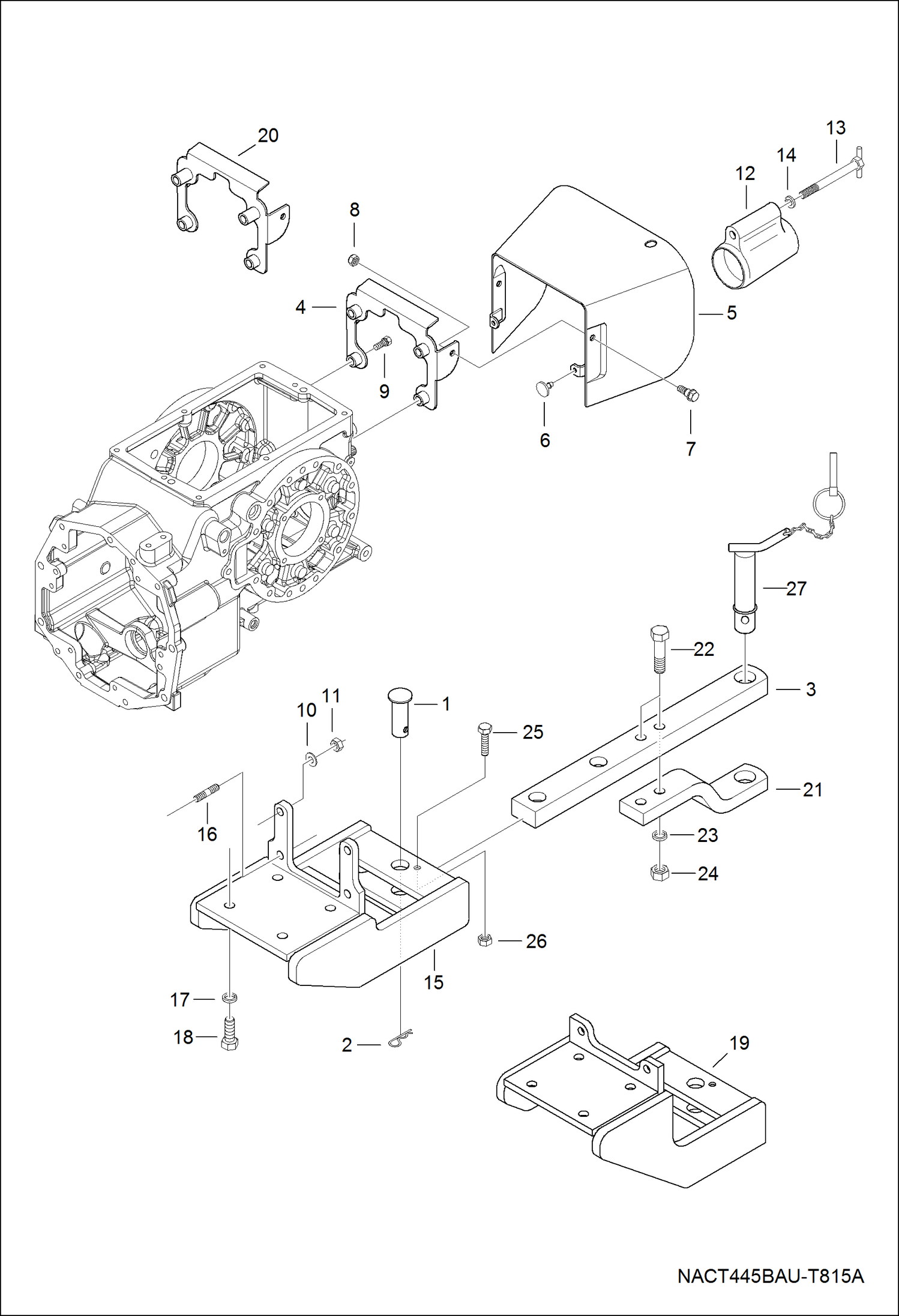

Запчасти Bobcat CT335 AUSTRALIAN ACCESSORIES (Drawbar Group) ACCESSORIES & OPTIONS

1

7002249

PIN, JOINT

2

6696376

PIN SNAP

3

7002547

DRAWBAR

4

7002931

BRACKET, COVER PTO SHIELD Use W/Ref. 15

5

6697173

COVER, PTO SHIELD

6

6697137

HOUSING CASEING

7

6697612

SCREW

8

6697860

NUT

9

6693989

BOLT

10

6697776

WASHER SPRING

11

6694060

NUT

12

6694362

COVER

13

6694361

BOLT

14

6697780

WASHER

15

7002883

FRAME, SWING DRAWBAR Use W/Ref. 4

16

7002685

STUD

17

6694094

WASHER SPRING

18

6694001

BOLT

19

7002138

FRAME, DRAWBAR Use W/Ref. 20

20

7002018

BRACKET, SHIELD PTO Use W/Ref. 19

21

7002517

BRACKET

22

7002492

BOLT

23

6694095

WASHER SPRING

24

6694045

NUT

25

6693995

BOLT

26

6694059

NUT

27

7021794

PIN
