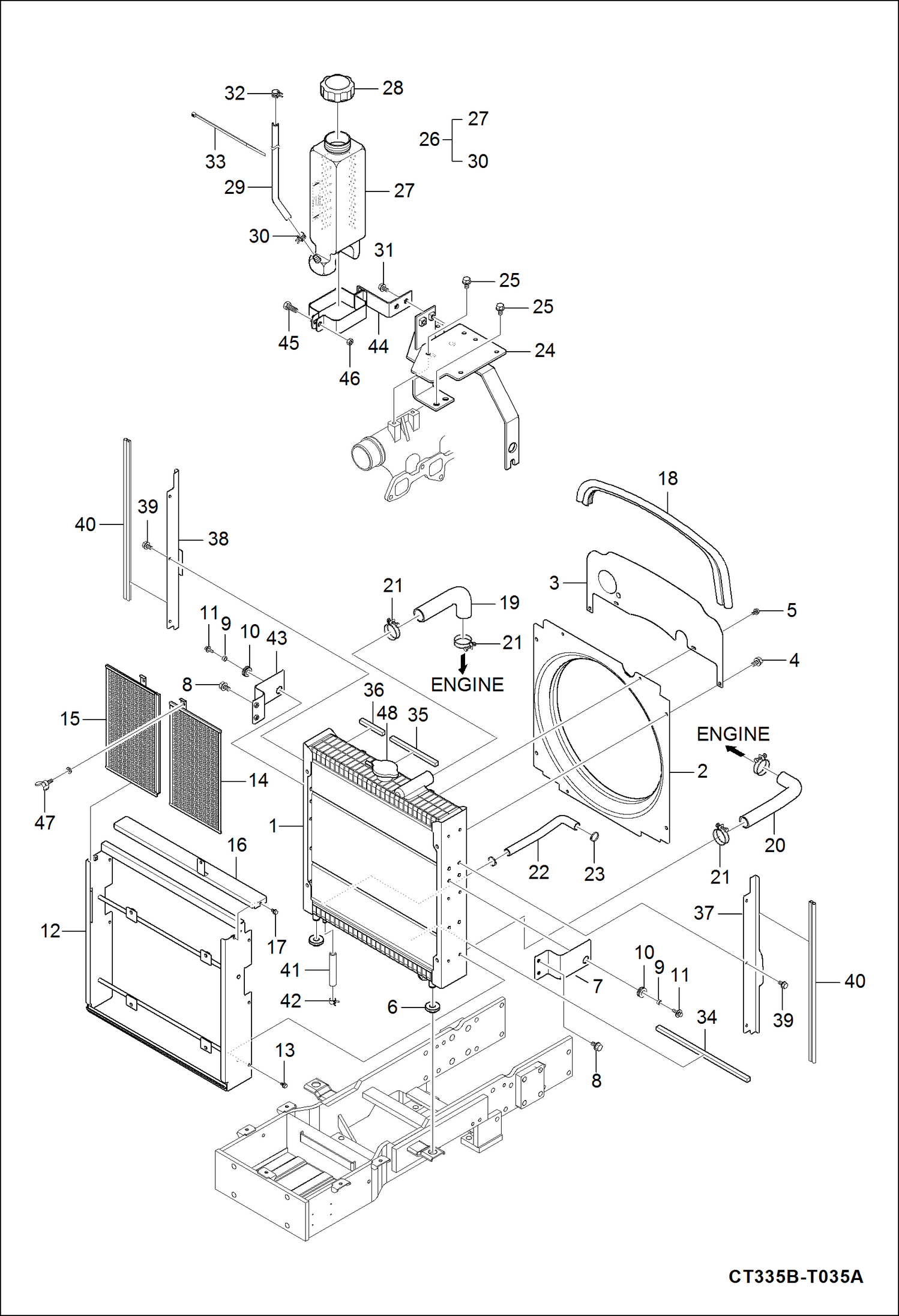

Запчасти Bobcat CT335 RADIATOR GROUP POWER UNIT

1

7013126

EXCHANGER, WATER RADIATOR W/Ref. 48 - Was 7002450 - A

2

7002163

SHROUD, FAN

3

7002622

PLATE

4

6695586

BOLT FLANGE

5

6695570

BOLT, FLANGE

6

7000278

CUSHION

7

7002158

BRACKET, EXCHANGER

8

6695569

BOLT FLANGE

9

6695127

SPACER

10

6695128

GROMMET

11

6693977

BOLT

12

7002282

GUIDE, NET

13

6695586

BOLT FLANGE

14

7002129

SCREEN, DEBRIS

15

7002130

SCREEN, DEBRIS

16

7002536

COVER

17

6695586

BOLT FLANGE

18

7002652

SEAL

19

7001991

HOSE, WATER FORMED

20

7001992

HOSE, WATER FORMED

21

6695444

CLAMP HOSE

22

7001990

HOSE, HEATER FORMED

23

7012856

CLAMP, HOSE Was 7000282 - A

24

7002503

BRACKET

25

6697053

BOLT

26

7002449

TANK, WATER assy - Ref. 27-30

27

7002294

TANK, WATER

28

7002187

CAP

29

7002216

HOSE, HEATER

30

7002218

CLAMP, HOSE

31

6694027

BOLT FLANGE

32

6694323

CLAMP, HOSE

33

6695446

BAND

34

7002550

FOAM

35

7002551

FOAM

36

7002552

FOAM

37

7002376

COVER, SIDE LH

38

7002379

COVER, SIDE RH

39

6695586

BOLT FLANGE

40

7002653

SEAL

41

7000815

HOSE 1, FUEL

42

6694297

CLAMP, HOSE Was 7002219 - A

43

7002159

BRACKET, EXCHANGER

44

7002504

BRACKET

45

6693975

BOLT

46

7002174

NUT, FLANGE

47

7000306

BOLT

48

7002330

CAP, RADIATOR
