Запчасти Bobcat CT235 GEAR CASE A GROUP POWER UNIT

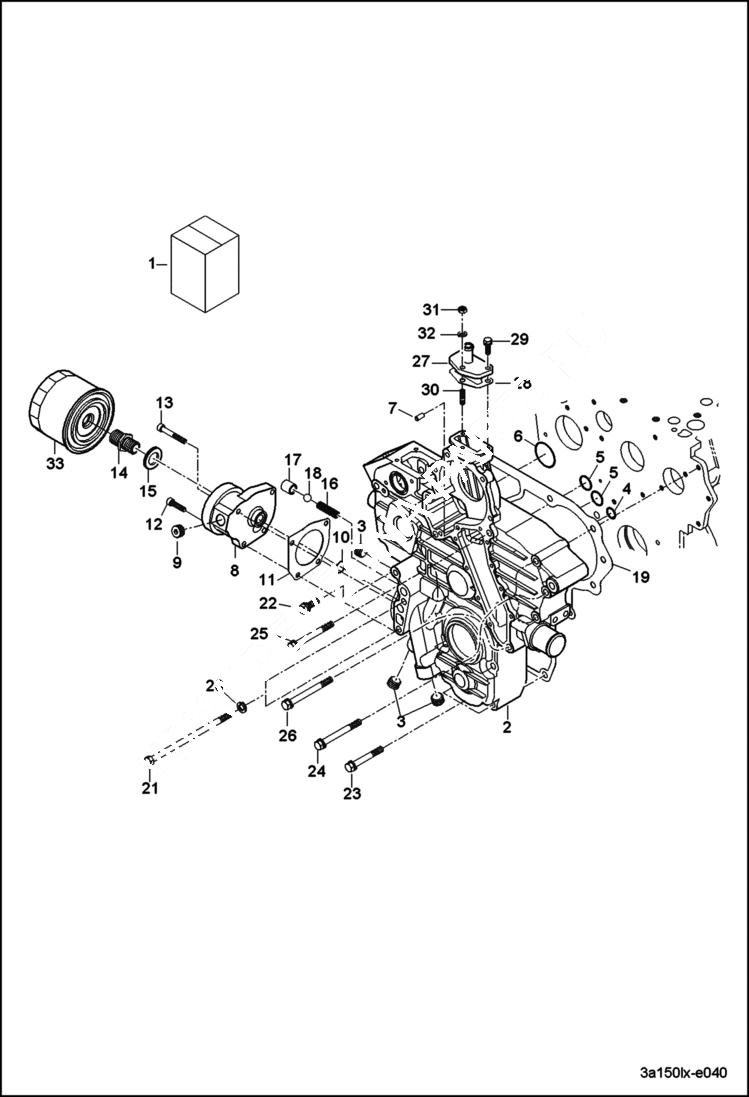

Схема запчастей Bobcat CT235 - GEAR CASE A GROUP POWER UNIT

Артикул

Название

Примечание

Количество

1

7000221

GEAR, CASE ASSY Ref. 2, 3, 7-18 & 28-32

2

7000220

HOUSING, GEAR

3

6694756

PLUG

4

6694146

O-RING

5

6696268

O-RING

6

6696270

SEAL O RING

7

6696389

PIN STRAIGHT

8

6696806

SUPPORT OIL FILTER

9

6694756

PLUG

10

6696266

SEAL O RING

11

6697261

GASKET, OIL FILTER SUPPORT

12

6695601

BOLT, HEX SOCKET

13

6695602

BOLT HEXAGON SOCKET

14

6696871

TUBE, CONNECTING

15

6696904

WASHER PLAIN

16

6694318

SPRING

17

6696590

SEAT VALVE

18

6694233

BALL STEEL

19

6697258

GASKET, GEARCASE

20

6697775

WASHER SPRING

21

6697610

SCREW

22

6693967

BOLT

23

6693969

BOLT

24

6695504

BOLT

25

6695505

BOLT

26

6695507

BOLT

27

6696930

FLANGE, WATER RETURN

28

6697244

GASKET

29

6693946

BOLT

30

6694008

STUD

31

6694040

NUT

32

6694092

WASHER SPRING

33

6696286

FILTER OIL

Выбрано товаров: 33
