Запчасти Bobcat CT235 ASSY,HST GROUP DRIVE TRAIN

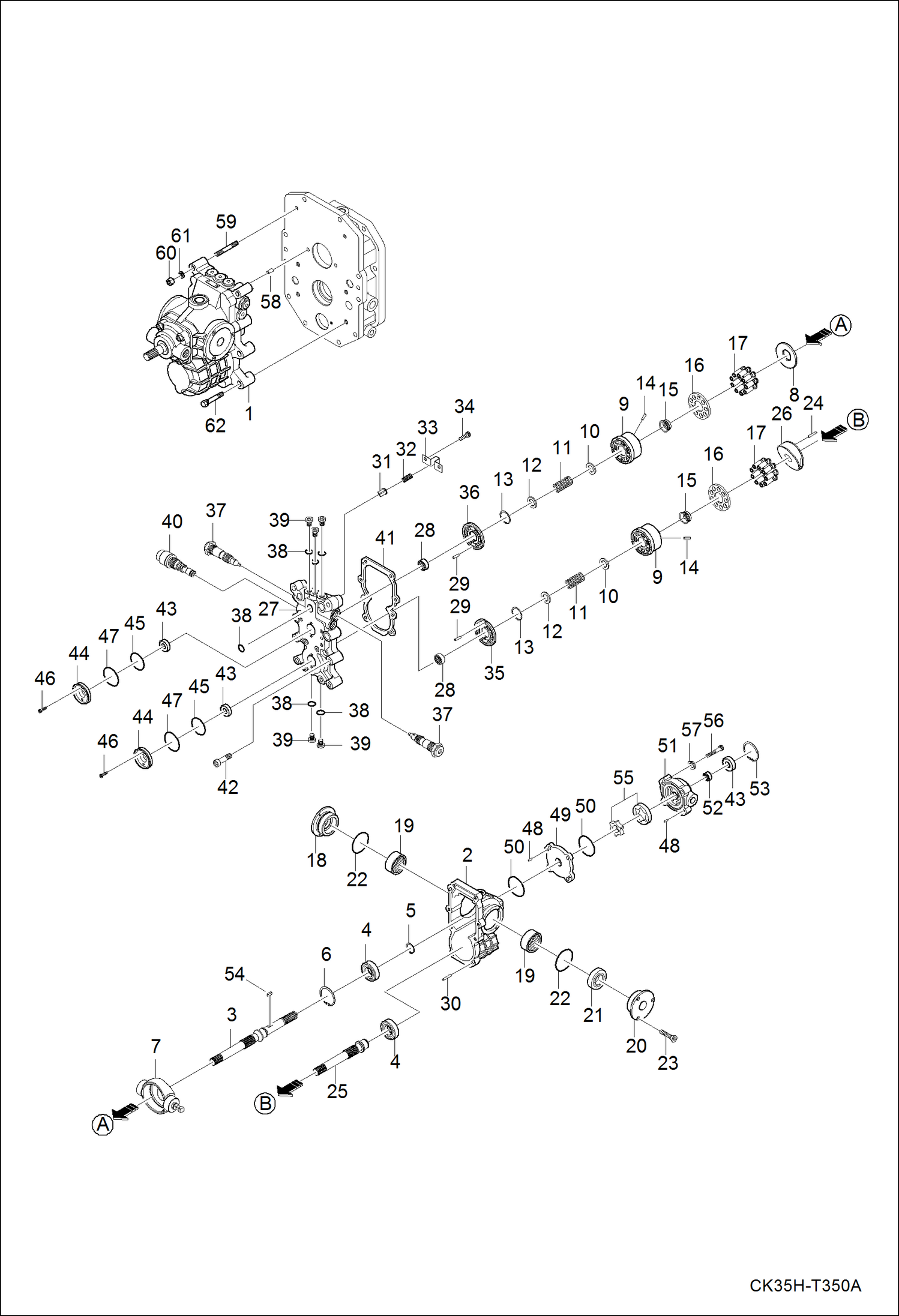

Схема запчастей Bobcat CT235 - ASSY,HST GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

6697381

PUMP HST

2

6695481

HOUSING BODY

3

6697638

SHAFT PRANTING PIWR

4

6695441

BEARING BALL

5

6694832

RING SNAP

6

6696692

RING SNAP

7

6697518

PLATE SWASH

8

6697517

PLATE SHOE

9

6697035

BLOCK CYLINDER

10

6697625

SEAT SPRING

11

6697670

SPRING

12

6697626

SEAT SPRING

13

6696552

RING SANP

14

6697484

PIN

15

6697314

GUIDE BALL

16

6697513

PLATE FIXED

17

6697502

PISTON

18

6695818

COVER (B)

19

6695884

BEARING DX

20

6695817

COVER

21

6696297

SEAL OIL

22

6696303

SEAL O-RING

23

6695548

BOLT

24

6694821

PIN

25

6697636

SHAFT MOTOR

26

6697519

PLATE SWASH MOTOR

27

7000237

COVER, FRONT

28

6696232

BEARING NEEDLE

29

6696336

PIN

30

6694818

PIN

31

6694772

VALVE CHECK

32

6697668

SPRING

33

6694773

HOLDER, SPRING

34

6695577

BOLT WRENCH

35

7000238

PLATE, MOTOR VALVE

36

7000239

PLATE, VALVE

37

6696234

VALVE, NEUTRAL ASSY

38

6696304

SEAL O-RING

39

6696451

PLUG

40

6697767

VALVE RELIEF

41

6697252

GASKET

42

6695600

BOLT WRENCH

43

6694816

SEAL OIL

44

6695810

COVER (C)

45

6696301

SEAL O-RING

46

6695576

BOLT WRENCH

47

6696302

SEAL O-RING

48

6694819

PIN

49

6694796

PLATE

50

6697469

SEAL O-RING

51

6697135

HOUSING CASEING

52

6696231

BEARING NEEDLE

53

6694833

RING SNAP

54

6697859

KEY

55

6697292

PUMP GEROTOR

56

6696940

BOLT

57

6696752

WASHER SPRING

58

6694170

PIN STRAIGHT

59

6694016

STUD

60

6694059

NUT

61

6694093

WASHER SPRING

62

6695519

BOLT

Выбрано товаров: 62
