Запчасти Bobcat CT235 REAR BALLAST KIT ACCESSORIES & OPTIONS

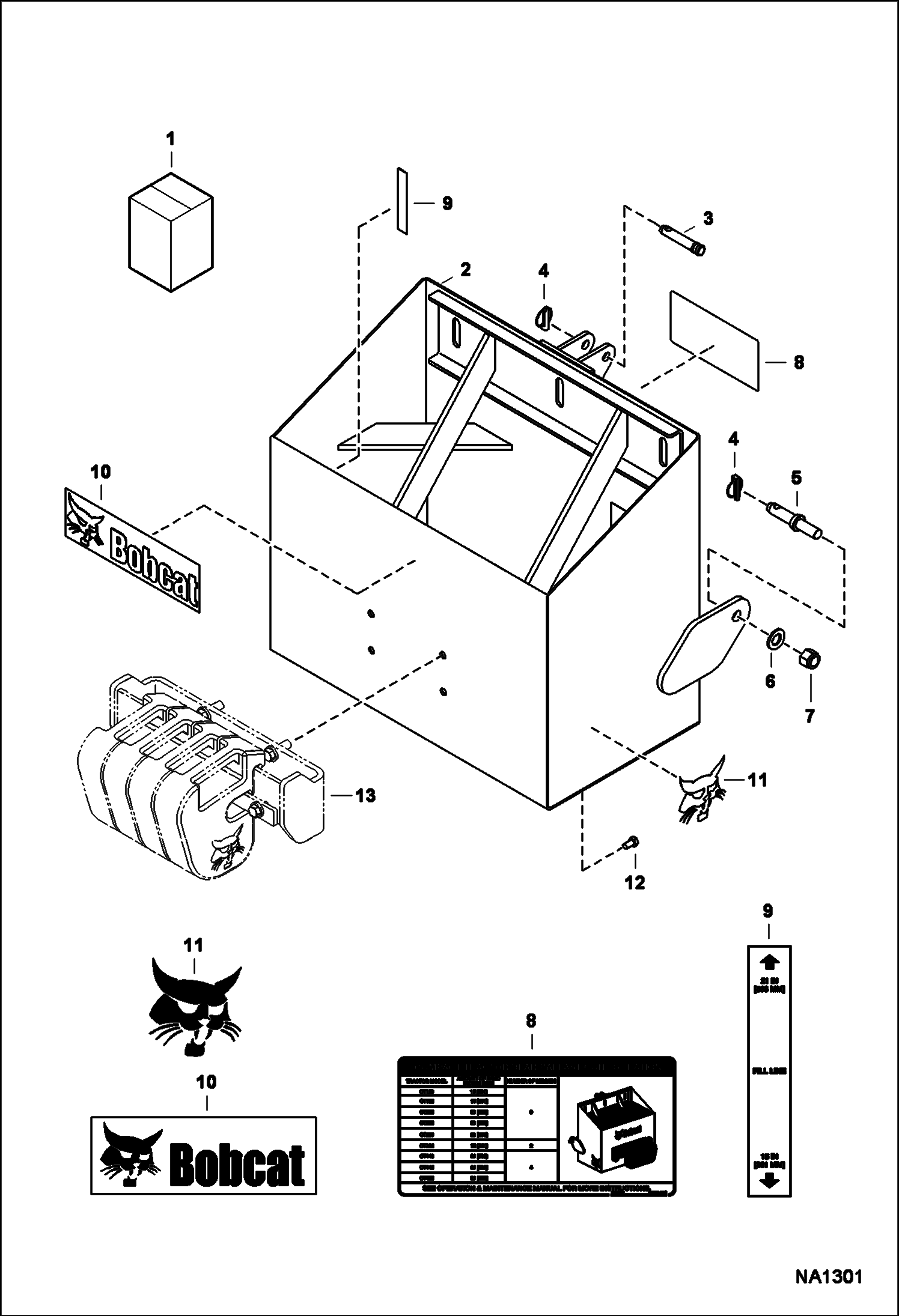

Схема запчастей Bobcat CT235 - REAR BALLAST KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7167567

KIT, BALLAST REAR - SALES ITEM W/Ref. 2-12

2

COUNTERWEIGHT NSS - Order Ref. 1

3

7107589

PIN

4

6560382

PIN, LOCK

5

7107590

PIN

6

25E29

WSHR

7

60D14

NUT

8

7170084

DECAL, INSTRUCTIONS

9

7170140

DECAL, FILL LINE

10

6731332

DECAL

11

6700191

DECAL, LOGO BOBCAT HEAD

12

17C612

BOLT 5

13

KIT, BALLAST MOUNTING See Illustration COUNTERWEIGHT KIT/ MS2755 not in Ref. 1 kit

Выбрано товаров: 13
