Запчасти Bobcat CT235 WATER PUMP GROUP POWER UNIT

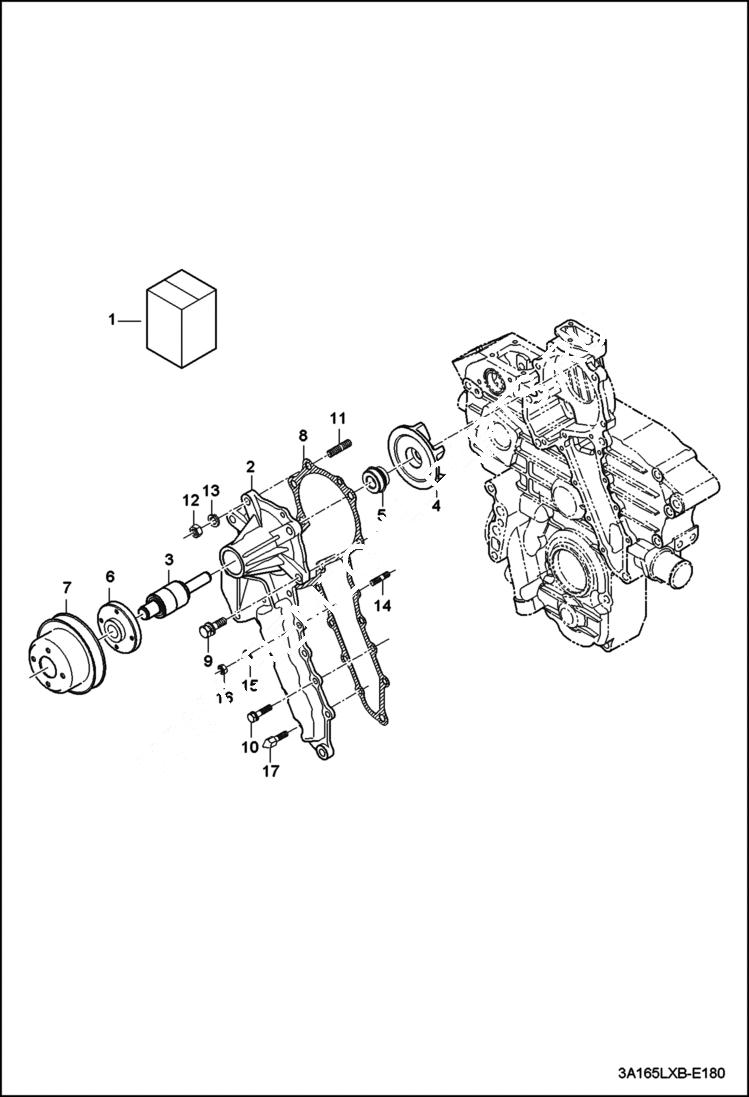

Схема запчастей Bobcat CT235 - WATER PUMP GROUP POWER UNIT

Артикул

Название

Примечание

Количество

1

6697555

PUMP WATER

2

NAME PLATE NLA

2

BODY WATER PUMP - NLA -

3

NAME PLATE NLA

3

BEARING, WATER PUMP - NLA -

4

NAME PLATE NLA

4

IMPELLAR - NLA -

5

NAME PLATE NLA

5

MECHANICAL SEAL ASSEMBLY - NLA -

6

NAME PLATE NLA

6

FLANGE - NLA -

7

6696466

PULLEY,FAN

8

6697265

GASKET, PUMP WATER

9

6695502

BOLT

10

6693945

BOLT

11

6696781

STUD

12

6694053

NUT

13

6697775

WASHER SPRING

14

6694316

STUD

15

6694092

WASHER SPRING

16

6694040

NUT

17

6696832

BOLT TIMING
