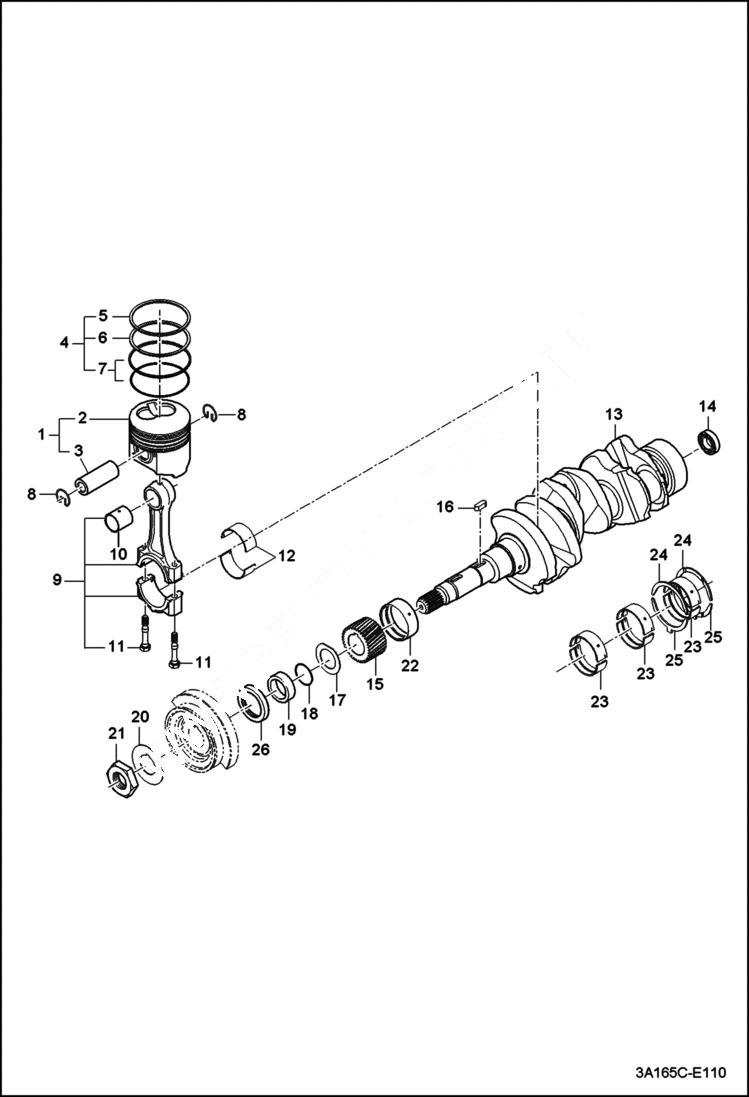

Запчасти Bobcat CT235 PISTON & CRANKSHAFT GROUP POWER UNIT

1

PISTON NLA - Order Ref. 2 & 3 - Was 7000229 - A

2

7000231

PISTON

3

7000236

PIN, PISTON

4

7000230

RING, PISTON ASSY Ref. 5-7

5

7000232

RING, PISTON

6

7000225

RING, PISTON 2

7

7000233

RING, OIL ENG

8

6695721

CLIP CIR

9

6695792

CONNECTOR, ASSY W/Ref. 10 & 11

10

6695660

BUSHING PISTON PIN

11

6697076

BOLT ROD

12

6695852

BEARING CRANK PIN

13

6695407

CRANKSHAFT

14

6695459

BEARING BALL

15

6696010

GEAR CRANKSHAFT

16

6696169

KEY

17

6696298

PUMP, SLINGER OIL

18

6696273

O-RING

19

6695758

BUSHING, CRANKSHAFT

20

6695860

WASHER CRANKSHAFT

21

6695858

NUT CRANKSHAFT

22

6695856

BEARING CRANKSHAFT

23

6695857

BEARING CRANKSHAFT

24

6696679

BEARING, THRUST

25

6696680

BEARING THRUST

26

6696296

SEAL OIL
