Запчасти Bobcat CT230 ENGINE STOP LEVER GROUP (S/N A59C11001 & Above) POWER UNIT

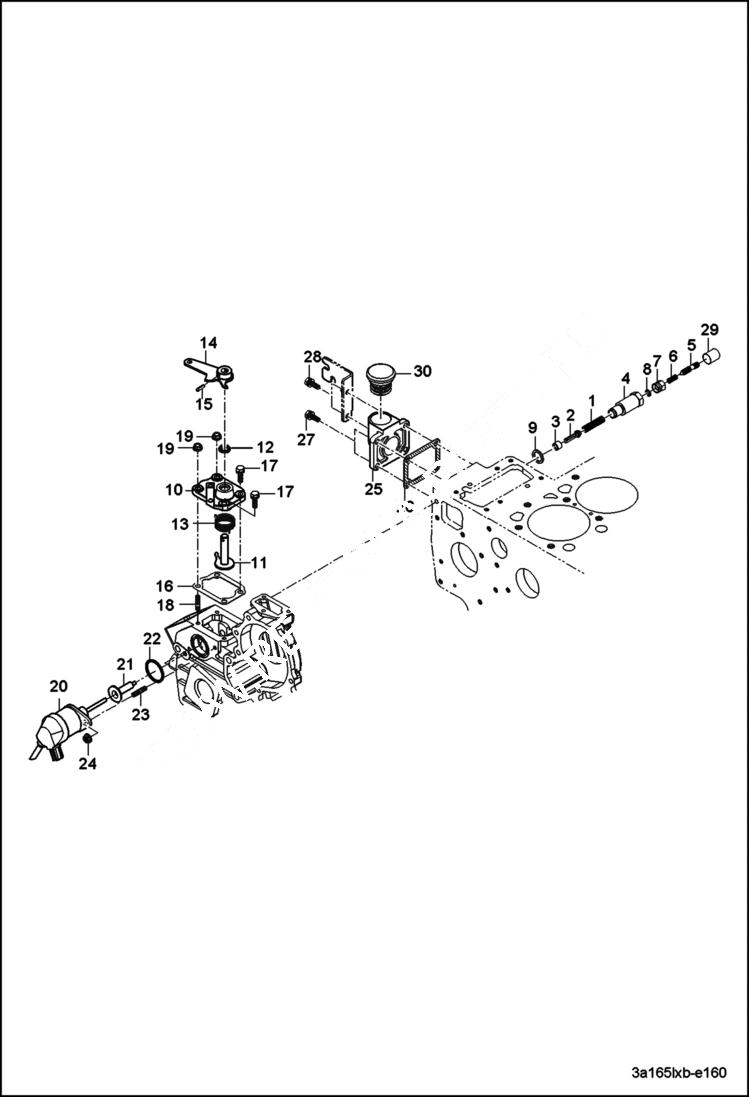

Схема запчастей Bobcat CT230 - ENGINE STOP LEVER GROUP (S/N A59C11001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6696733

SPRING

2

6696623

SHAFT, IDLE ADJUST

3

6697120

BUSHING

4

6697382

HOUSING, IDLE ADJUST

5

6696143

BOLT IDLE ADJUSTING

6

6696729

SPRING

7

6696250

NUT

8

6696265

O-RING

9

6694130

SEAL, PACKING

10

6696440

PLATE SPEED CONTROL

11

6697409

LEVER ENGINE STOP

12

6694333

OIL SEAL

13

6696734

SPRING

14

6696769

LEVER, STOP ENG

15

6694193

PIN SPRING

16

6697263

GASKET, SPEED CONTROL

17

6693946

BOLT Was 6693945 - B

18

6694316

STUD

19

6696243

NUT

20

6696694

SOLENOID, SHUTOFF FUEL 2 prong connector

20

7002157

SOLENOID, ENG STOP 3 prong connector - Was 6697653 - A

21

7010228

GUIDE, ENG STOP SOLENOID Was 6695894 - C

22

6696280

O-RING

23

6695539

STUD

24

6696243

NUT

25

6697465

FLANGE, OIL INLET

26

6697241

GASKET

27

6693945

BOLT

28

6695486

BOLT

29

6694536

CAP security

30

6696458

PLUG, OIL press in

30

6694597

PLUG, FILL threaded

Выбрано товаров: 32
