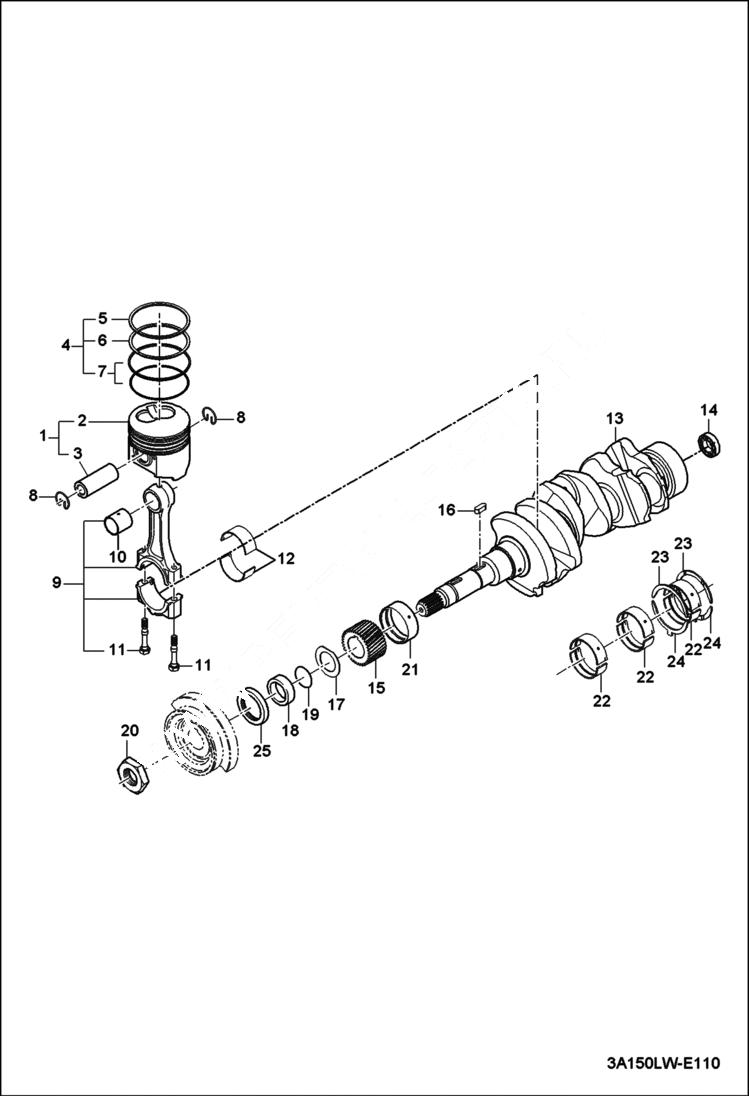

Запчасти Bobcat CT230 PISTON & CRANKSHAFT GROUP (S/N ABFP11001 & Above) POWER UNIT

1

7000286

PISTON, ENG

2

PISTON NLA - Order Ref. 1

3

PIN NLA - Order Ref. 1

4

6695337

RING, PISTON ASSY Ref. 5-7

5

6696482

RING PISTON

6

7000298

RING, PISTON

7

6695422

RING ASSY OIL

8

6695721

CLIP CIR

9

6695792

CONNECTOR, ASSY W/Ref. 10 & 11

10

6695660

BUSHING PISTON PIN

11

6697076

BOLT ROD

12

6695852

BEARING CRANK PIN

13

6695407

CRANKSHAFT

14

6695459

BEARING BALL

15

6696010

GEAR CRANKSHAFT

16

6696169

KEY

17

6696298

PUMP, SLINGER OIL

18

6695758

BUSHING, CRANKSHAFT

19

6696273

O-RING

20

6695858

NUT CRANKSHAFT

21

6695856

BEARING CRANKSHAFT

22

6695857

BEARING CRANKSHAFT

23

6696679

BEARING, THRUST

24

6696680

BEARING THRUST

25

6696296

SEAL OIL
