CYLINDER HEAD GROUP (S/N A59C11001 & Above)

Запчасти Bobcat CT230 CYLINDER HEAD GROUP (S/N A59C11001 & Above) POWER UNIT

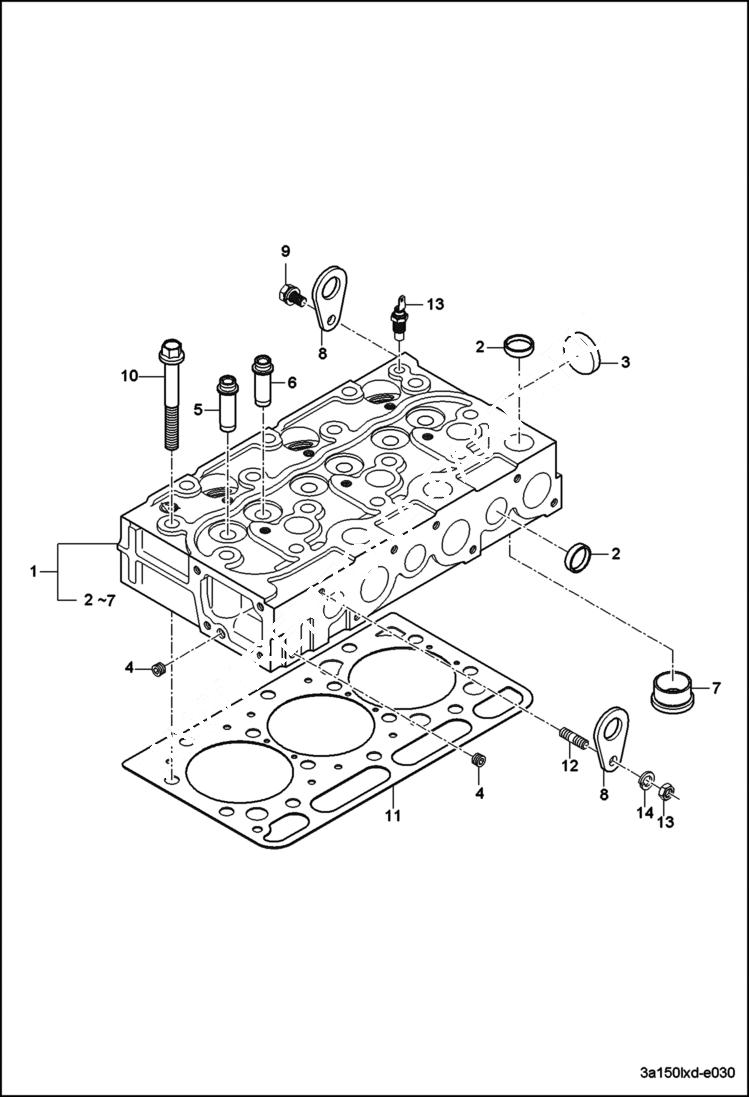

Схема запчастей Bobcat CT230 - CYLINDER HEAD GROUP (S/N A59C11001 & Above) POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6697331

HEAD CYLINDER

1

7000288

HEAD, CYL ENG

2

6695695

CAP SEALING

3

6694304

CAP SEALING

4

6694757

PLUG

5

6696078

GUIDE INLET VALVE

6

6696075

GUIDE EXHAUST VALVE

7

6696129

HOUSING, PRECOMBUST CHAMBER

8

6697339

HOLDER, ENGINE

9

6697053

BOLT

10

6695561

BOLT HEAD

11

6695974

GASKET, HEAD CYL

11

7000287

GASKET, HEAD CYL

12

6694011

STUD

13

6694053

NUT

14

6697775

WASHER SPRING
