Запчасти Bobcat CT225 LIGHT GROUP ELECTRICAL SYSTEM

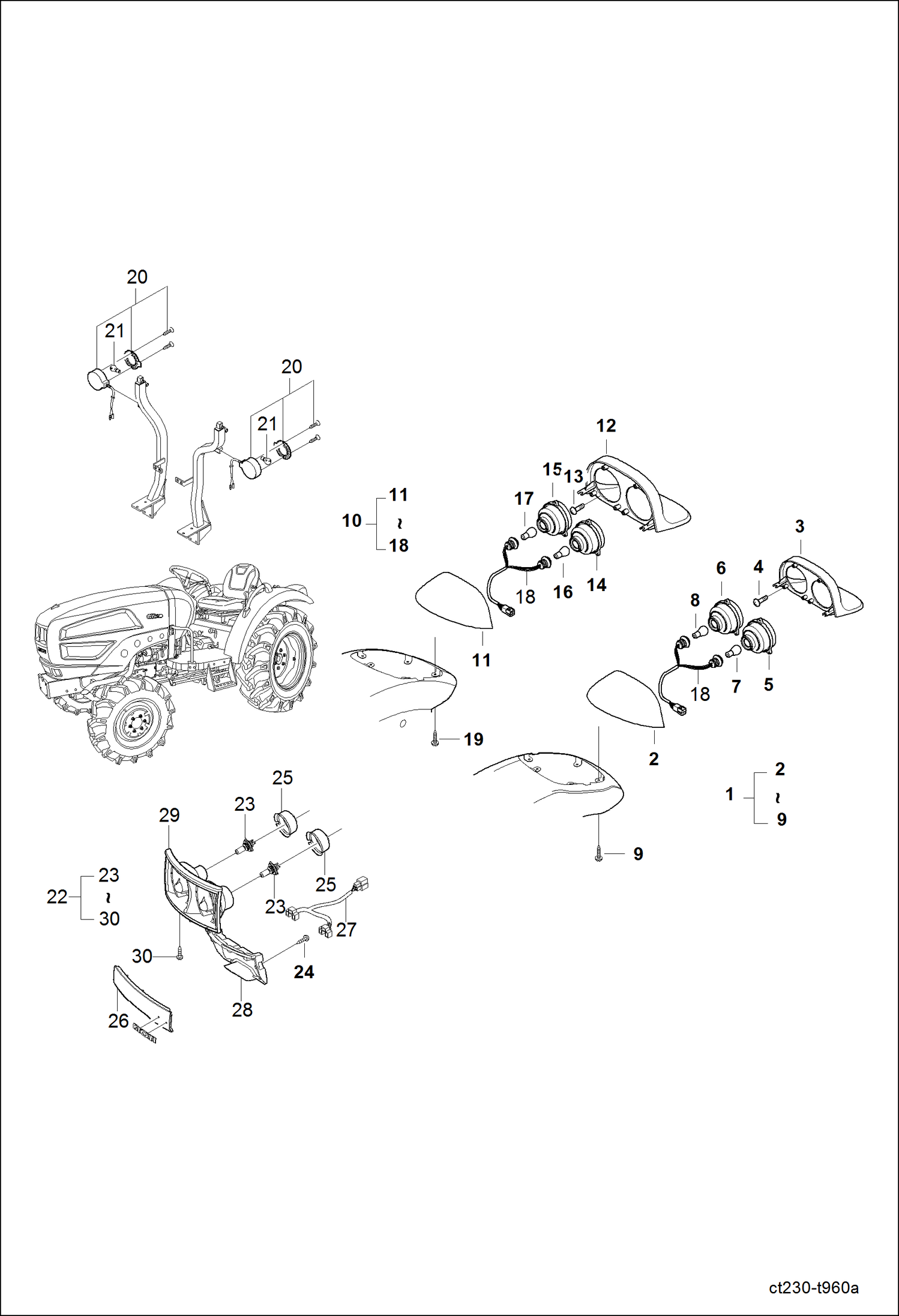

Схема запчастей Bobcat CT225 - LIGHT GROUP ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6697438

LIGHT, TAIL LH

2

6697175

COVER, REAR LAMP LH

3

6697174

COVER REAR LAMP LH

4

6694386

SCREW

5

6696471

LIGHT, REAR TURN SIGNAL yellow

6

6697437

LIGHT, STOP TAIL red

7

6695646

LIGHT, BULB 12V P21W

8

6695645

LIGHT, BULB 12V P21/5W

9

6694386

SCREW

10

6697440

LIGHT, TAIL RH

11

6697176

COVER, REAR LAMP RH

12

6697177

COVER REAR LAMP RH

13

6694386

SCREW

14

6696471

LIGHT, REAR TURN SIGNAL yellow

15

6697437

LIGHT, STOP TAIL red

16

6695646

LIGHT, BULB 12V P21W

17

6695645

LIGHT, BULB 12V P21/5W

18

6696936

HARNESS, LIGHT REAR

19

6694386

SCREW

20

6697433

LIGHT, HAZARD

21

6697431

LIGHT, BULB 12V 21W

22

6697434

LIGHT, HEAD

23

6695651

LIGHT, BULB 12V35/35W

24

6694386

SCREW

25

6695882

COVER DUST

26

6697787

WIRE

27

6696935

HARNESS, LIGHT HEAD

28

6697295

FRAME, GRILL LIGHT

29

6697369

HOUSING, HEAD LAMP

30

6697611

SCREW

Выбрано товаров: 30
