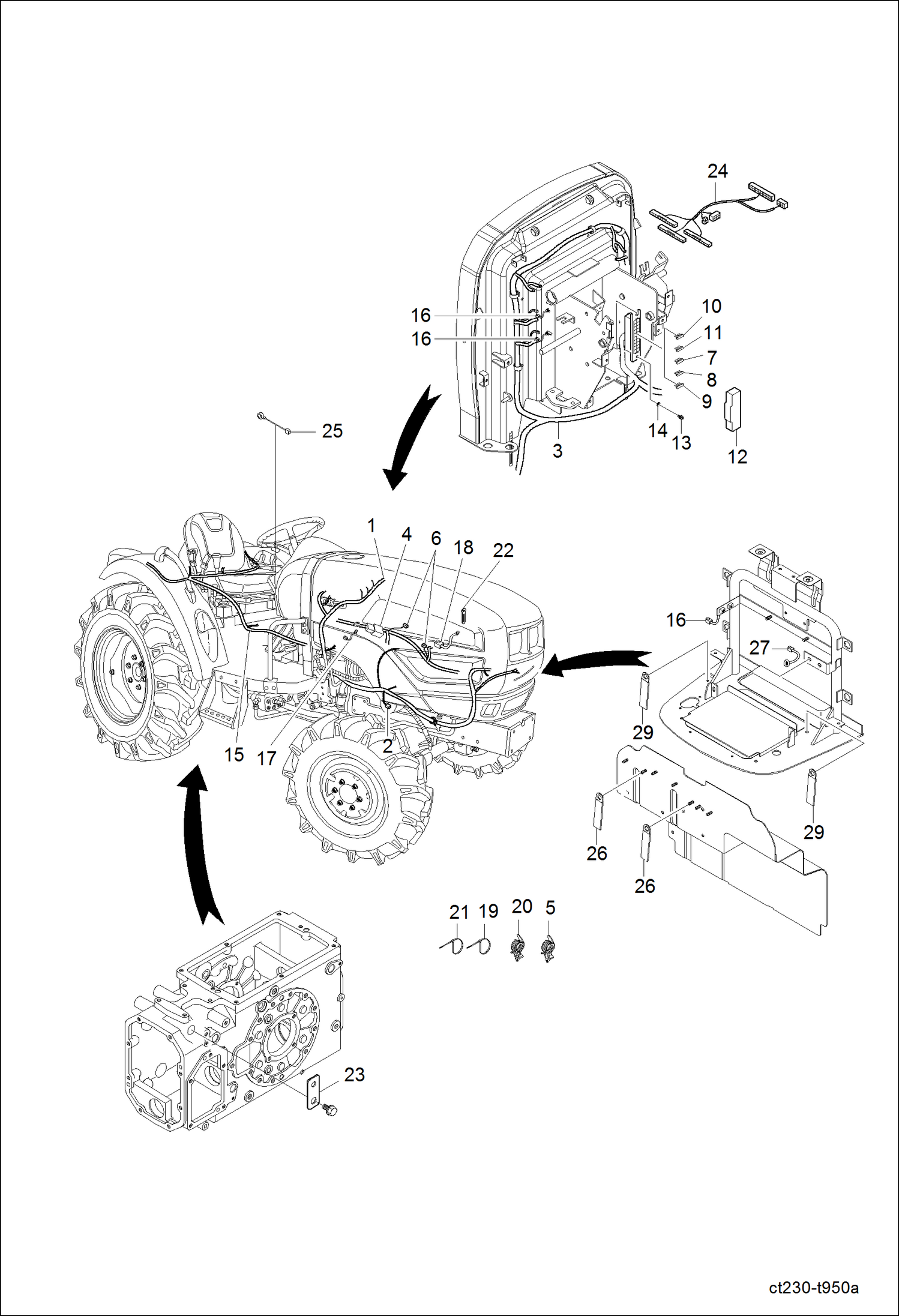

Запчасти Bobcat CT225 ELECTRICAL SYSTEM 3 GROUP ELECTRICAL SYSTEM

1

7000272

HARNESS, HOOD Was 6697330 - A

2

6695877

RECTIFIER, DIODE

3

7000370

HARNESS Was 6697321 - A

4

6694397

FUSE, 60A

5

6697024

BAND, CABLE

6

6695877

RECTIFIER, DIODE

7

6702444

FUSE 25A 5 Was 6697236 - A

8

6654803

FUSE 5A Was 6697237 - A

9

7001051

FUSE 7.5A Was 6697234 - A

10

6654805

FUSE 10A Was 6697235 - A

11

6654806

FUSE, 15A Was 6694371 - A

12

6695815

COVER, FUSE BOX

13

6695540

BOLT

14

6694077

WASHER PLAIN

15

7000371

HARNESS, FENDER Was 6697328 - A

16

6697324

HARNESS WIRE

17

6697325

HARNESS WIRE

18

6697789

WIRE, CONNECTION

19

6697027

BAND CORD

20

6697024

BAND, CABLE

21

6697981

BAND, CORD

22

6694383

HOLDER HARNESS

23

6695618

BRACKET, HARNESS

24

6697788

WIRE, ASSY

25

6697790

WIRE, HORN

26

6694382

CLAMP CORD

27

6697323

HARNESS WIRE
