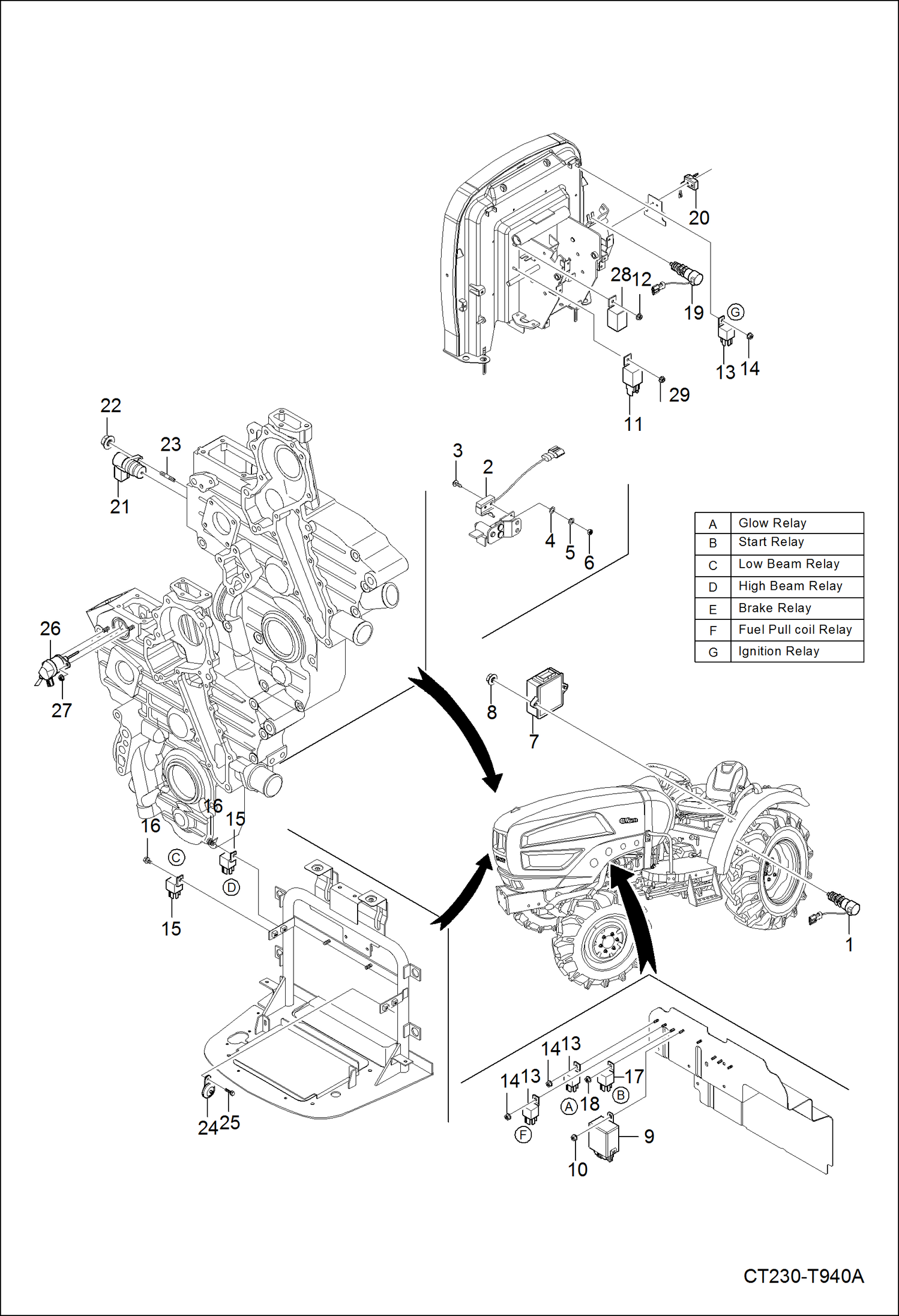

Запчасти Bobcat CT225 ELECTRICAL SYSTEM 2 GROUP ELECTRICAL SYSTEM

1

6697718

SWITCH SAFETY STARTER PTO

2

6697715

SWITCH, MICRO HST neutral pedal sensor

3

6694068

BOLT SCREW

4

6694075

WASHER PLAIN

5

6696922

WASHER SPRING

6

6694036

NUT

7

7000274

CONTROLLER, OPERATING UNIT Was 6697144 - A

8

6696258

NUT FLANGE

9

6697546

RELAY, PREHEATER

10

6696258

NUT FLANGE

11

6697980

FLASHER

12

6696258

NUT FLANGE

13

6697557

RELAY - A

14

6696258

NUT FLANGE

15

6697557

RELAY - A

16

6695585

BOLT FLANGE

17

7013278

RELAY Was 6697556 - A

18

6696258

NUT FLANGE

19

6697716

SWITCH, BRAKE SAFETY

20

SWITCH MICRO See Illustration FRAME GROUP/ CT230H-T840A NLA - Order 7013181 switch and 7015284 plate - Was 6694391 - A

20

7013181

SWITCH, MICRO See Illustration FRAME GROUP/ CT230H-T840A

21

6696326

SENSOR, SPEED ENG

22

6696243

NUT

23

6697678

STUD

23

6695557

BOLT, FLANGE

24

6697861

HORN, ASSY

25

6697054

BOLT

26

6696694

SOLENOID, SHUTOFF FUEL 2 prong connector

26

7002157

SOLENOID, ENG STOP 3 prong connector

27

6696243

NUT

28

6697558

RELAY, BRAKE

29

6696258

NUT FLANGE
