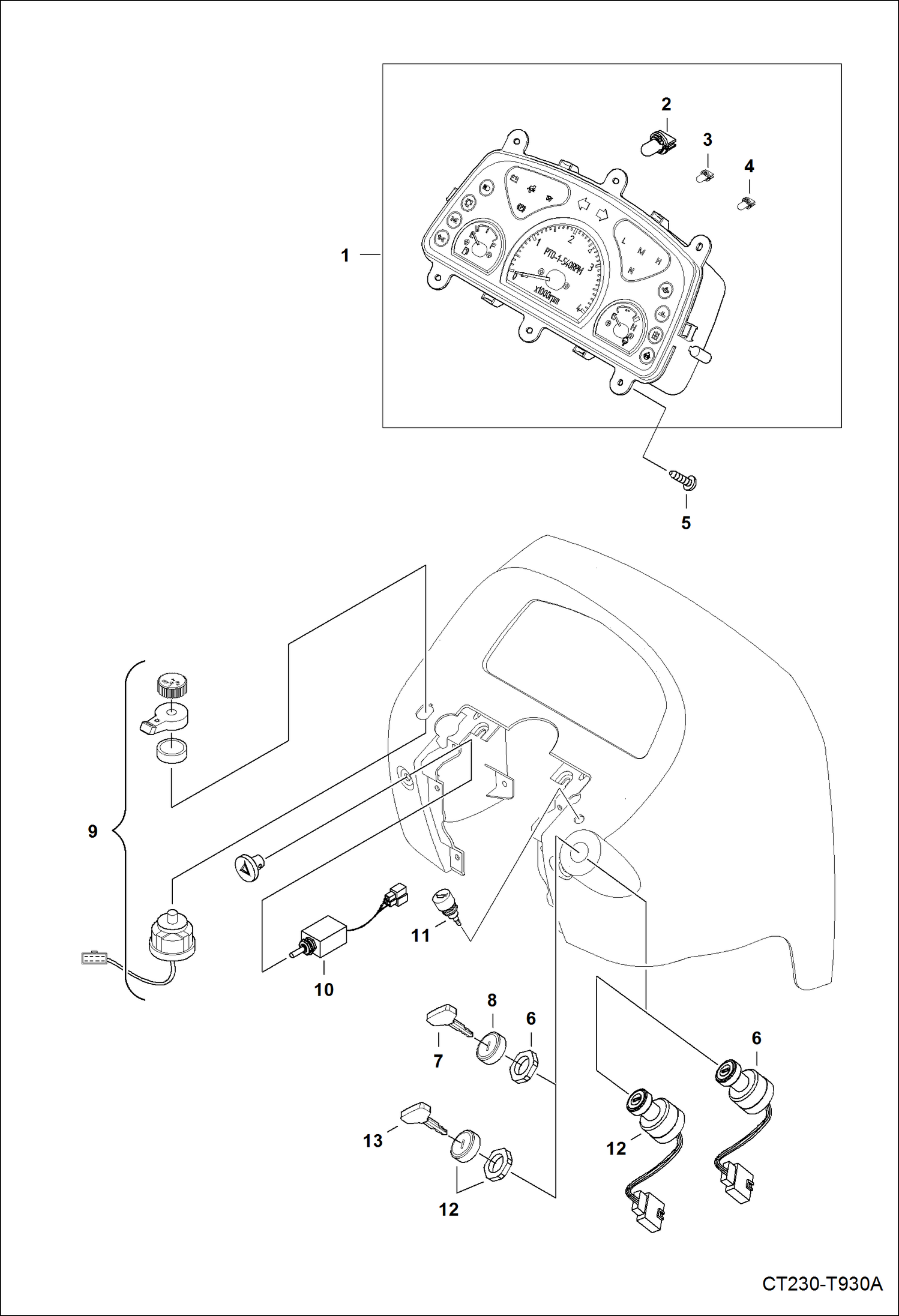

Запчасти Bobcat CT225 ELECTRICAL SYSTEM 1 GROUP ELECTRICAL SYSTEM

1

6697526

PLATE, METER W/integral components which cannot be serviced individually

2

6697432

LIGHT, BULB 12V 34W

3

6697430

LIGHT

4

6695652

LIGHT, BULB 14V/ 14W

5

6694386

SCREW

6

6697720

SWITCH STARTER W/Ref. 7

7

6697386

2 KEYS 2 keys - W/ring - use W/Ref. 6 NLA 6697720 switch

8

7010199

COVER, SWITCH optional

9

6695365

SWITCH, COMBINATION ASSY

10

6695321

SWITCH HAZARD

11

6697714

SWITCH, HORN

12

7025591

SWITCH, IGN W/Ref. 13

13

7025594

KEY, IGN use W/Ref. 12
