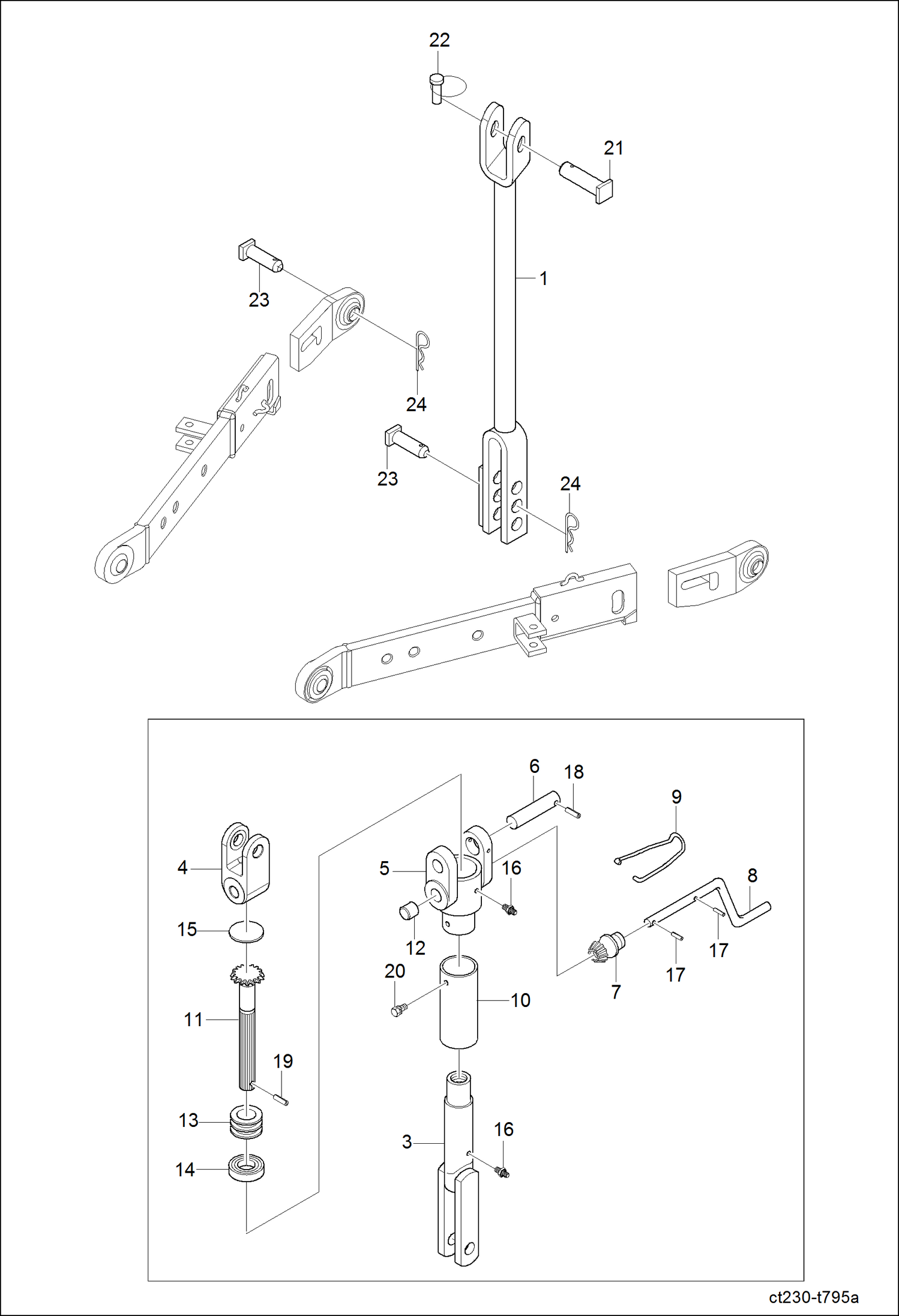

Запчасти Bobcat CT225 THREE POINT LINK SYSTEM 2GROUP HYDRAULIC SYSTEM

1

6697577

ROD, LIFT LH

2

6697584

ROD, LIFT RH adjustable - Ref. 3-20

3

6696519

ROD, LIFT LOWER

4

6697384

CONNECTOR, JOINT LIFT ROD

5

6697576

ROD, LIFT GEAR CASE

6

6696347

PIN, LIFT ROD

7

6697274

GEAR, LIFT ROD ADJUST

8

6696080

HANDLE

9

6697694

SUPPORT, HANDLE

10

6696838

TUBE

11

6696004

GEAR LIFT ROD ADJUST

12

6696697

SPACER

13

6697646

SHIM

14

6695474

BEARING THRUST BALL

15

6696445

PLUG

16

6694228

NIPPLE GREASE

17

6696384

PIN SPRING

18

6696383

PIN SPRING

19

6694193

PIN SPRING

20

6695537

BOLT

21

6696367

PIN LIFT ROD

22

6697495

PIN, SET

23

7001902

PIN Was 6696330 - A

24

6694213

PIN SNAP
