Запчасти Bobcat CT225 THREE POINT LINK SYSTEM 1GROUP HYDRAULIC SYSTEM

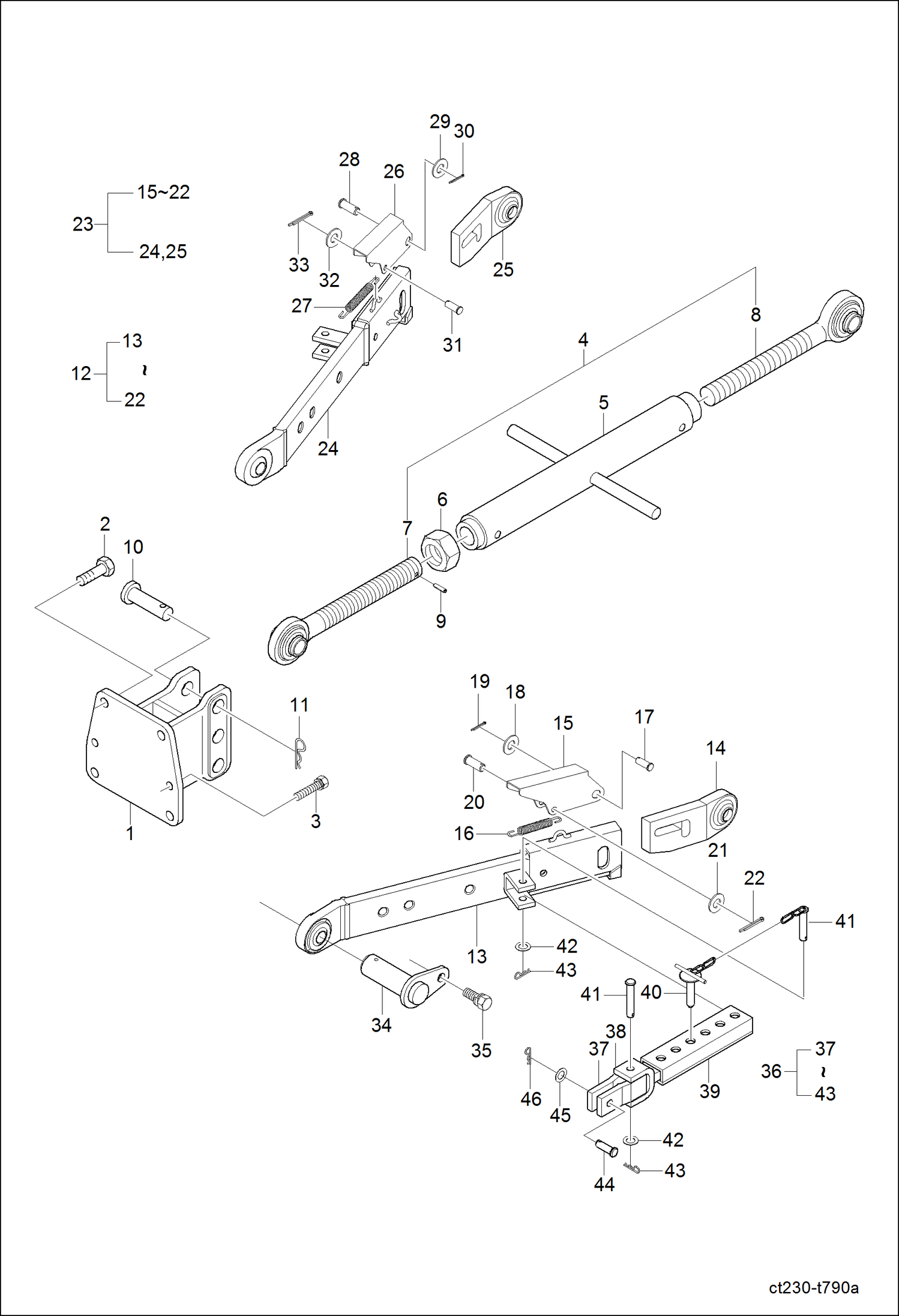

Схема запчастей Bobcat CT225 - THREE POINT LINK SYSTEM 1GROUP HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6697345

HOLDER TOP LINK

2

6697061

BOLT

3

6693982

BOLT

4

6697448

LINK, TOP Ref. 5-9

5

6695242

LINK TOP

6

6696256

NUT

7

6694357

JOINT, LINK TOP LH LH thread - Was 6694356 - B,D

8

6694356

JOINT, LINK TOP RH RH thread - Was 6694357 - B,D

9

6696381

PIN SPRING

10

6697501

PIN, LINK TOP

11

6697495

PIN, SET

12

6697445

LINK, LOWER LH Ref. 13-22

13

LINK, LOWER LH NLA - Order Ref. 12 - Was 7002264 - A

14

6696133

HOUSING LOWER LINK(LH)

15

6695809

COVER

16

6697862

SPRING

17

6696345

PIN

18

6696915

WASHER PLAIN

19

6696918

PIN, SPLIT

20

6696363

PIN JOINT

21

6696912

WASHER PLAIN

22

6696380

PIN SPLIT

23

6697446

LINK, LOWER RH Ref. 15-22, 24 & 25

24

LINK, LOWER RH NLA - Order Ref. 23 - Was 7002265 - A

25

6696130

HOUSING LOWER LINK (RH)

26

6695809

COVER

27

6696745

SPRING

28

6696345

PIN

29

6696915

WASHER PLAIN

30

6696918

PIN, SPLIT

31

6696363

PIN JOINT

32

6696912

WASHER PLAIN

33

6696380

PIN SPLIT

34

6696368

PIN, LINK LOWER

35

6697053

BOLT

36

6695403

LINK, CHECK RUBBER Ref. 37-43

37

6695354

BRACKET

38

6695294

BRACKET ASSY

39

6695375

HOUSING

40

6697346

HOLDER HOLL 1 pin W/chain

41

6696365

PIN JOINT

42

6696912

WASHER PLAIN

43

6696375

PIN SNAP

44

6696329

PIN

45

6694081

WASHER PLAIN

46

6696372

PIN SNAP

Выбрано товаров: 46
