Запчасти Bobcat CT225 MAIN DISTRIBUTOR VALVE GROUP HYDRAULIC SYSTEM

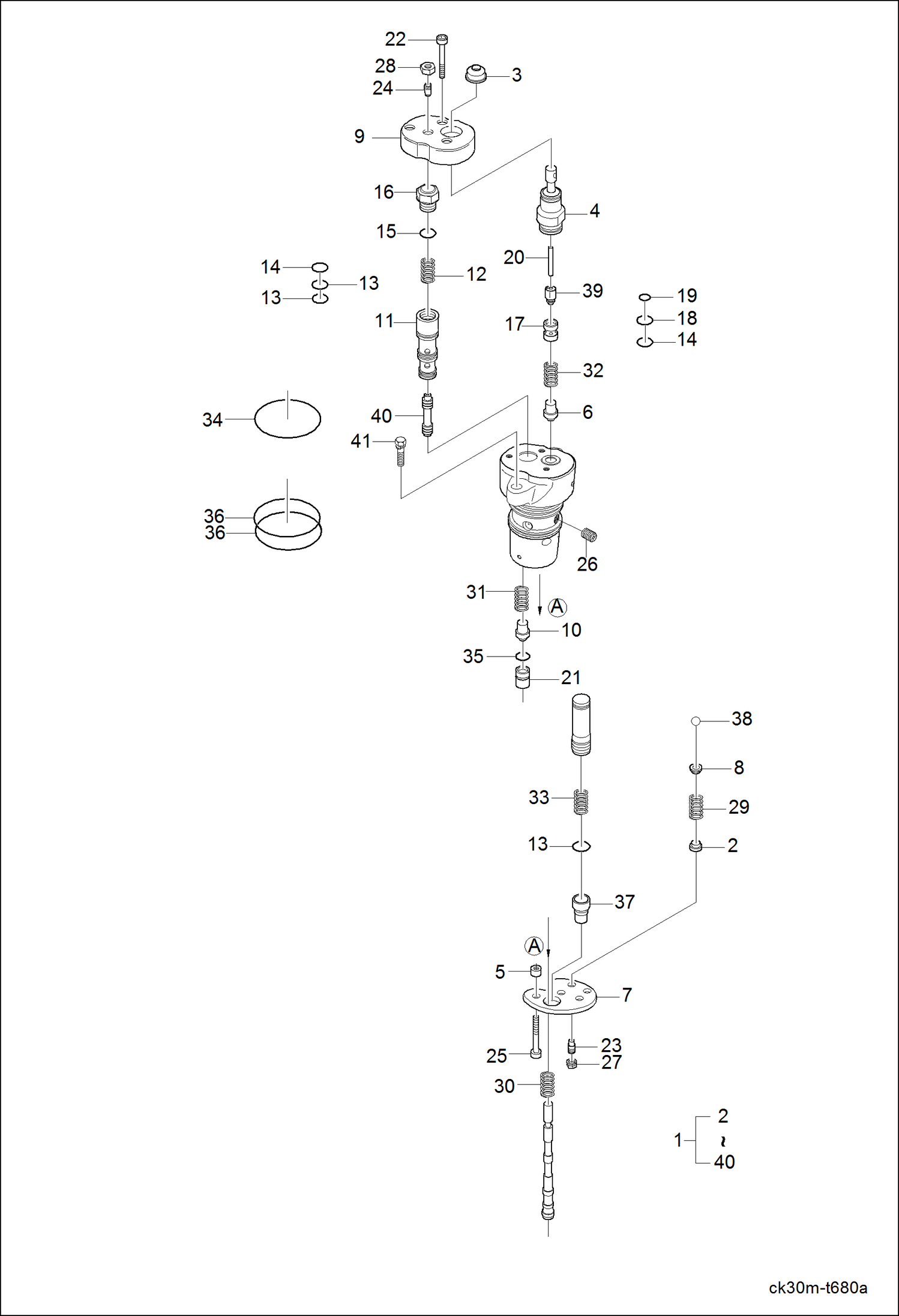

Схема запчастей Bobcat CT225 - MAIN DISTRIBUTOR VALVE GROUP HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7000303

VALVE, MLS (MORE STEPS) Was 6696230 - A

2

6697828

SPACER Was 6697998 - A

3

6694282

GUIDE, RUBBER

4

6697826

KIT, LEVER lever assy

5

6694283

SPACER

6

6694284

VALVE

7

6694285

PLATE

8

6694287

SPACER

9

6694288

COVER

10

6694289

VALVE

11

6694290

VALVE

12

6694367

SPRING

13

6694375

O-RING

14

6694376

O-RING

15

6694378

O-RING

16

6696442

PLUG

17

6694291

VALVE, SEAT

18

6694373

O-RING

19

6694374

O-RING

20

6694393

PIN

21

6694292

VALVE SEAT

22

6694343

SCREW, ADJUSTING

23

6694344

SCREW ADJUSTING

24

6694345

SCREW

25

6694346

SCREW ADJUSTING

26

6696554

SCREW

27

6694348

NUT

28

6694349

NUT

29

6694363

SPRING

30

6694364

SPRING

31

6694365

SPRING

32

6694366

SPRING

33

6694368

SPRING

34

6694372

PIN 10X65 DIN1481

35

6694377

O-RING

36

6694379

O-RING

37

6694390

PLUG

38

6694392

BALL

39

6694286

VALVE

40

6697825

SPOOL

41

6693967

BOLT

Выбрано товаров: 41
