Запчасти Bobcat CT225 HST EXTERNAL HYDRAULIC LINE GROUP HYDRAULIC SYSTEM

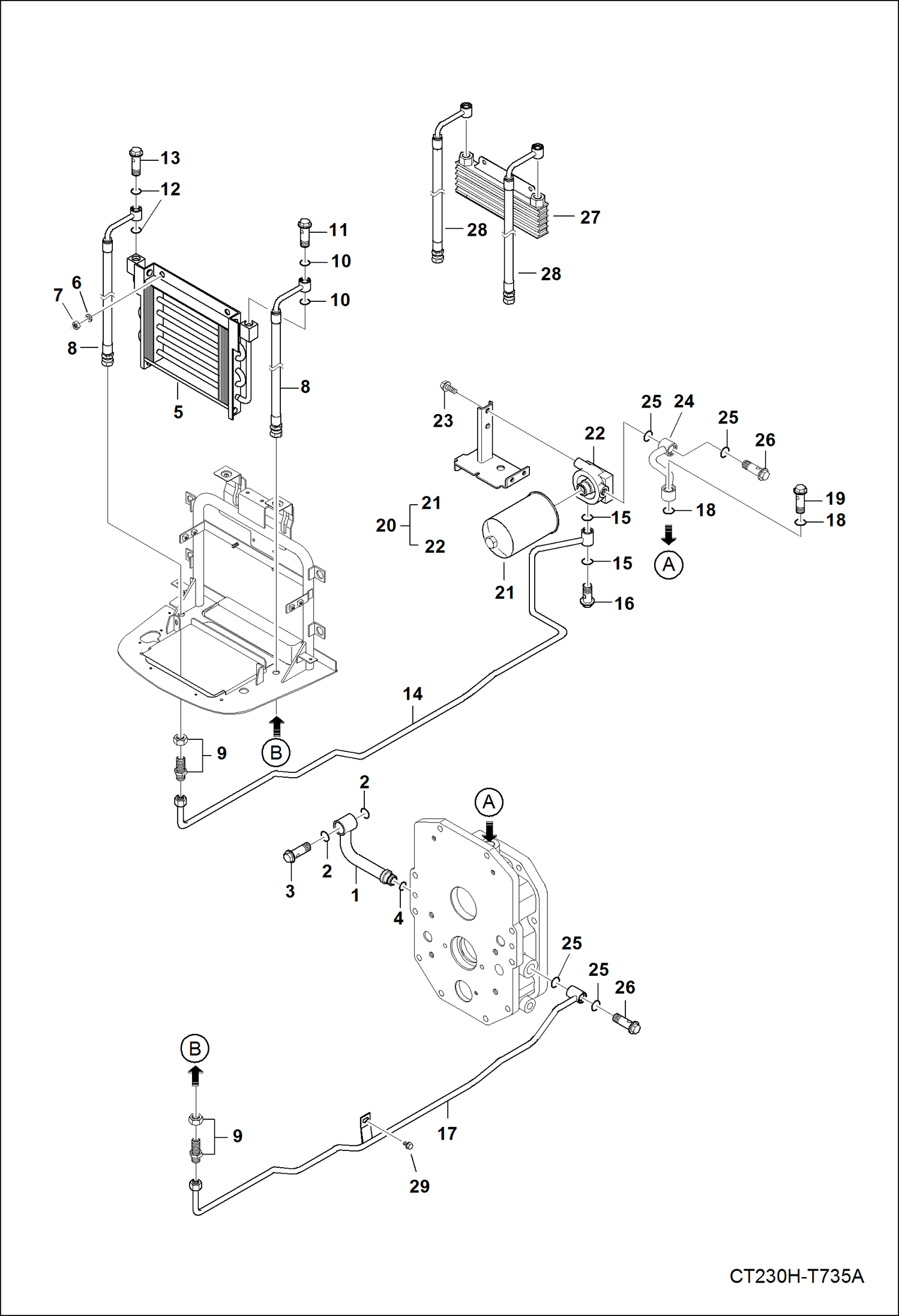

Схема запчастей Bobcat CT225 - HST EXTERNAL HYDRAULIC LINE GROUP HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6697739

TUBELINE, HST INLET CHARGE

2

6694138

O-RING

3

6696163

BOLT JOINT

4

6694135

SEAL O RING

5

7012490

EXCHANGER, OIL COOLER

6

6697775

WASHER SPRING

7

6694053

NUT

8

7018016

HOSE, HYD for Ref. 5 tubular core exchanger 7012490

9

6695785

CONNECTOR

10

6694136

O-RING

11

6697078

BOLT, JOINT

12

6694136

O-RING

13

6697078

BOLT, JOINT

14

7021866

TUBE, COOLING Was 6697726 - A

15

6694137

O-RING

16

6695594

BOLT JOINT

17

TUBE, COOLING See BTI415 - Was 6697728 - A

18

6694137

O-RING

19

6695594

BOLT JOINT

20

6695908

FILTER ASSY HYD

21

6695914

FILTER, OIL HYDROSTATIC

22

6695639

BRACKET, FILTER

23

6693979

BOLT

24

6697737

TUBELINE, HST INLET

25

6694137

O-RING

26

6696165

BOLT JOINT

27

EXCHANGER, OIL COOLER NLA - Order Ref. 5 exchanger and (2) of Ref. 8 hose - A

28

6695795

HOSE COOLING for Ref. 27 non tubular core exchanger 6696284

29

6693974

BOLT

Выбрано товаров: 29
