Запчасти Bobcat CT225 SUCTION PIPE GROUP HYDRAULIC SYSTEM

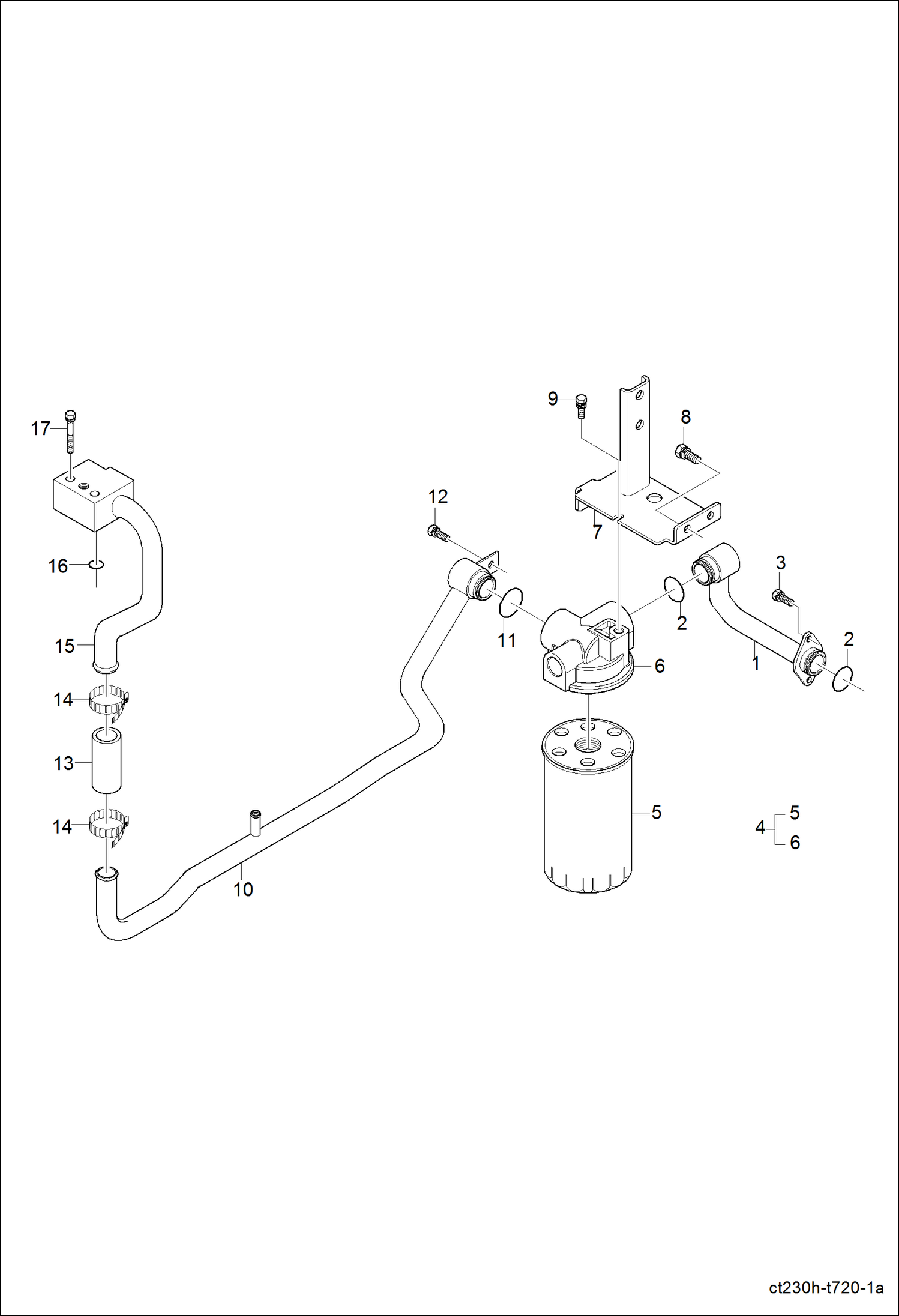

Схема запчастей Bobcat CT225 - SUCTION PIPE GROUP HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6697748

TUBE INLET

2

6696269

SEAL O RING

3

6697054

BOLT

4

6695907

FILTER, OIL HYD

5

6695913

FILTER, OIL HYD

6

6695634

HOUSING, FILTER

7

6696803

SUPPORT, FILTER OIL

8

6693979

BOLT

9

6697058

BOLT

10

6697758

TUBE, SUCTION

11

6696269

SEAL O RING

12

6697054

BOLT

13

6694438

HOSE, RUBBER

14

6697026

CLAMP, HOSE

15

6697749

TUBE INLET

16

6694137

O-RING

17

7002491

BOLT Was 6695523 - A

17

7002491

BOLT

Выбрано товаров: 18
