Запчасти Bobcat CT225 REAR AXLE GROUP DRIVE TRAIN

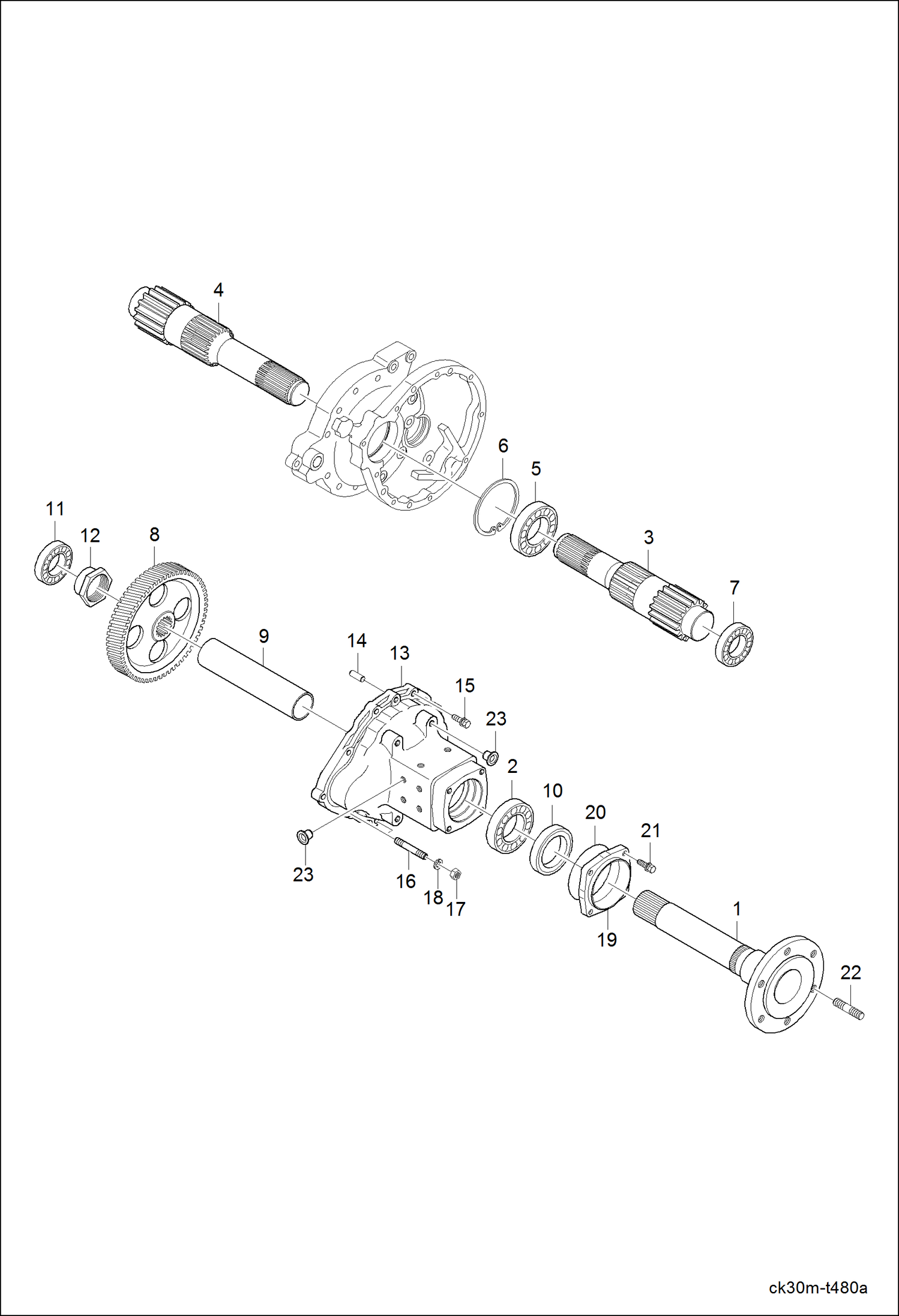

Схема запчастей Bobcat CT225 - REAR AXLE GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

6695437

AXLE REAR

2

6694246

BEARING BALL

3

6696614

SHAFT 10 GEAR (LH)

4

6696615

SHAFT 10 GEAR (RH)

5

6694245

BEARING BALL

6

6694104

RING SNAP

7

6694243

BEARING BALL

8

6695999

GEAR 55

9

6697659

SPACER

10

6696578

SEAL OIL

11

6695467

BEARING BALL

12

6696260

NUT, AXLE

13

6695712

HOUSING, AXLE REAR

14

6696392

PIN STRAIGHT

15

6697060

BOLT

16

6696791

STUD

17

6694059

NUT

18

6694093

WASHER SPRING

19

6695845

COVER, REAR AXLE CASE

20

6696278

O-RING

21

6697060

BOLT

22

6696792

STUD See Illustration TIRES & RIMS/ NA2532 - 2.7'' (69 mm) long - Use W/6696255 high nut

22

6697679

STUD See Illustration TIRES & RIMS/ NA2532 - 2.25'' (57 mm) long - also order 6694045 std nut

23

6694355

PLUG

Выбрано товаров: 24
