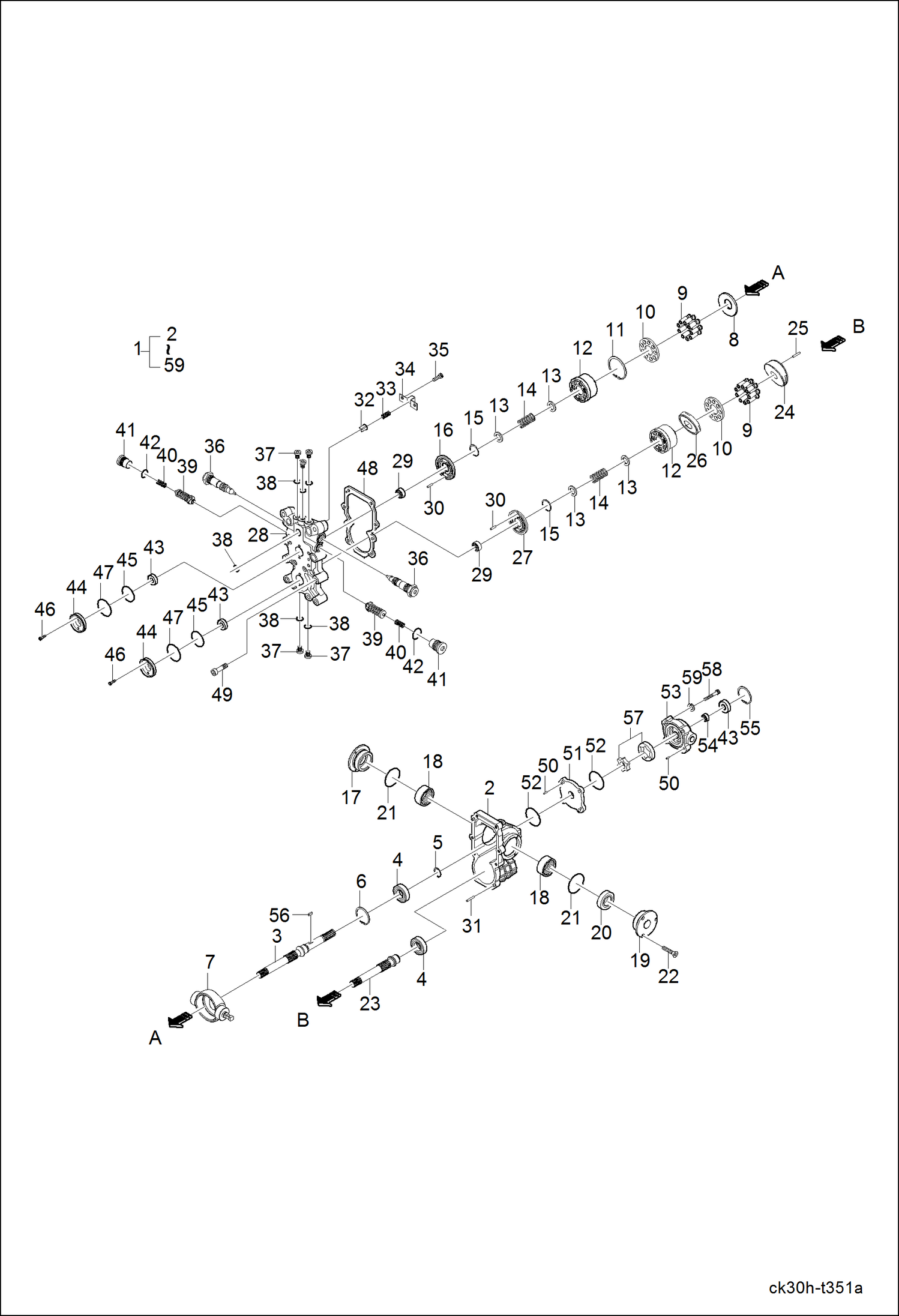

Запчасти Bobcat CT225 HST ASSY DRIVE TRAIN

1

6697552

PUMP, HST

2

6695481

HOUSING BODY

3

6696594

SHAFT

4

6695441

BEARING BALL

5

6694832

RING SNAP

6

6696692

RING SNAP

7

6696817

PLATE SWASH

8

6696678

PLATE, SHOE

9

6695388

PISTON ASSY

10

6696427

PLATE, SET

11

6696691

RING SNAP

12

6695865

BLOCK CYLINDER

13

6696751

SEAT, SPRING

14

6696736

SPRING

15

6696552

RING SANP

16

6696885

PLATE, VALVE

17

6695818

COVER (B)

18

6695884

BEARING DX

19

6695817

COVER

20

6696297

SEAL OIL

21

6696303

SEAL O-RING

22

6695548

BOLT

23

6696610

SHAFT MOTOR

24

6696818

PLATE SWASH (MOTOR)

25

6694821

PIN

26

6696474

RETAINER, HOLDER

27

6696884

PLATE, VALVE MOTOR

28

6697190

COVER FRONT

29

6696232

BEARING NEEDLE

30

6696336

PIN

31

6694818

PIN

32

6694772

VALVE CHECK

33

6697668

SPRING

34

6694773

HOLDER, SPRING

35

6695577

BOLT WRENCH

36

6696234

VALVE, NEUTRAL ASSY

37

6696451

PLUG

38

6696304

SEAL O-RING

39

6694800

VALVE RELIEF

40

6694776

SPRING

41

6696450

PLUG

42

6696305

SEAL O-RING

43

6694816

SEAL OIL

44

6695810

COVER (C)

45

6696301

SEAL O-RING

46

6695576

BOLT WRENCH

47

6696302

SEAL O-RING

48

6697252

GASKET

49

6695600

BOLT WRENCH

50

6694819

PIN

51

6694796

PLATE

52

6694447

SEAL O-RING

53

6697135

HOUSING CASEING

54

6696231

BEARING NEEDLE

55

6694833

RING SNAP

56

6697859

KEY

57

6697292

PUMP GEROTOR

58

6696940

BOLT

59

6696752

WASHER SPRING
