Запчасти Bobcat CT225 FRONT WHEEL DRIVING GROUP DRIVE TRAIN

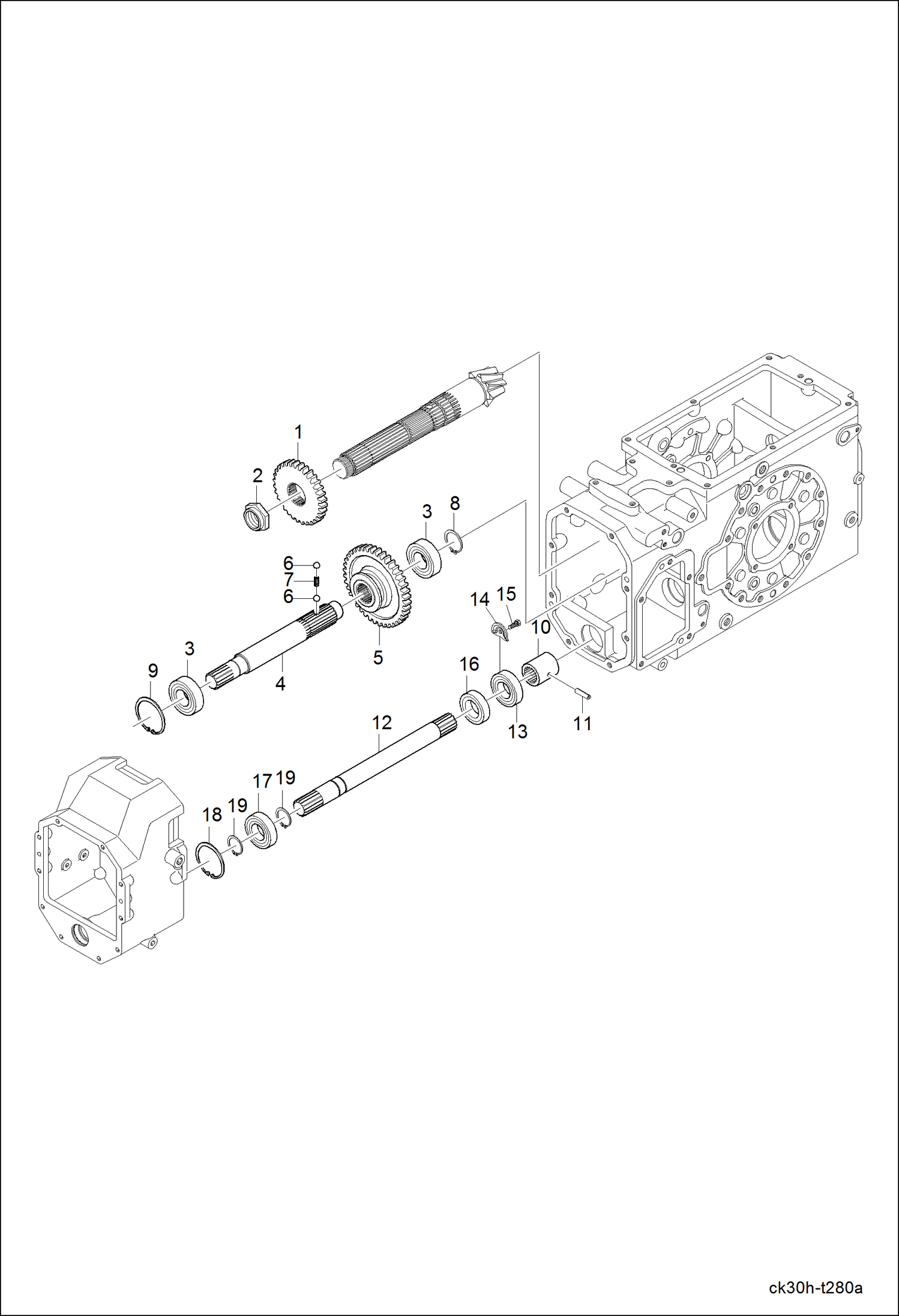

Схема запчастей Bobcat CT225 - FRONT WHEEL DRIVING GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

6696007

GEAR 30

2

6696257

NUT

3

6694241

BEARING BALL

4

6697645

SHAFT, DRIVE WHEEL

5

6695998

GEAR 39

6

6694231

BALL STEEL

7

6696739

SPRING

8

6694112

RING SNAP

9

6694100

RING SNAP

10

6695805

COUPLER

11

6697500

PIN SPRING

12

6696644

SHAFT FRONT WHEEL DRIVE

13

6694236

BEARING BALL

14

6696476

RETAINER BEARING

15

6695501

BOLT

16

6696574

SEAL OIL

17

6695460

BEARING BALL

18

6694099

RING SNAP

19

6694110

RING SNAP

Выбрано товаров: 19
