Запчасти Bobcat CT225 FRONT AXLE CASE GROUP DRIVE TRAIN

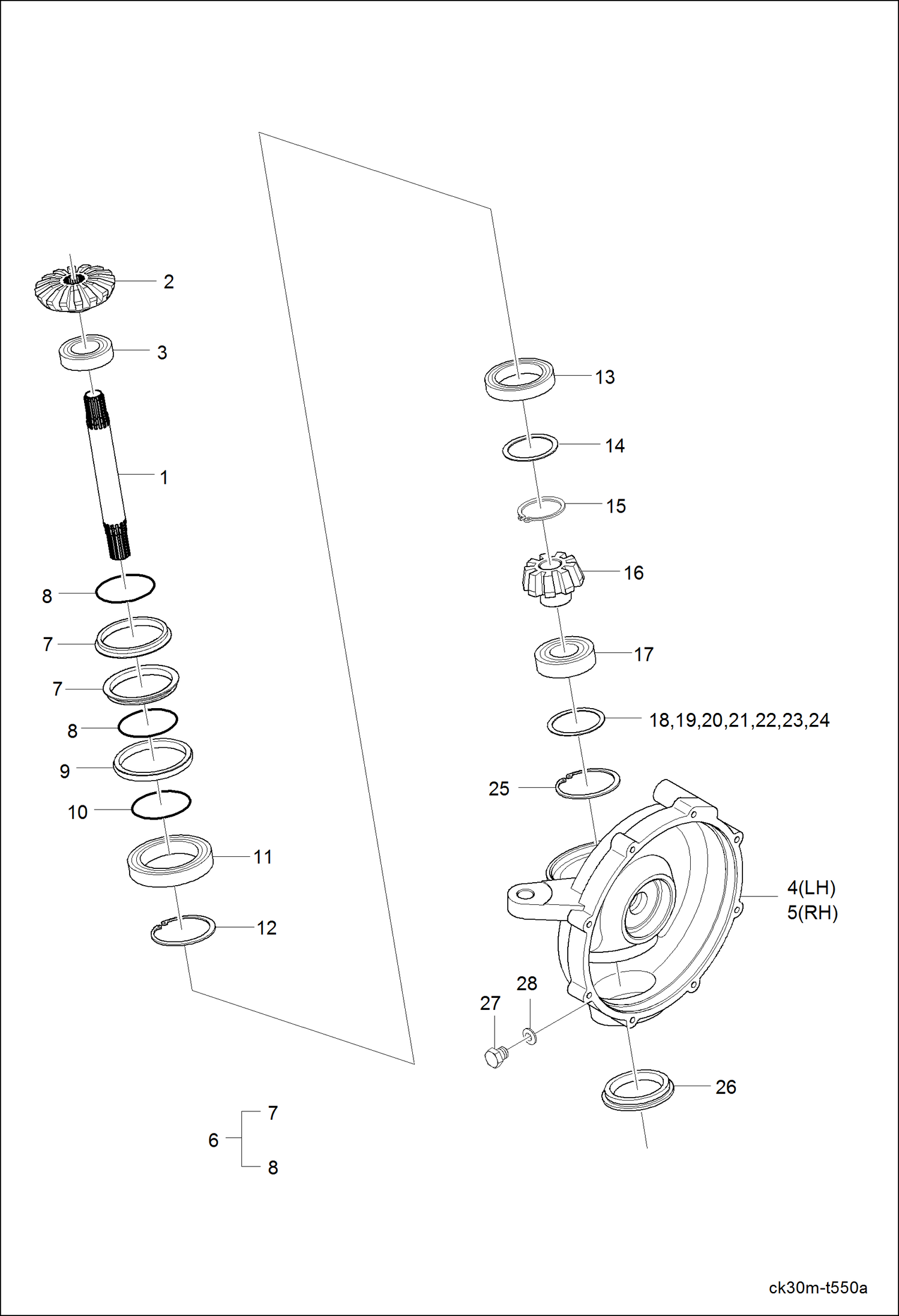

Схема запчастей Bobcat CT225 - FRONT AXLE CASE GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

6696628

SHAFT, BEVEL GEAR

2

6697286

GEAR BEVEL 16

3

6695451

BEARING BALL

4

6695705

HOUSING, AXLE FRONT LH

5

6695706

HOUSING, AXLE FRONT RH

6

6695411

SEAL, FLOATING ASSY

7

6696488

RING SEAL

8

6696283

SEAL O RING

9

6696131

HOUSING

10

6696276

SEAL O RING

11

6695455

BEARING BALL

12

6696493

RING SNAP

13

6694239

BEARING BALL

14

6696719

SPACER, AXLE FRONT

15

6696495

RING SNAP

16

6697281

GEAR 11 BEVEL

17

6694243

BEARING BALL

18

6696672

SHIM 1 0

19

6696660

SHIM

20

6696663

SHIM

21

6696673

SHIM 1 6

22

6696674

SHIM 1 8

23

6696675

SHIM 2 0

24

6696676

SHIM 2 2

25

6694103

RING SNAP

26

6696452

PLUG

27

6694222

PLUG

28

6694125

WASHER, SEALING

Выбрано товаров: 28
