Запчасти Bobcat CT225 FRONT AXLE BRACKET GROUP DRIVE TRAIN

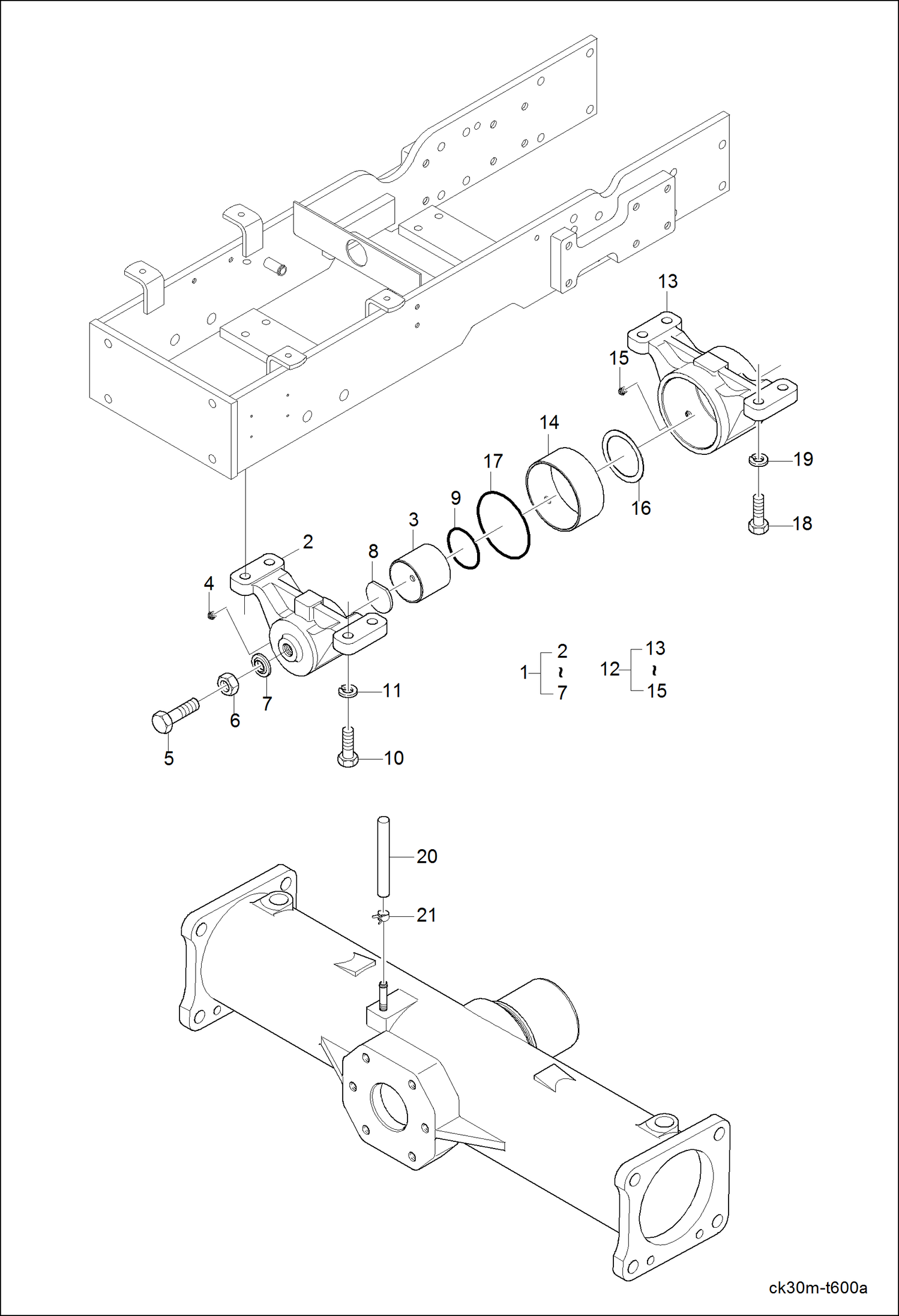

Схема запчастей Bobcat CT225 - FRONT AXLE BRACKET GROUP DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

6695369

BRACKET, ASSY FRONT

2

6695636

BRACKET, FRONT

3

6695658

BUSHING DX

4

6694227

FITTING, GREASE

5

6694389

BOLT

6

6694055

NUT

7

6694388

WASHER SEAL

8

6695739

BUSHING

9

6696271

O-RING

10

6695535

BOLT

10

7002800

BOLT W/washer

11

6697776

WASHER SPRING

12

6695390

BRACKET, REAR ASSY

13

6695637

BRACKET, REAR

14

6695662

BUSHING DX

15

6694227

FITTING, GREASE

16

6695762

WASHER THRUST

17

6696277

SEAL O RING

18

6695535

BOLT

18

7002800

BOLT W/washer

19

6697776

WASHER SPRING

20

6695051

HOSE OVER FLOW

21

6694323

CLAMP, HOSE

Выбрано товаров: 23
