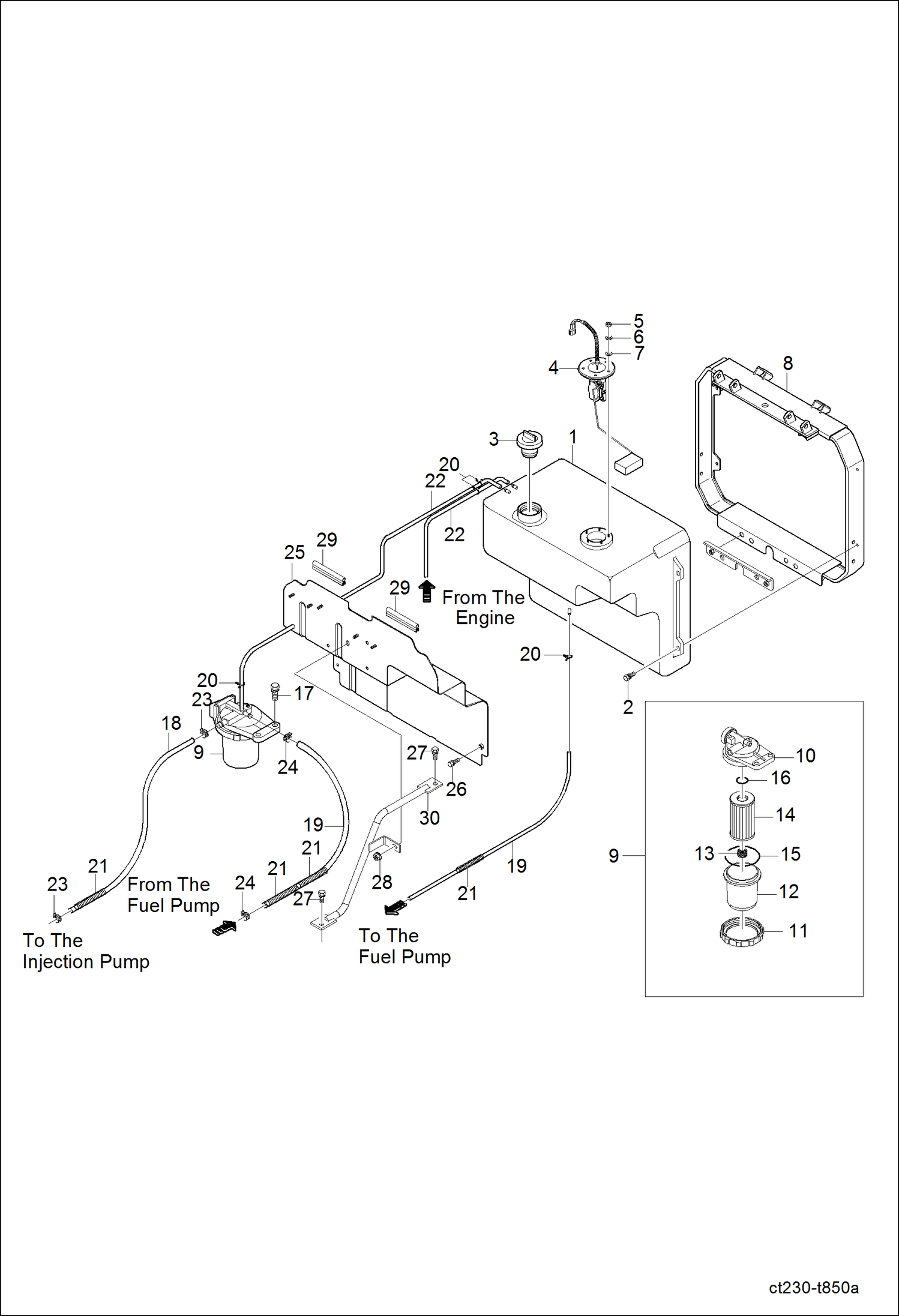

Запчасти Bobcat CT225 FUEL TANK GROUP (S/N ABFJ11001 & Above) MAIN FRAME

1

6697721

TANK, FUEL

2

6697058

BOLT

3

6695370

CAP, FUEL

3

6661696

CAP, FUEL LOCKING

3

6587458

KEY

4

6697762

SENSOR, FUEL

5

6694037

NUT

6

6694090

WASHER SPRING

7

6694076

WASHER PLAIN

8

6697693

SUPPORT, TANK FUEL

9

6696996

FILTER FUEL

10

6697045

HOUSING BODY FUEL FILTER

11

6696486

RING RETAINER

12

6696463

HOUSING FILTER

13

6696732

SPRING

14

6695912

FILTER FUEL ELEMENT

15

6694162

SEAL O RING

16

6694161

SEAL O RING

17

6693965

BOLT

18

6696101

HOSE

19

6696102

HOSE, FUEL

20

6694297

CLAMP, HOSE

21

6694403

GUARD, SPRING

22

6696109

HOSE FUEL

23

6697140

CLAMP, HOSE

24

6697140

CLAMP, HOSE

25

6697524

PLATE CUT-OFF

26

6697051

BOLT

27

6697055

BOLT

28

6696258

NUT FLANGE

29

6696542

SEAL, SHUTTER PLATE

30

6697344

HOLDER, SHUTTLE
