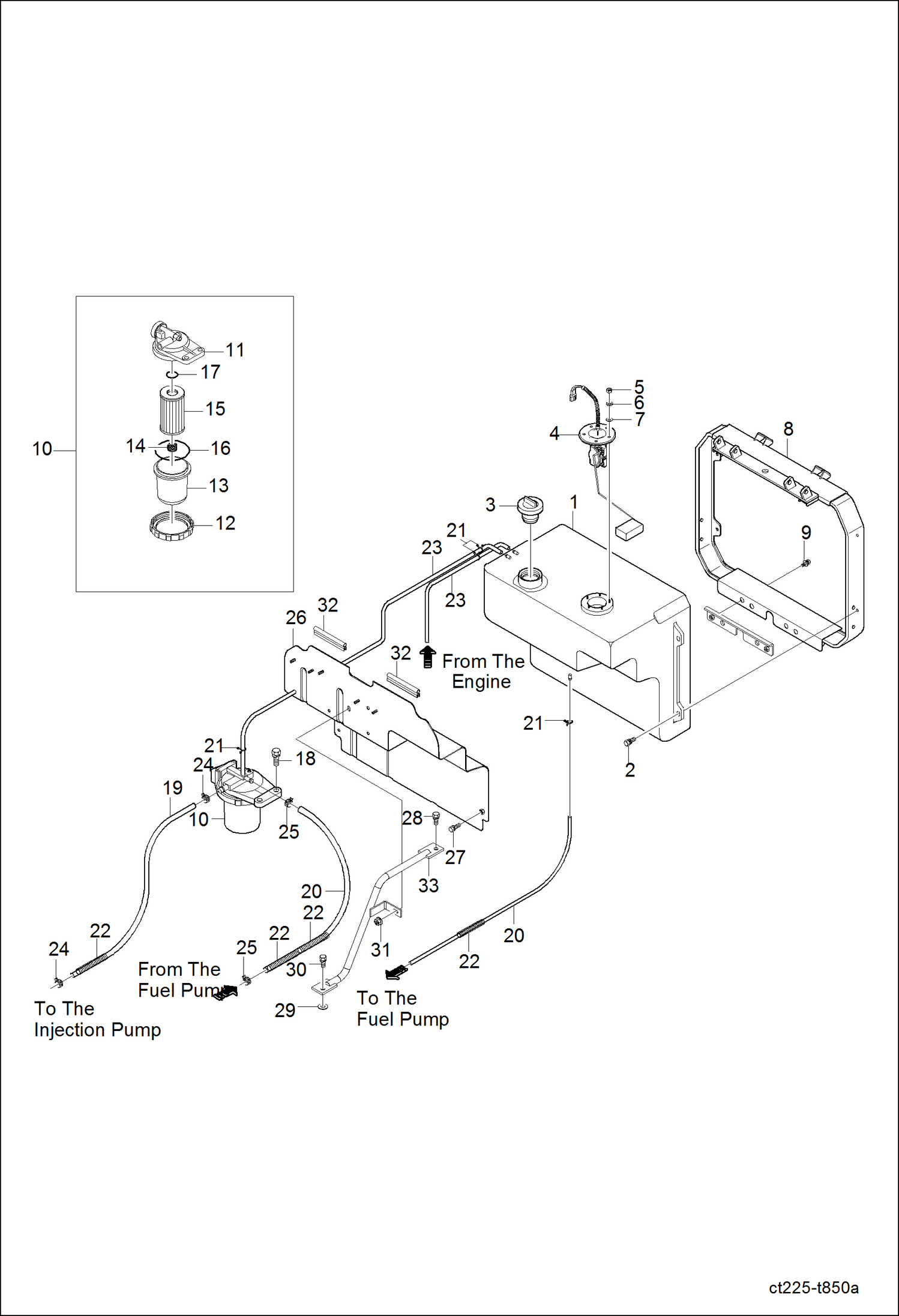

Запчасти Bobcat CT225 FUEL TANK GROUP (S/N A59B11001 & Above) MAIN FRAME

1

6697721

TANK, FUEL

2

6697058

BOLT

3

6695370

CAP, FUEL

3

6661696

CAP, FUEL LOCKING

3

6587458

KEY

4

6697762

SENSOR, FUEL

5

6694037

NUT

6

6694090

WASHER SPRING

7

6694076

WASHER PLAIN

8

6697693

SUPPORT, TANK FUEL

9

6697054

BOLT

10

6696996

FILTER FUEL

11

6697045

HOUSING BODY FUEL FILTER

12

6696486

RING RETAINER

13

6696463

HOUSING FILTER

14

6696732

SPRING

15

6695912

FILTER FUEL ELEMENT

16

6694162

SEAL O RING

17

6694161

SEAL O RING

18

6693965

BOLT

19

6696101

HOSE

20

6696102

HOSE, FUEL

21

6694297

CLAMP, HOSE

22

6694403

GUARD, SPRING

23

6696109

HOSE FUEL

24

6697140

CLAMP, HOSE

25

6697140

CLAMP, HOSE

26

6697524

PLATE CUT-OFF

27

6697051

BOLT

28

6697055

BOLT

29

6696920

WASHER PLAIN

30

6693965

BOLT

30

6697055

BOLT

31

6696258

NUT FLANGE

32

6696542

SEAL, SHUTTER PLATE

33

6697344

HOLDER, SHUTTLE
