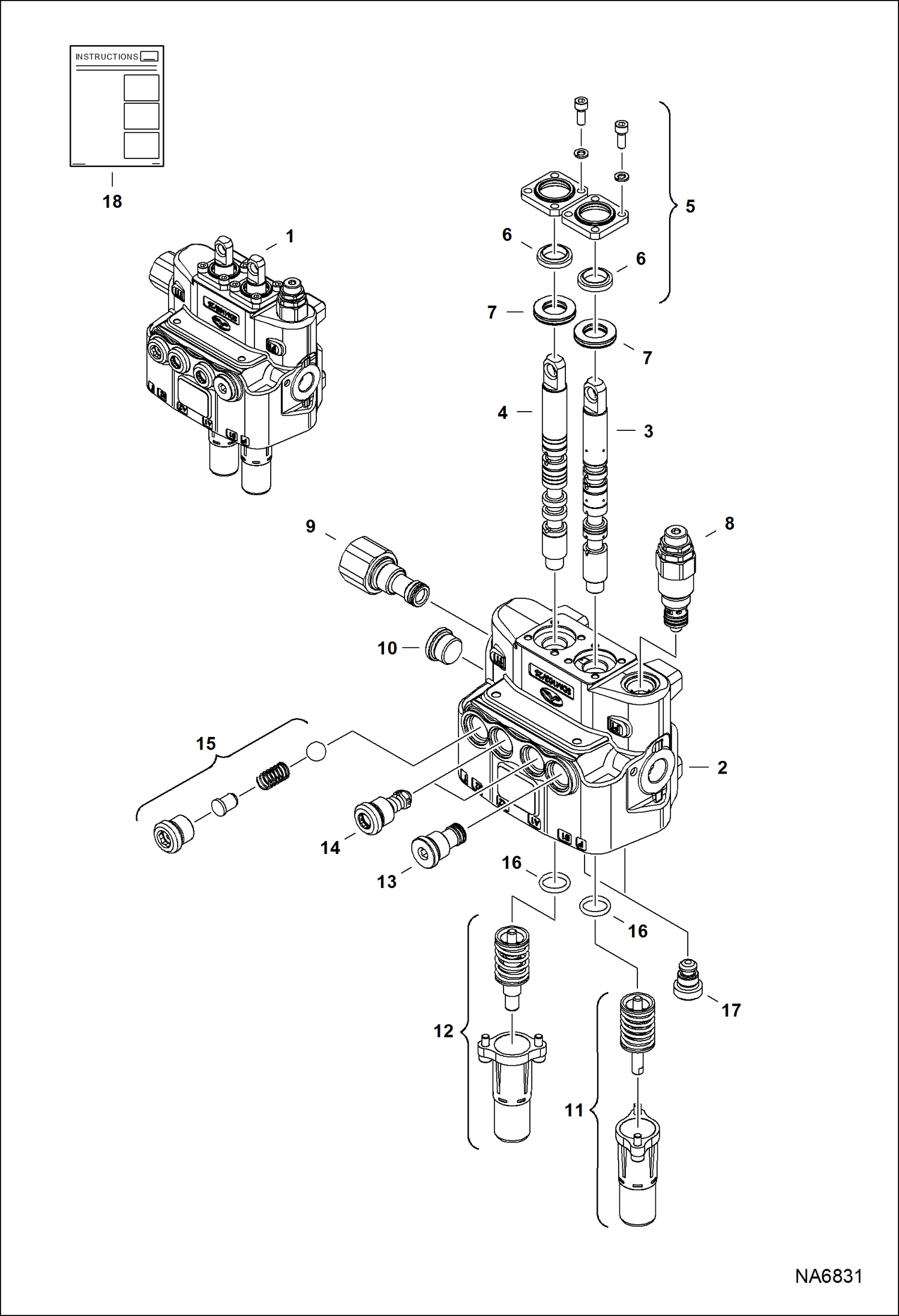

Запчасти Bobcat CT225 MULTI-FUNCTION VALVE ACCESSORIES & OPTIONS

1

7212674

VALVE, MULTI-FUNCTION Ref. 2-17 - Also Order Ref. 18 instructions - Was 7220958 - A

2

HOUSING, VALVE NLA - Order Ref. 1

3

SPOOL NLA - Order Ref. 1

4

SPOOL NLA - Order Ref. 1

5

7025565

KIT, FLANGE

6

7025566

SEAL, SHAFT

7

7025598

RING, SEAL

8

7025567

VALVE, RELIEF MAIN

9

7025568

FITTING, HYD

10

6679600

PLUG

11

7025569

KIT, COVER END

12

7025570

KIT, COVER END

13

7025571

PLUG

14

7025572

VALVE, RELIEF PORT

15

7025573

KIT, VALVE RELIEF PORT

16

6679499

O-RING

17

6680092

VALVE, LOCK LOAD

18

6990452

INSTRUCTIONS
