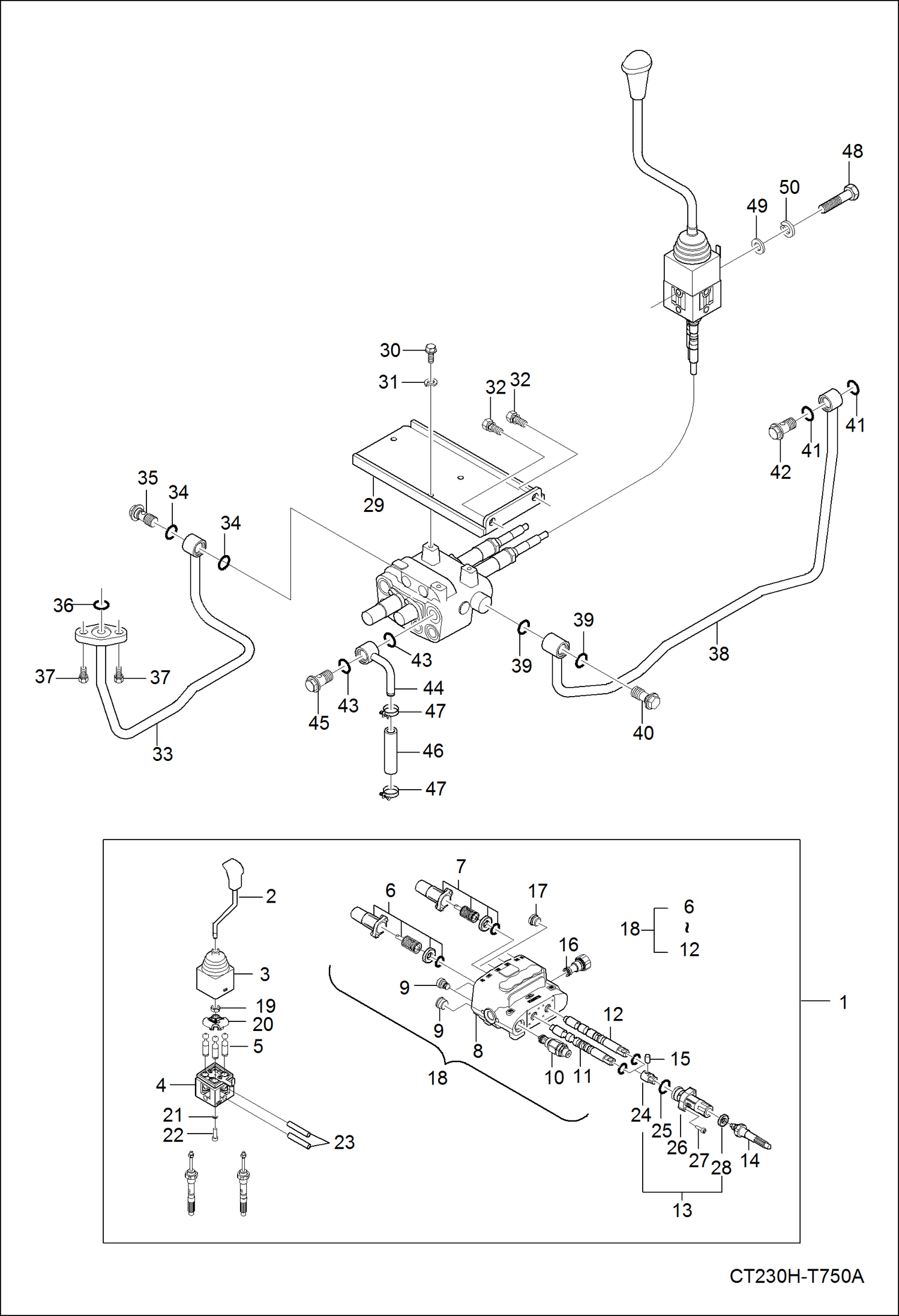

Запчасти Bobcat CT225 JOYSTICK VALVE GROUP(HST) ACCESSORIES & OPTIONS

1

VALVE ASSY JOYSTICK NLA - Order individual components Ref. 2-17 - Was 6697766 - A

2

6697398

LEVER

3

6697079

BOOT

4

7000817

HOUSING, JOYSTICK

5

7000827

PISTON, VALVE JOYSTICK Was 6697387 - A

6

6696727

CAP, END ASSY

7

6696728

BONNET, DETENT HYD VALVE

8

HOUSING, VALVE JOYSTICK NLA - Order Ref. 18 - Was 6697042 - A

9

6696449

PLUG

10

6696890

VALVE RELIEF

11

6696725

SPOOL

12

6696726

SPOOL

13

6696835

KIT, ADAPTER

14

6695667

CABLE

15

6696332

PIN

16

6696457

PLUG

17

6696448

PLUG

18

7012834

VALVE, JOYSTICK Ref. 6-12 - Was 7000453 - A

19

7008988

NUT

20

7000825

SELECTOR

21

7000822

WASHER, SPRING

22

7000821

BOLT

23

7000819

RING

24

7000826

CONNECTOR

25

7000818

O RING

26

7000823

ENDCAP

26

7000823

ENDCAP

27

7000820

BOLT

28

7000824

FLANGE, MOUNTING

29

6697683

SUPPORT, JOYSTICK

30

6695575

BOLT

31

6697775

WASHER SPRING

32

6695517

BOLT

33

6697744

TUBE HYD

34

6694137

O-RING

35

6696165

BOLT JOINT

36

6694136

O-RING

37

6697054

BOLT 8 mm x 20 mm

37

6697056

BOLT 8 mm x 25 mm long

38

6697734

TUBE J2 HYD

39

6694137

O-RING

40

6696165

BOLT JOINT

41

6694137

O-RING

42

6696165

BOLT JOINT

43

6694137

O-RING

44

6697733

TUBE J RETURN

45

6695562

BOLT JOINT

46

6697360

HOSE, RETURN

47

7000814

CLAMP, HOSE Was 6694674 - A

48

6695506

BOLT, W/WASHER Was 6695525 - B

49

6697774

WASHER

50

6697775

WASHER SPRING

51

7012848

VALVE, CHECK
