Запчасти Bobcat CT225 JOYSTICK VALVE KIT ACCESSORIES & OPTIONS

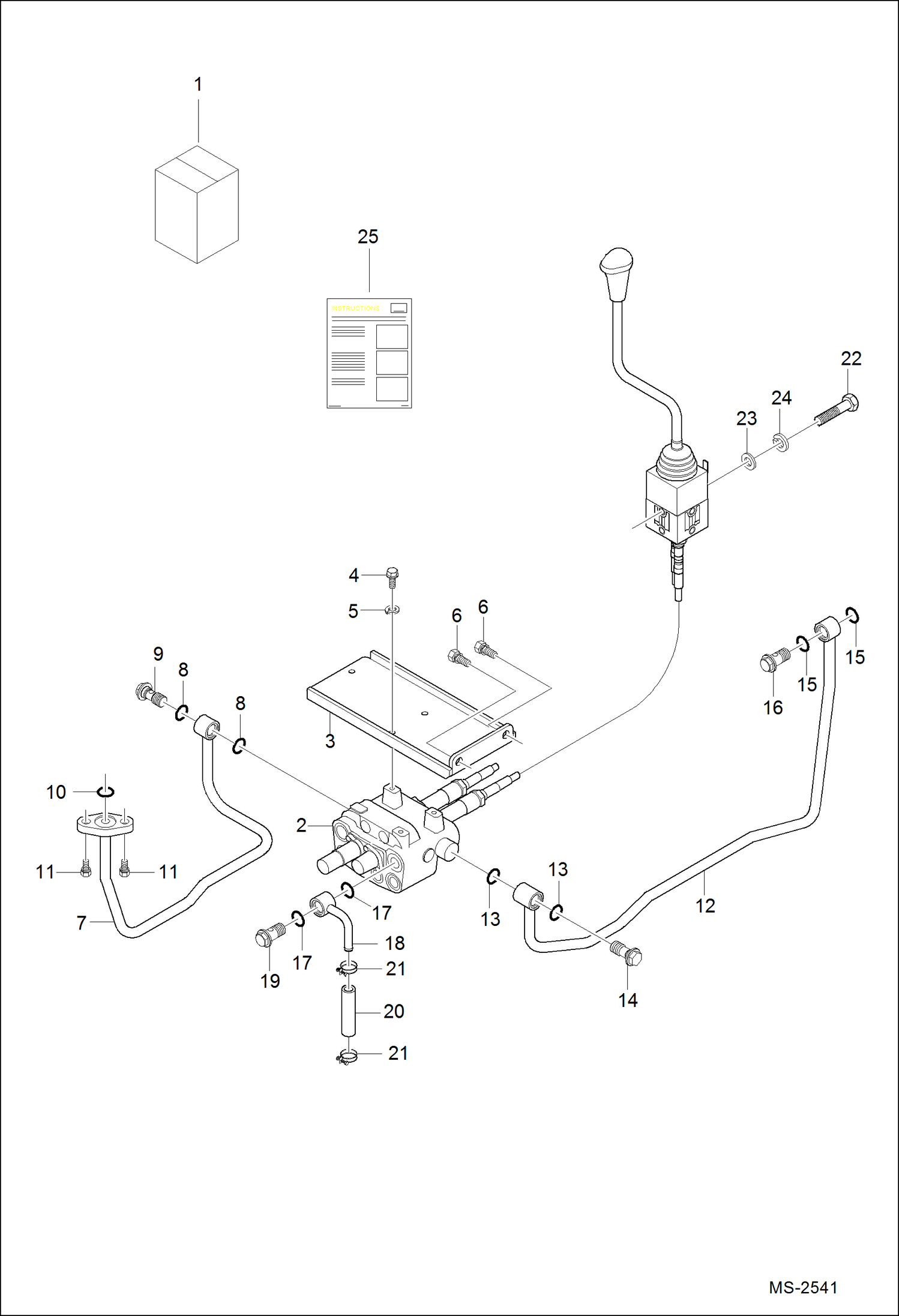

Схема запчастей Bobcat CT225 - JOYSTICK VALVE KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

JOYSTICK, VALVE ASSY NLA - W/Walvoil valve - Ref. 2-25 - Order 7199760 - Was 7150491 - A

1

7199760

KIT, JOYSTICK VALVE W/Hydrotech valve - Ref. 2-25

2

VALVE ASSY JOYSTICK See Illustration JOYSTICK VALVE GROUP(HST)/ CT230H-T750A - NLA - Order individual components - Was 6697766 - A

3

6697683

SUPPORT, JOYSTICK

4

6695575

BOLT

5

6697775

WASHER SPRING

6

6695517

BOLT

7

6697744

TUBE HYD

8

6694137

O-RING

9

6696165

BOLT JOINT

10

6694136

O-RING

11

6697054

BOLT

12

6697734

TUBE J2 HYD

13

6694137

O-RING

14

6696165

BOLT JOINT

15

6694137

O-RING

16

6696165

BOLT JOINT

17

6694137

O-RING

18

6697733

TUBE J RETURN

19

6695562

BOLT JOINT

20

6697360

HOSE, RETURN

21

7000814

CLAMP, HOSE Was 6694674 - A

22

6695525

BOLT

23

6697774

WASHER

24

6697775

WASHER SPRING

25

6986753

INSTRUCTIONS

Выбрано товаров: 26
