Запчасти Bobcat CT225 HEATER ASSY (W/Single Rear Window) ACCESSORIES & OPTIONS

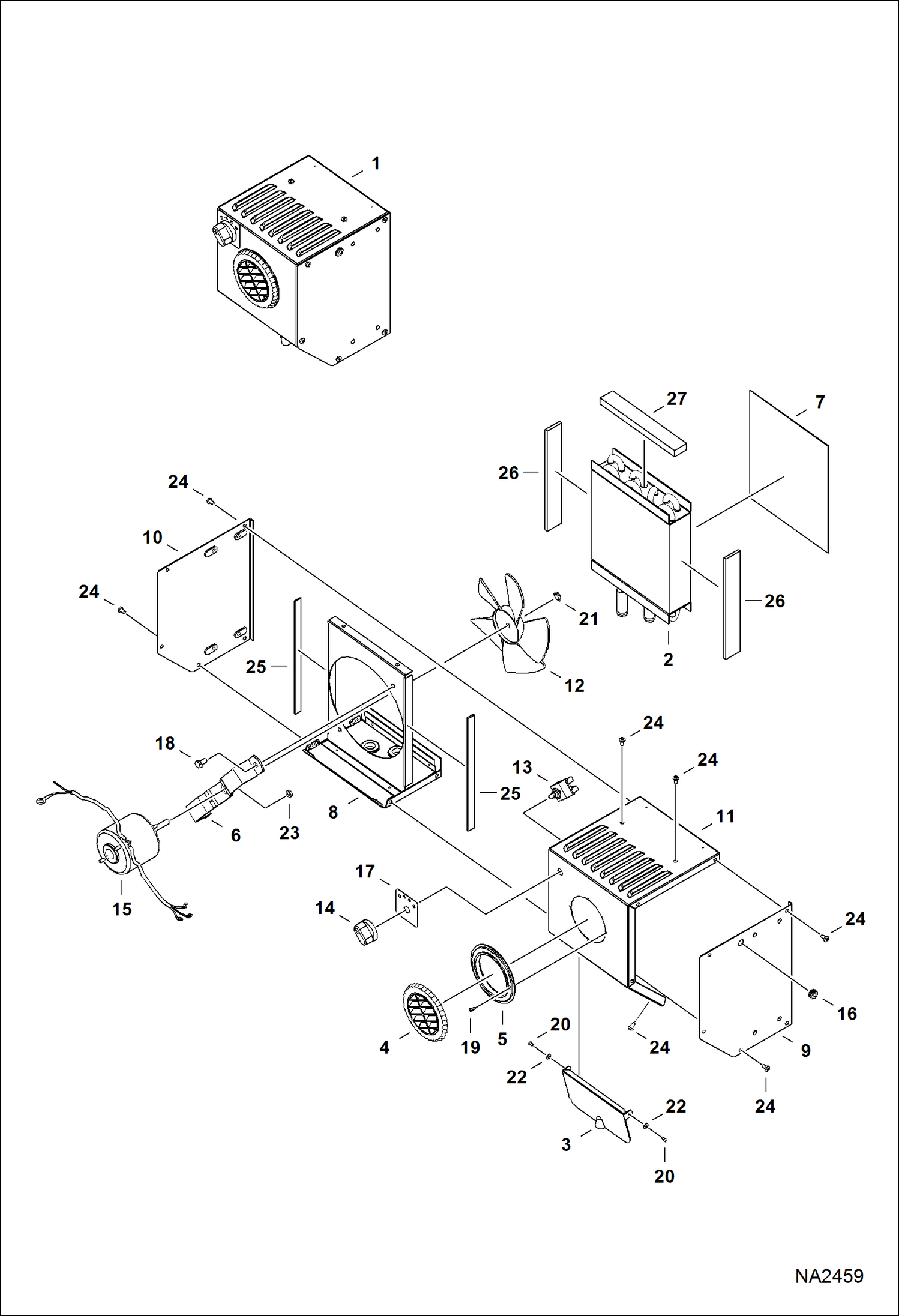

Схема запчастей Bobcat CT225 - HEATER ASSY (W/Single Rear Window) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7010530

HVAC ASSY Ref. 2-27

2

7011926

COIL, HEATER

3

7011927

DOOR

4

7011928

LOUVER

5

6675179

FLANGE

6

7011929

BRACKET

7

7011930

SCREEN, EXCHANGER

8

7011931

BASE ASSY

9

7011932

COVER, RH

10

7011933

COVER, LH

11

7011934

COVER

12

7011935

FAN

13

6675176

SWITCH

14

6684940

KNOB

15

7011936

MOTOR, FAN

16

6684947

GROMMET

17

7011937

DECAL

18

7011938

SCREW, MACHINE

19

6684951

SCREW

20

7003466

RIVET, POP

21

6679674

RETAINER

22

7011939

WASHER, SPRING

23

7011940

NUT, LOCK

24

7011941

SCREW, MACHINE

25

INSULATION NLA - .50'' x 8.85'' (1.25 mm x 225 mm)

26

INSULATION NLA - 1.2'' x 7.875'' (30 mm x 200 mm)

27

INSULATION NLA - 1'' x 6.75'' (25 mm x 170 mm)

Выбрано товаров: 27
