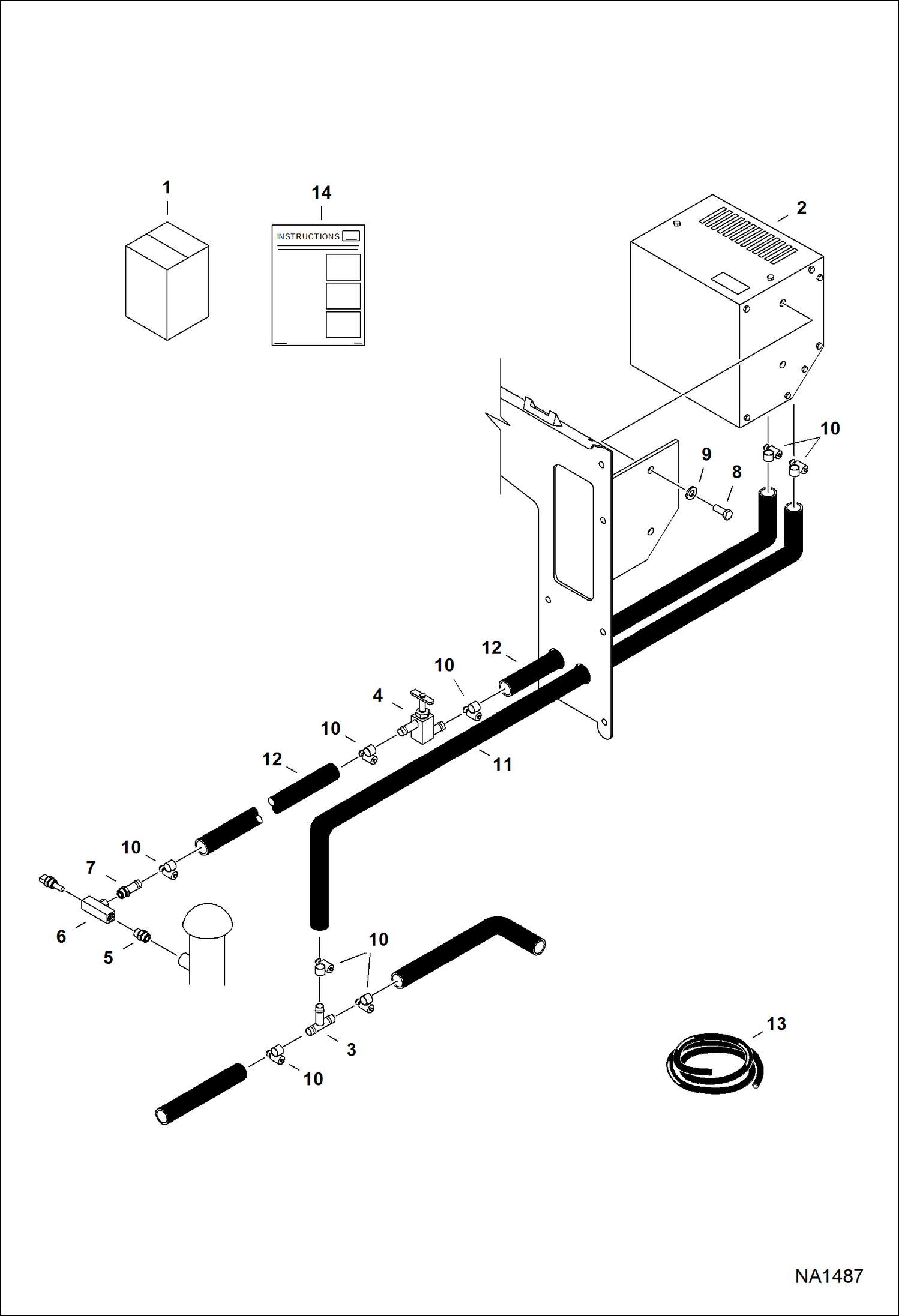

Запчасти Bobcat CT225 HEATER KIT (W/Single Rear Window) ACCESSORIES & OPTIONS

1

6988508

HEATER W/KIT Ref. 2-14

2

7010530

HVAC ASSY See Illustration HEATER ASSY/ NA2459

3

7010531

FITTING, TEE

4

7010532

VALVE, SHUTOFF

5

7012074

FITTING pipe nipple

6

7012075

FITTING, TEE

7

7012076

FITTING hose nipple

8

17C512

BOLT 5

9

25E15

WASHER

10

42H10

HOSECLAM5

11

HOSE, HEATER NLA - 78'' (1980 mm) long - order Ref. 13

12

HOSE, HEATER NLA - 52'' (1320 mm) long - order Ref. 13

13

889269

HOSE BULK/FT bulk - sold per foot

14

6987427

INSTRUCTIONS
