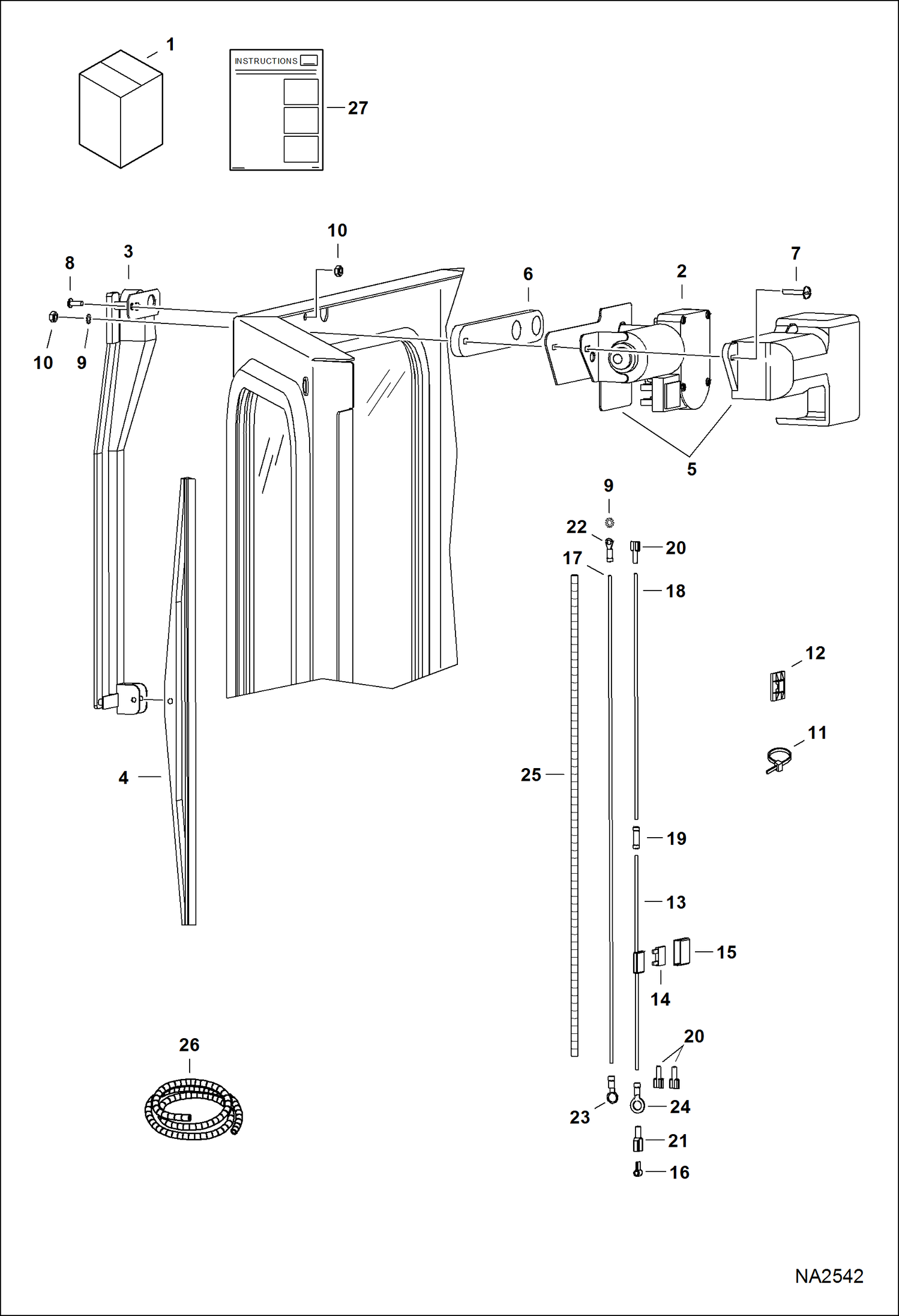

Запчасти Bobcat CT225 CAB REAR WIPER KIT (W/Rear Corner Windows) ACCESSORIES & OPTIONS

1

7210122

KIT, WIPER REAR CAB Ref. 2-27

2

7023758

MOTOR, WIPER

3

7022301

ARM, WIPER

4

7022300

BLADE, WIPER

5

7023255

COVER, MOTOR WIPER

6

7023759

SPACER, WIPER

7

7023760

SCREW

8

7021689

SCREW

9

12E10

WASHER

10

50D10

LOCKNUT

11

6682345

STRAP, TIE 8

12

7021762

MOUNT, TIE STAP

13

7022308

HOLDER, FUSE

14

7001051

FUSE 7.5A

15

7022310

COVER, FUSE

16

7023257

CONNECTOR, TAP ELECTRICAL

17

WIRE, ELECTRICAL NSS - black (14ga) - 4875 mm (16') long - purchase locally

18

WIRE, ELECTRICAL NLA - red (14 ga) - 4570 mm (15') long - purchase locally

19

CONNECTOR, BUTT NSS - purchase locally

20

CONNECTOR, SPADE FEMALE NSS - purchase locally

21

CONNECTOR, SPADE MALE NSS - purchase locally

22

TERMINAL, RING NSS - #10 - purchase locally

23

TERMINAL, RING NSS - .312'' - purchase locally

24

TERMINAL, RING NSS - .375'' - purchase locally

25

CONDUIT NLA - 4570 mm (15') long - Order Ref 26

26

6584978

CONDUIT bulk - sold per foot

27

6990201

INSTRUCTIONS
