Запчасти Bobcat CT225 CAB FRONT WIPER KIT (W/Rear Corner Windows) ACCESSORIES & OPTIONS

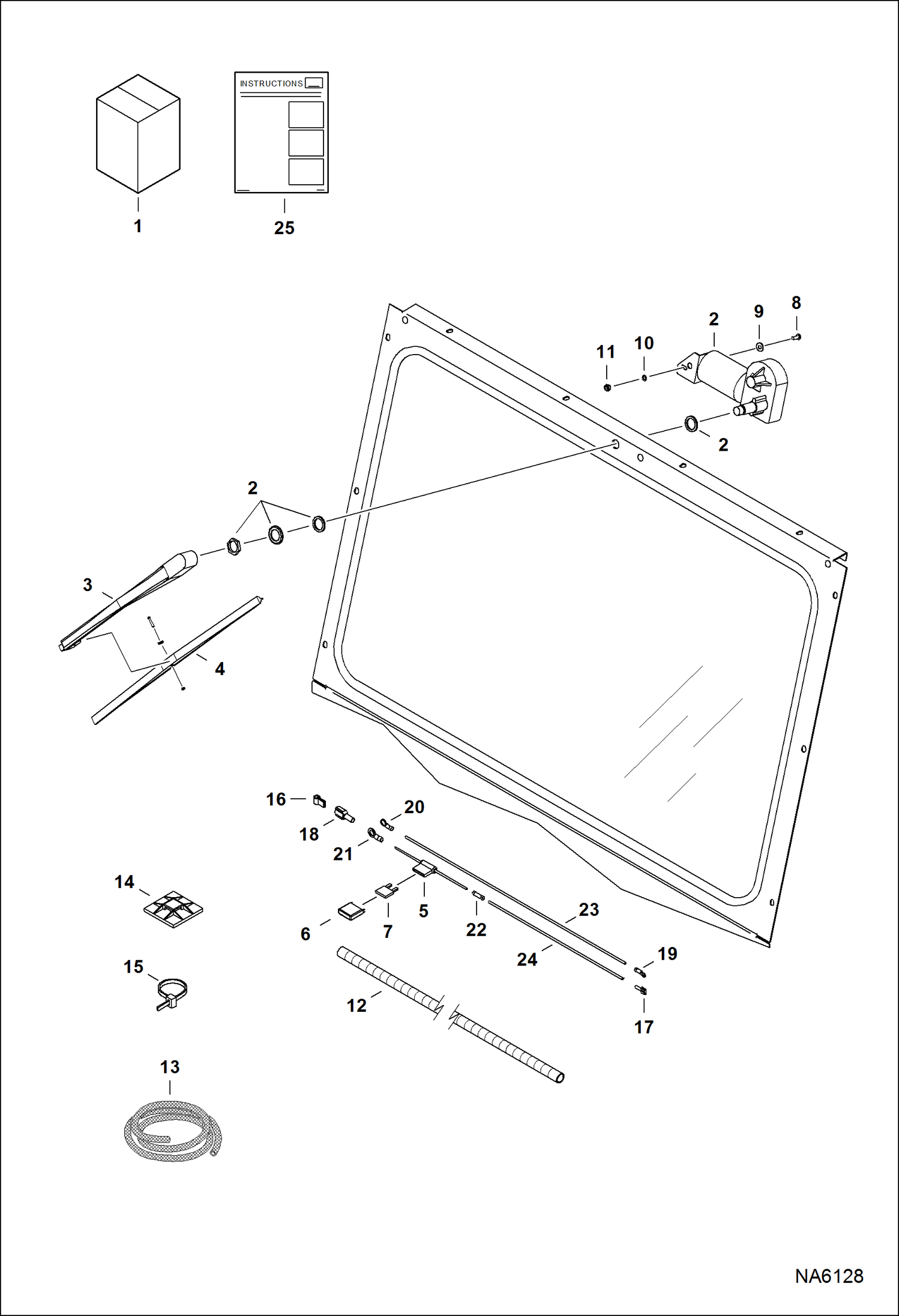

Схема запчастей Bobcat CT225 - CAB FRONT WIPER KIT (W/Rear Corner Windows) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7206576

KIT, WIPER FRONT CAB Ref. 2-25

2

7022296

MOTOR, WIPER

3

7021753

ARM, WIPER

4

7022300

BLADE, WIPER

5

7022308

HOLDER, FUSE

6

7022310

COVER, FUSE

7

6654803

FUSE 5A

8

7022700

SCREW Was 21G1008 - B

9

7021735

WASHER Was 25E10 - B

10

12E10

WASHER

11

50D10

LOCKNUT

12

CONDUIT NLA - 2440 mm (8' ) long - Order Ref. 16

13

6584978

CONDUIT bulk - sold per foot

14

7021762

MOUNT, TIE STAP

15

6682345

STRAP, TIE 8

16

7023257

CONNECTOR, TAP ELECTRICAL

17

CONNECTOR, SPADE FEMALE NSS - purchase locally

18

CONNECTOR, SPADE MALE NSS - purchase locally

19

TERMINAL, RING NSS - 3/16 '' - purchase locally

20

TERMINAL, RING NSS - 5/16 '' - purchase locally

21

TERMINAL, RING NSS - 3/8 '' - purchase locally

22

CONNECTOR, BUTT NSS - purchase locally

23

WIRE, ELECTRICAL NSS - black (14 ga) - 3048 mm (10') long - purchase locally

24

WIRE, ELECTRICAL NSS - green (14 ga) - 2745 mm (9') long - purchase locally

25

6990200

INSTRUCTIONS

Выбрано товаров: 25
