Запчасти Bobcat CT225 CAB KIT (W/Rear Corner Windows) (Top, Front & Rear Panels) ACCESSORIES & OPTIONS

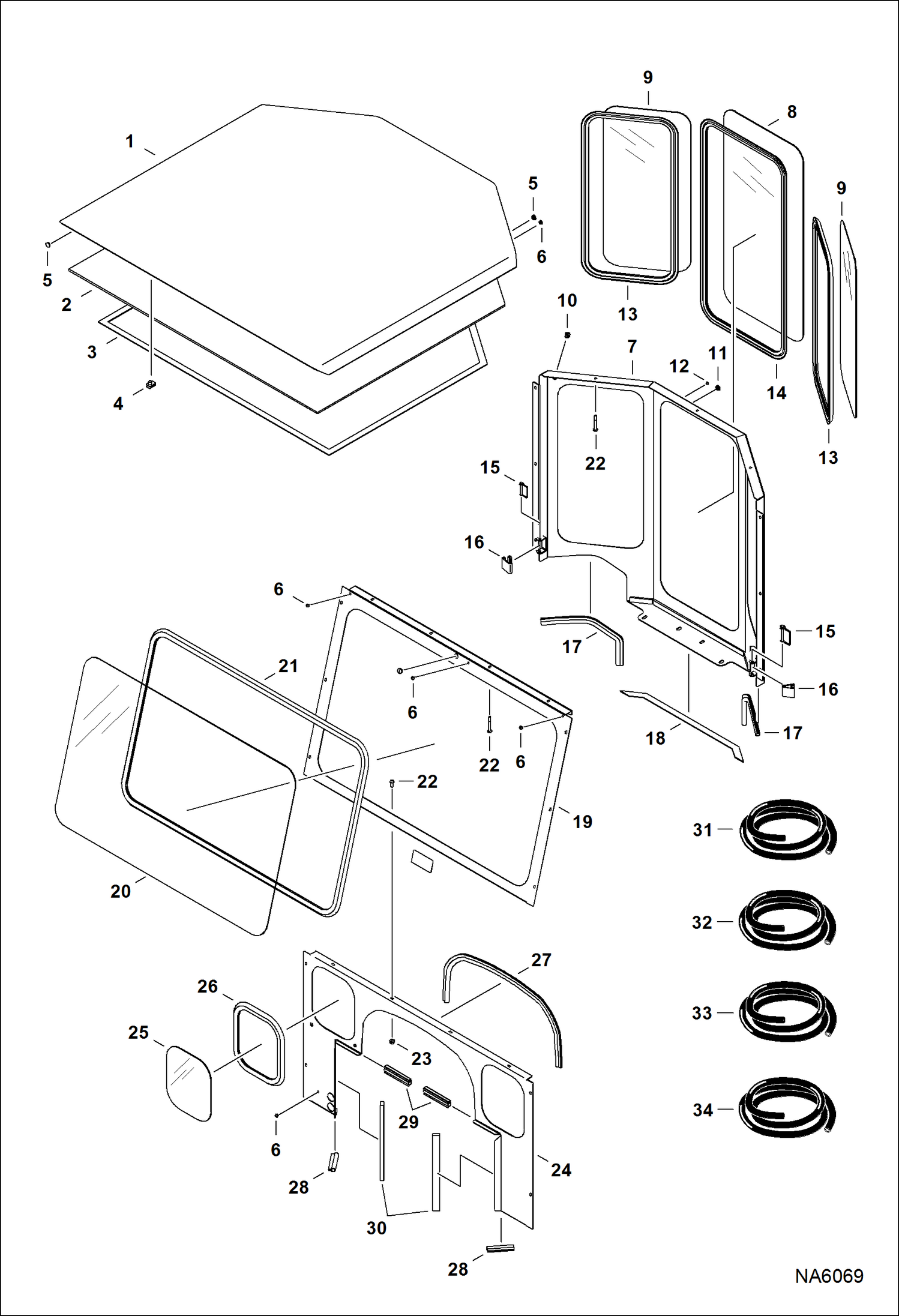

Схема запчастей Bobcat CT225 - CAB KIT (W/Rear Corner Windows) (Top, Front & Rear Panels) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7022075

PANEL, CAB TOP

2

7022072

HEADLINER

3

SEAL, FOAM NLA - Order Ref. 31

4

7022087

NUT

5

7022080

PLUG, HOLE

6

7021713

PLUG

7

7022078

PANEL, REAR W/A

8

7022094

WINDOW, REAR

9

7022095

WINDOW, CORNER REAR

10

7022082

GROMMET

11

7022083

PLUG, HOLE

12

7021711

PLUG

13

SEAL, WINDOW RUBBER NLA - Order Ref. 32

14

SEAL, WINDOW RUBBER NLA - Order Ref. 32

15

7022085

PIN, LOCK

16

7022068

STRAP, DOOR

17

SEAL, BULB NLA - Order Ref. 34

18

SEAL, FOAM NLA - Order Ref. 31

19

7022070

PANEL, FRONT

20

7022096

WINDOW, FRONT

21

SEAL, WINDOW RUBBER NLA - Order Ref. 32

22

7023279

BOLT SOC HD Was 25G512 - B

23

7023280

NUT FLANGE Was 57D5 - D

24

7022069

PANEL, HOOD

25

7022097

WINDOW, FRONT LOWER

26

SEAL, WINDOW RUBBER NLA - Order Ref. 32

27

SEAL, BULB NLA - Order Ref. 34

28

SEAL, BULB NLA - Order Ref. 34

29

SEAL, BULB NLA - Order Ref. 33

30

SEAL, FOAM NLA - Order Ref. 31

31

7021719

SEAL BULK DOOR bulk - sold per foot

32

7021720

SEAL BULK WINDOW bulk - sold per foot

33

7021727

SEAL BULK DOOR bulk - sold per foot

34

7022283

SEAL, BULK BULB bulk - sold per foot

Выбрано товаров: 34
