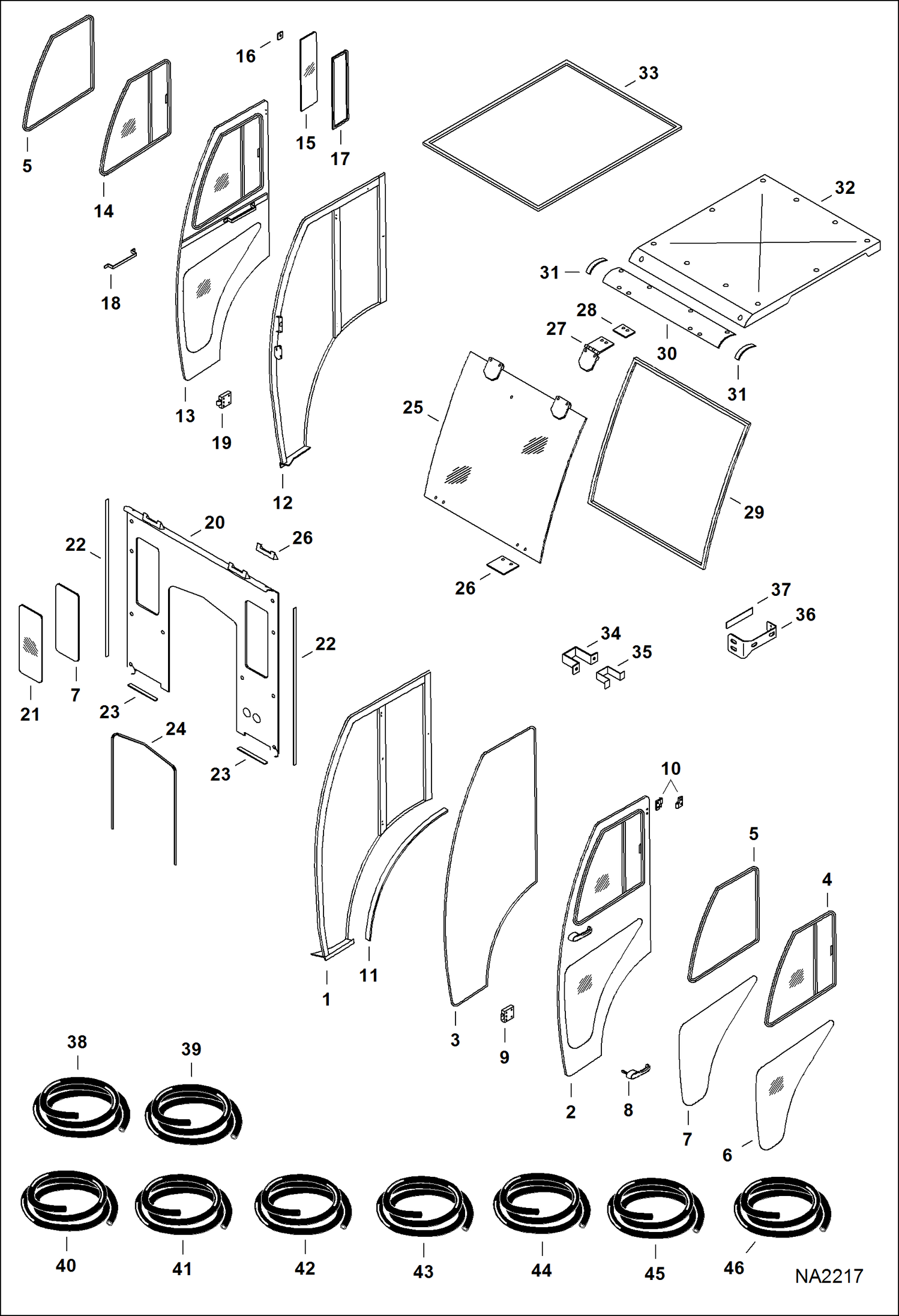

Запчасти Bobcat CT225 CAB KIT (W/Single Rear Window) (Service Components) ACCESSORIES & OPTIONS
№
Артикул
Название
Примечание
Количество
1
7010079
FRAME, CAB LH - W/Ref. 11 & 15-17
2
7010083
DOOR, CAB ASSY LH - W/Ref. 3-9
3
SEAL, DOOR NLA - 175'' (4445 mm) long - Order Ref. 42
4
7010092
WINDOW, DOOR SLIDING ASSY LH
5
SEAL, WINDOW SLIDER NLA - 84'' (2134 mm) long Order Ref. 46
6
WINDOW, DOOR LOWER NLA - plexiglass - purchase locally
7
SEAL, WINDOW NLA - Order Ref. 46 as needed
8
7010091
HANDLE, LATCH DOOR W/key
9
7010090
LATCH, DOOR CAB LH
10
7010088
KIT, HINGE DOOR complete set
11
SEAL, FRAME NLA - 40'' (1016 mm) long - Order Ref. 45
12
7010080
FRAME, CAB RH - W/Ref. 11 & 15-17
13
7010084
DOOR, CAB ASSY RH - W/Ref. 5-8, 14, 18 & 19
14
7010093
WINDOW, DOOR SLIDING ASSY RH
15
7010231
WINDOW, CAB SIDE FIXED
16
7010232
CLIP
17
SEAL, WINDOW SIDE NLA - 84'' (2134 mm) long - Order Ref. 39
18
7010233
HANDLE, GRIP
19
7010089
LATCH, DOOR CAB RH
20
7010074
COWL W/Ref. 21-24
21
WINDOW, FRONT LOWER NLA - plexiglass - purchase locally
22
SEAL, COWL SIDE NLA - 31'' (790 mm) long - Order Ref. 45
23
SEAL, COWL BOTTOM NLA - 7'' (178 mm) long - Order Ref. 41
24
SEAL, COWL MIDDLE NLA - 67'' (1700 mm) long - Order Ref. 44
25
7010072
WINDOW, CAB FRONT W/Ref. 26-29
26
7010097
KIT, LATCH window - complete set
27
7010095
KIT, HINGE WINDOW complete set
28
7010096
KIT, HINGE WINDOW spacer - complete set
29
SEAL, WINDOW FRONT NLA - 150'' (3800 mm) long - Order Ref. 43
30
7010073
SUPPORT, WINDOW W/Ref. 31
31
SEAL, SUPPORT NLA - 7'' (178 mm) long - Order Ref. 45
32
7010071
PANEL, CAB TOP W/Ref. 33
33
TRIM, ROOF NLA - 165'' (4200 mm) long - Order Ref. 38
34
7010075
BRACKET, ROPS W/Ref. 35
35
SEAL, ROLL BAR NLA - 7'' (178 mm) long - Order Ref. 40
36
7010076
BRACKET, MOUNT REAR W/Ref. 37
37
SEAL, ROLL BAR NLA - 4'' (100 mm) long - Order Ref. 40
38
7010101
SEAL, BULK
39
7010102
SEAL, BULK
40
7010103
SEAL, BULK
41
7010104
SEAL, BULK
42
7010105
SEAL, BULK
43
7010106
SEAL, BULK
44
7010107
SEAL, BULK
45
7010108
SEAL, BULK
46
7010230
SEAL, BULK (PER FOOT)
Выбрано товаров: 46
