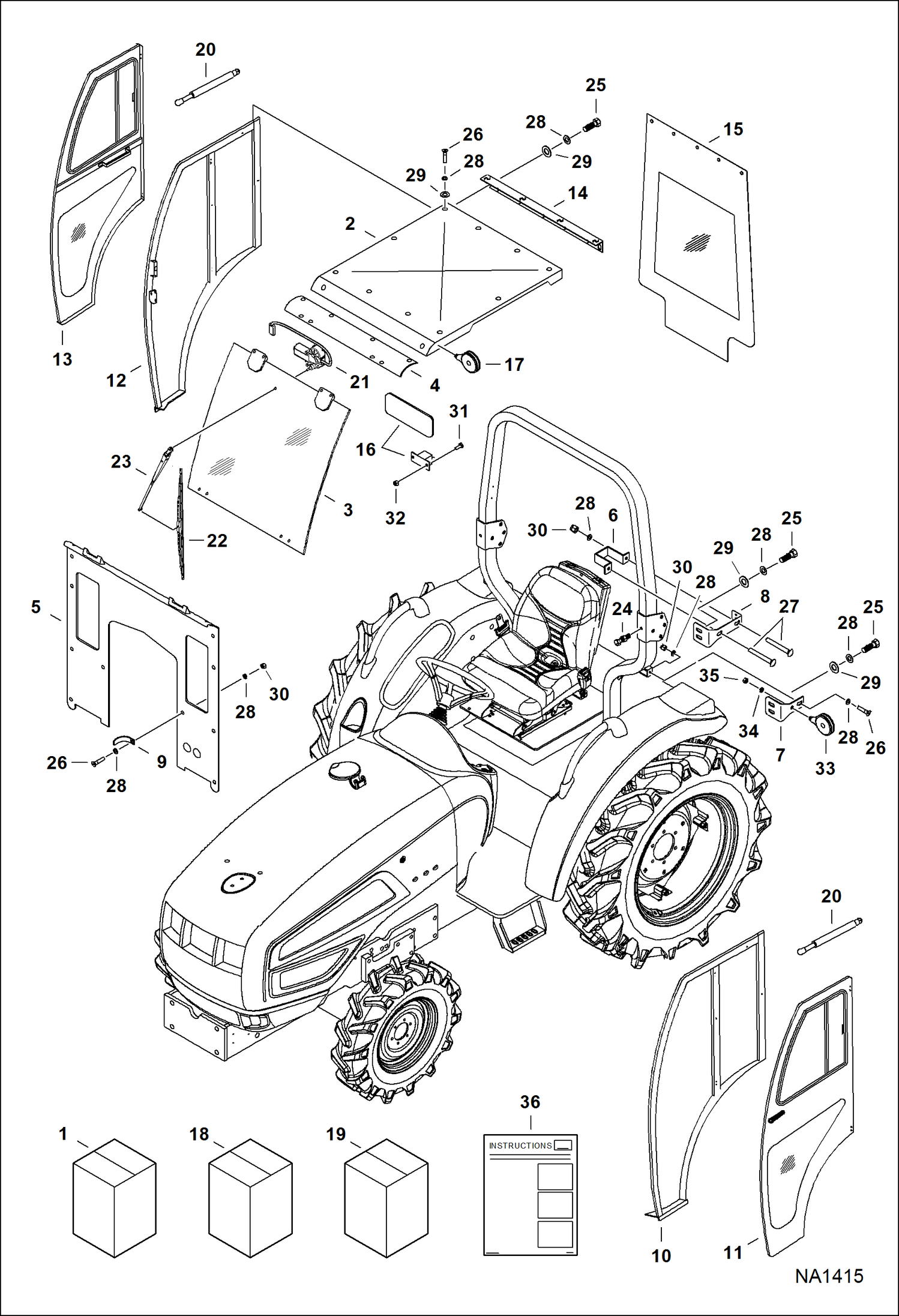

Запчасти Bobcat CT225 CAB KIT (W/Single Rear Window) ACCESSORIES & OPTIONS

1

KIT, CAB W/SOFT REAR CURTAIN NLA - Ref 2-32 & 36 - Was 6988447 - A

2

7010071

PANEL, CAB TOP

3

7010072

WINDOW, CAB FRONT

4

7010073

SUPPORT, WINDOW

5

7010074

COWL assy

6

7010075

BRACKET, ROPS

7

7010076

BRACKET, MOUNT REAR

8

7010077

MOUNT, ROPS

9

7010078

MOUNT, FRONT

10

7010079

FRAME, CAB - LH assy

11

7010083

DOOR, CAB ASSY - LH

12

7010080

FRAME, CAB - RH assy

13

7010084

DOOR, CAB ASSY - RH

14

7010082

PANEL, REAR top

15

7010081

PANEL, REAR soft curtain

16

7010085

MIRROR

17

7010086

LIGHT, FLASHER

18

KIT, WIRING FLASHER NLA - Was 7010099 - A

19

7010087

KIT, HARDWARE

20

7010094

2 GAS SPRING

21

7010109

MOTOR, WIPER

22

7010110

BLADE, WIPER

23

7010111

ARM, WIPER

24

1CM1250

BOLT

25

25G516

SCREW

26

25G512

SCREW

27

37C516

BOLT

28

25E15

WASHER

29

WASHER, PLASTIC NLA

30

95D5

NUT

31

88G1010

SCREW

32

51D10

NUT

33

FLASHER existing part - not in kit

34

WASHER existing part - not in kit

35

NUT existing part - not in kit

36

6987423

INSTRUCTIONS
