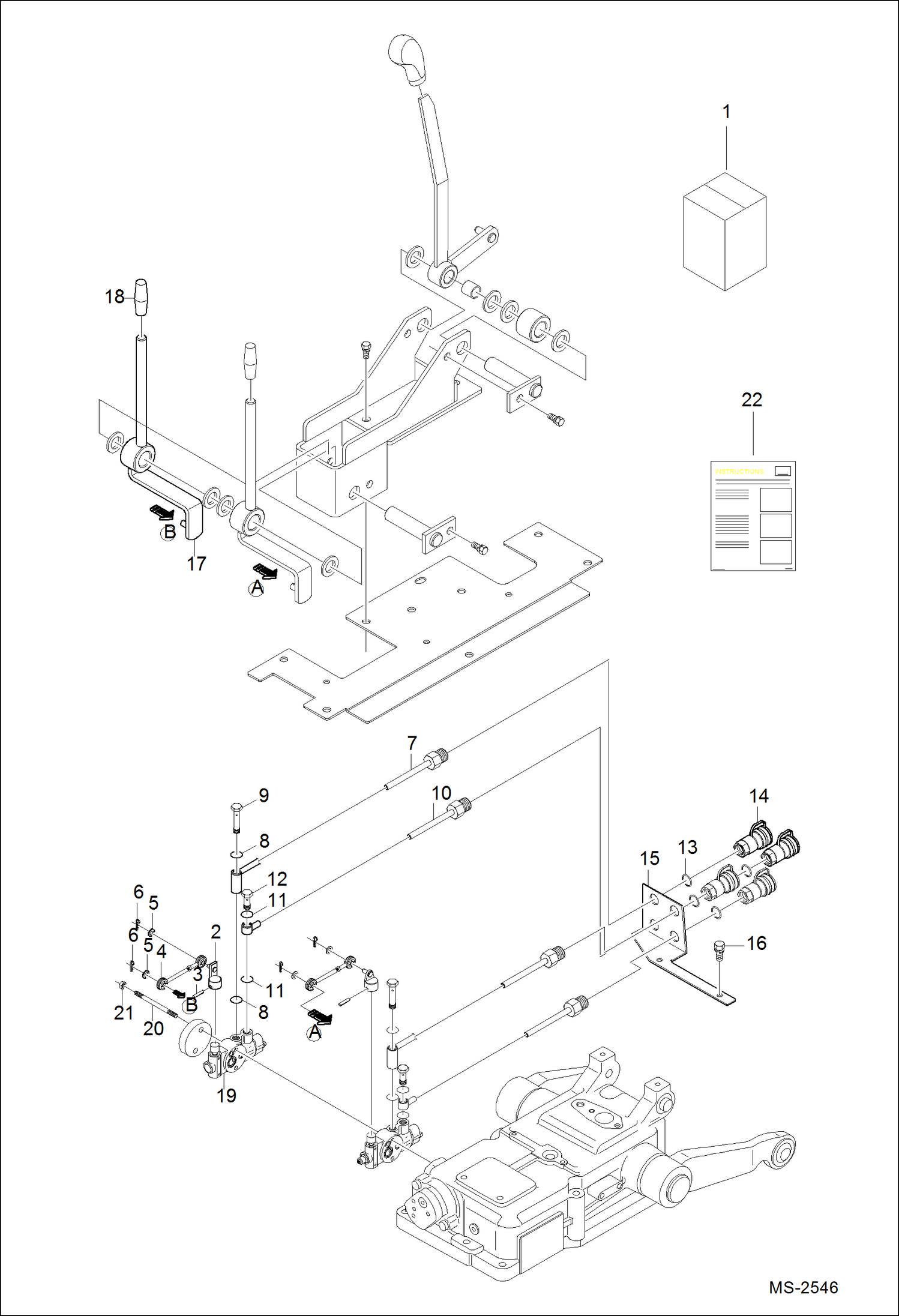

Запчасти Bobcat CT225 AUXILIARY HYDRAULICS KIT (Second) ACCESSORIES & OPTIONS

1

7150494

CONTROLLER, DOUBLE ACTING ASSY

2

6697405

LEVER DOUBLE ACTING

3

6694197

PIN SPRING

4

6697565

ROD

5

6697774

WASHER

6

6697496

PIN SNAP Was 6696374 - A

7

7000263

TUBE, HYD C Use W/7000307 snap ring

8

6694137

O-RING

9

6697070

BOLT JOINT

10

7000264

TUBE, HYD D Use W/7000307 snap ring

11

6694137

O-RING

12

6695562

BOLT JOINT

13

7000307

RING, SNAP Use W/7000263, & 7000264 tube

14

6697652

SOCKET, COUPLER

15

6698008

SUPPORT, SOCKET Was 6697703 - D

16

6693978

BOLT

17

6697419

LEVER, DOUBLE RH

18

6696053

HANDLE

19

6697827

VALVE, CONTROL Was 6697768 - A

20

6697681

STUD M10*120MM

21

6697461

NUT, LOCK

22

6697731

TUBELINE, HYD Use W/6694128 washer seal

23

6697732

TUBE D HYD Use W/6694128 washer seal

24

6694128

WASHER SEAL Use W/6694131 & 6694132 tube

25

6986756

INSTRUCTIONS
